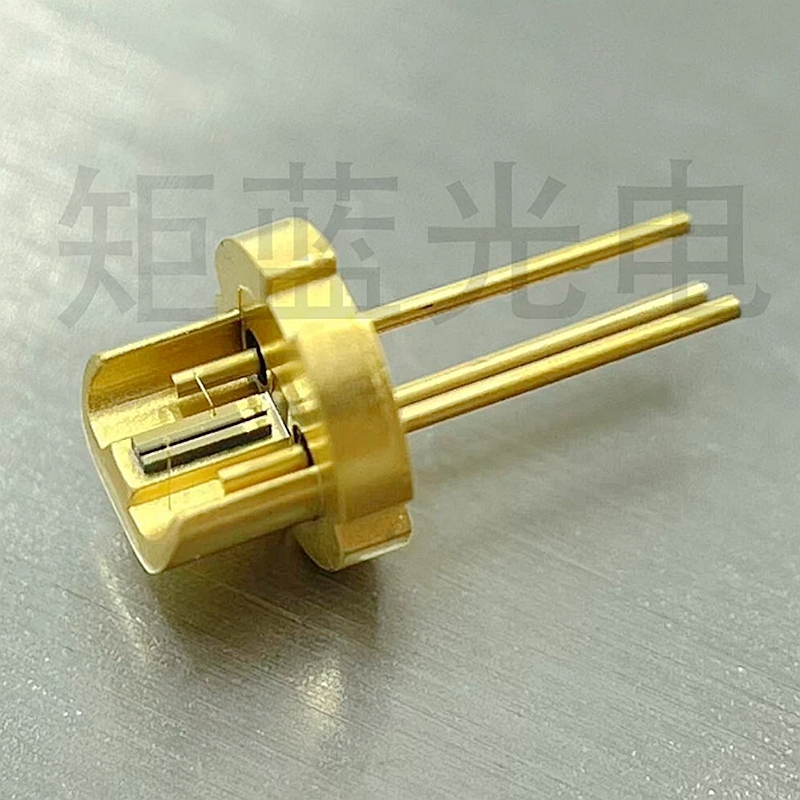

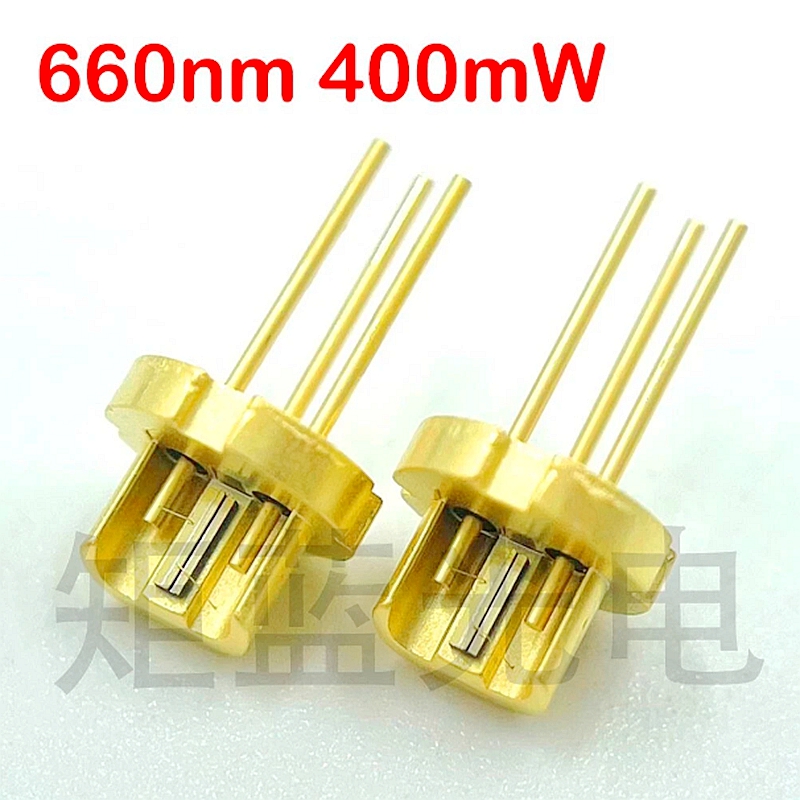

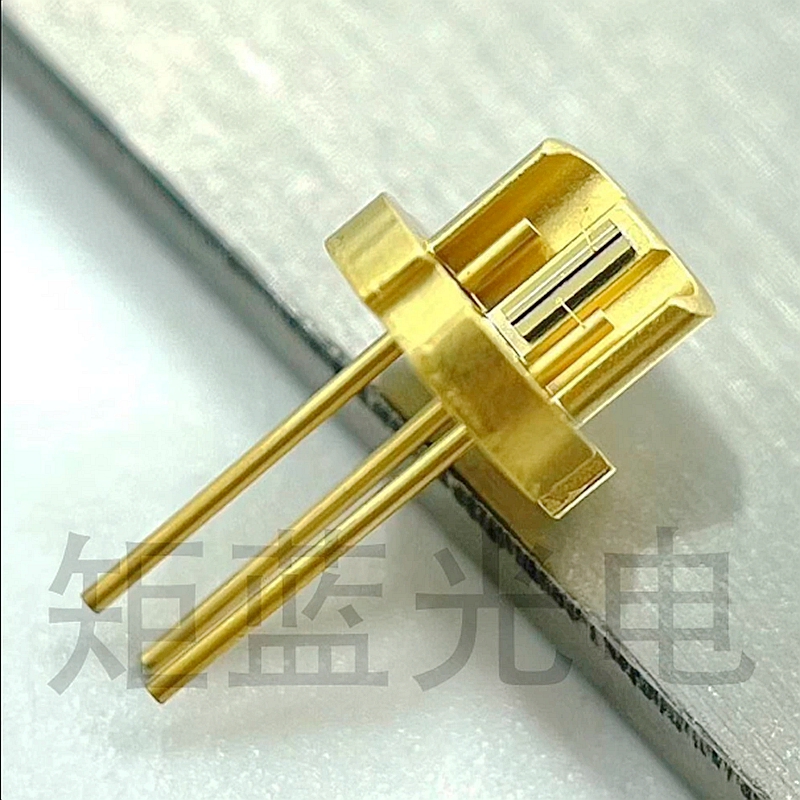

Mitsubishi ML101U29-25 150mW-400mW 5.6mm 660nm Red Laser Diode LD

Download the datasheet

Mitsubishi ML101U29-25 150mW-400mW 5.6mm 660nm Red Laser Diode LD datasheet

ML1XX29 is a high-power, high-efficient AlGaInP semiconductor laser which provides a stable, single transverse mode oscillation with emission wavelength of 660nm and standard pulse light output of 400mW. ML1XX29 has a real-index-waveguide which improves the slope efficiency (reduction of the operating current) and the astigmatic distance. Also, ML1XX29 has a window-mirror-facet which improves the maximum output power. That leads to highly reliable and high-power operation at 75 °C.

Product brand: MITSUBISHI
Product model: ML101U29-25
Wavelength: 660nm
Output power: 150mW CW.peak 400mW
High efficiency, stable performance, long working life, MITSUBISHI new original packaging
Working current: 205mA
Threshold current: 85mA
Working voltage: 2.35V

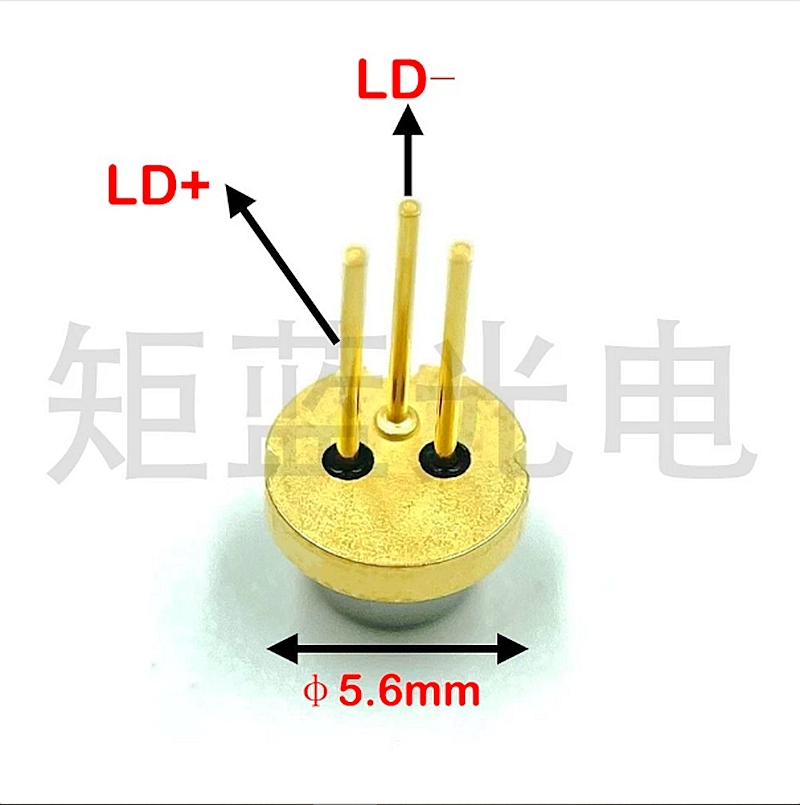

Package form: TO-18
Working temperature: +10~+40 degrees Celsius
Storage temperature: -40~+100 degrees Celsius
Working life: more than 10000 hours
