Description
808nm Vcsel chip for diode laser array
- DIY Supplies: ELECTRICAL
- Certification: CE
- Condition: New
- Warranty: 1 Year,
- After-sales Service Provided: Video technical support, Online support
- Spare Parts Type: vcsel diode laser stack
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Brand Name: oriental
- Key Selling Points: High Safety Level
- Showroom Location: Russia
- Applicable Industries: Other
- Weight (KG): 1 KG
- Laser Bar: vcsel laser bar
- Per Bar Power: 65w/chip
- Cooling system: Micro Channel Cooling
- Spot Size: 12.7*12.7mm
- Center wavelength: 808 -8
- Water flow: >3.0L/min
- Drift Coefficients: 0.07nm/℃
- Threshold current: Threshold current
Vcsel Diode Laser Details Usage
1. Hair removal machine
2. Laser power from 300W-1200W
3. Other customized power or design

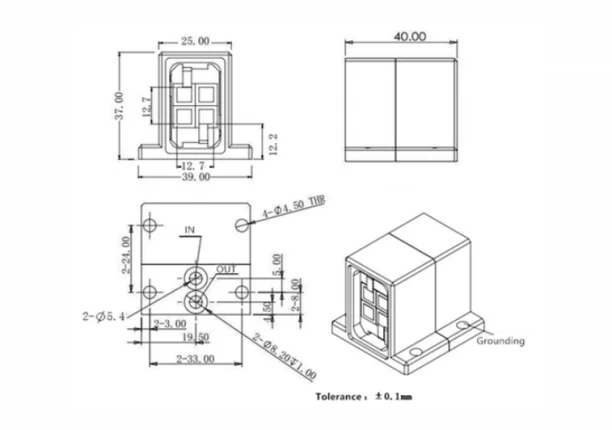

Product Paramenters
|
Model No.
|
OL-VSL-1004
|
|
Peak power
|
65w/chip
|
|
Spot size
|
12.7×12.7mm
|
|
Center wavelength
|
808+-8
|
|
Drift Coefficients
|
0.07nm/℃
|
|
Threshold current
|
10A
|
|
Max.Current
|
65A
|
|
Max.Working voltage
|
2.1V/chip
|
|
Repetition frequency
|
1-10Hz
|
|
Max. Duty cycle
|
60%
|
|
Max.Pulse width
|
400ms
|
|
Environment temperature
|
15-35℃
|
|
Best water temperature
|
20-25℃
|
|
Storage temperature
|
-20-60℃
|
|
Water flow
|
>3.0L/min
|
|
Hydraulic pressure
|
0.4-0.6MPa
|
|
Water requirement
|
Pure water or deionized water.Conductivity 10us/cm.resistivity ≥1MΩ*cm.Particulate matter≤20um.
|
Our Advantages
1. Higher laser power
2. Smaller divergence angel and more uniform light spot
3. Lower drift coefficient and narrower spectral width
4. Symmetrical spot , easy to shape
5. Higher stability and reliability
6. Large water water channel for heat dissipation,high cooling ability
7. Fully sealed nitrogen filling treatment, strong environment adaptability.
2. Smaller divergence angel and more uniform light spot
3. Lower drift coefficient and narrower spectral width
4. Symmetrical spot , easy to shape
5. Higher stability and reliability
6. Large water water channel for heat dissipation,high cooling ability
7. Fully sealed nitrogen filling treatment, strong environment adaptability.

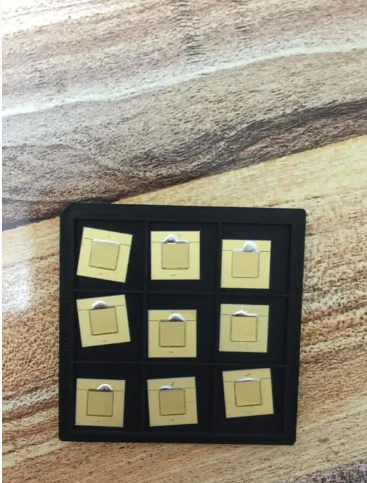

The chip in the black box is intact

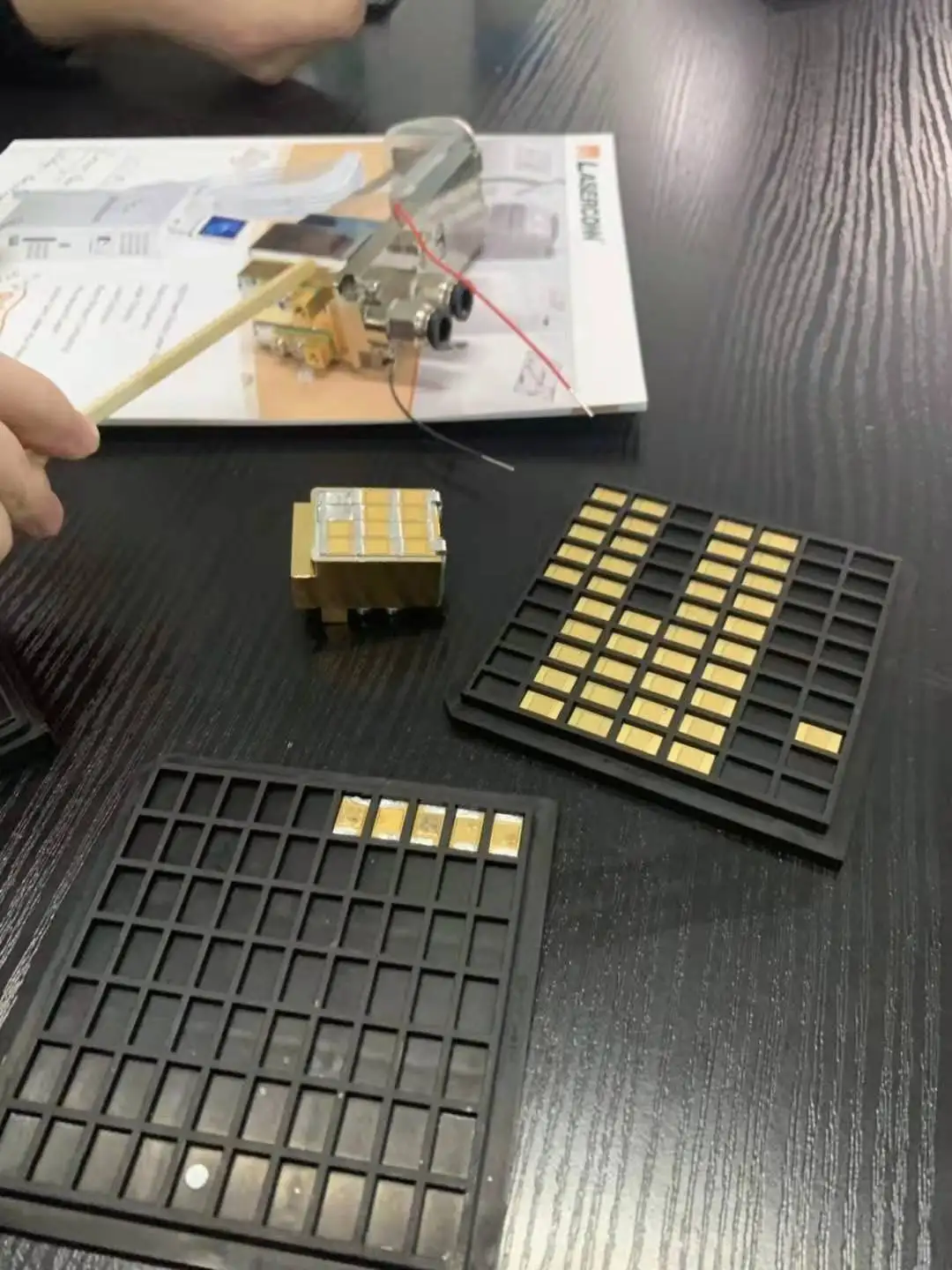

We have this raw material and production strength.
We have the ability to repair
The picture is that the customer’s item is broken and sent to us for repair.
After repair
It can emit light normally.
Maintenance Service
FAQ
|
Warranty
|
1 year.
|
|
During the period, if any problems of machine, please contact us. We will do our best at the earliest time.
|
|
|
Payment
|
T/T, Western Union, MoneyGram, PayPal etc.
|
|
100% in advance,please pay transfer fee in your side.
|
|
|
Delivery
|
By express (DHL, EMS, UPS, TNT, Fedex etc.), by air express to airport, by sea.
|
|
Delivery time is 3- 7 days after payment.
|
|
|
Certificate
|
Our products have acquired CE Certificate and ISO 9001 Certificate.
|
|
OEM & ODM
|
We are professional diode laser beauty machine manufacturer.
|
|
We can offer OEM&ODM service.
|
