Description

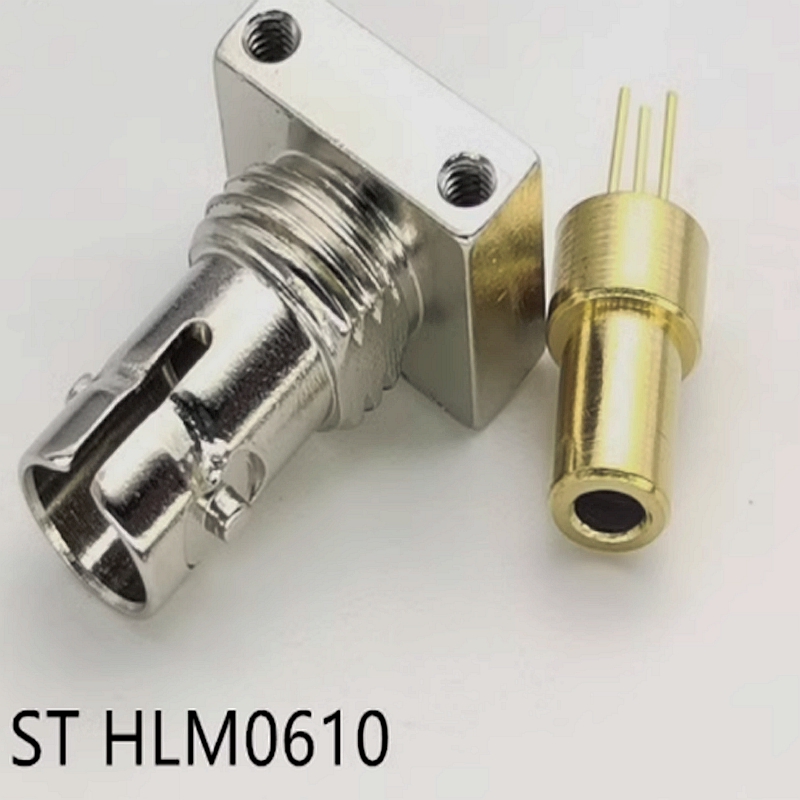

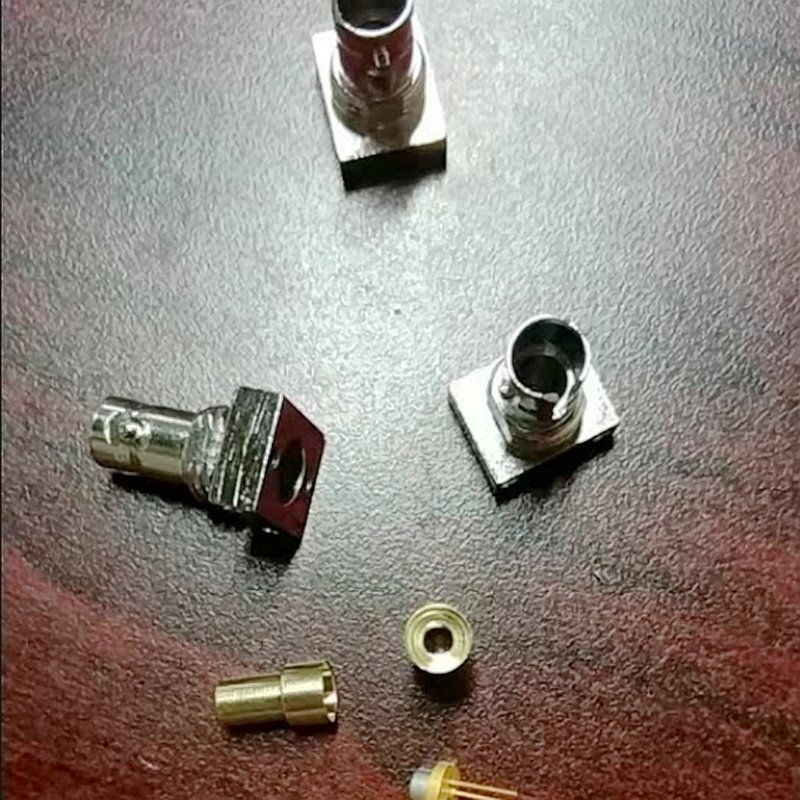

650nm 658nm Red Laser Diode LD 5.6mm ST TO56 for MOOG CT Laser Box HLM0610

Specifications:

Wavelength:         658nm

Light Output:         80mW     CW    mW

Package Type:       TO-18(Φ5.6mm) TO56

Absolute Maximum Ratings(Tc=25℃)

Parameter	Symbols	Ratings	Units
Optical Output	Po	80	mW
Reverse Voltage	Vr	2	V
Photo diode	Vr(PD)	20	V
Operating Temperature	Top	– 10 ～ 40	℃
Storage Temperature	Tstg	– 20 ～ 85	℃

Electrical and Optical Characteristics(Tc=25℃)

Parameter	Symbols	Min	Typ.	Max	Unit.
Threshold Current	Ith		65		mA
Operating Current	Iop		150		mA
Operating Voltage	Vop		2.4		Volt
Slope Efficiency	η		0.9		mW/mA
Monitor Current	Im		–		mA
Beam Divergence	θ//		9.5		deg.
(FWHM)	θ⊥		17		deg.
Central wavelength	λ		658		nm
