Description
- Brand Name: ReYeBu
- Type: Optical-Electronics Sensor
- Output: Analog Sensor
- is_customized: Yes
- Material: Mixture
- Theory: Optical Sensor
- Model Number: Photoresistor sensor module
- Usage: Light intensity sensor
- Working voltage: 3.3V-5V
- Small board PCB size: 3.2cm x 1.4cm

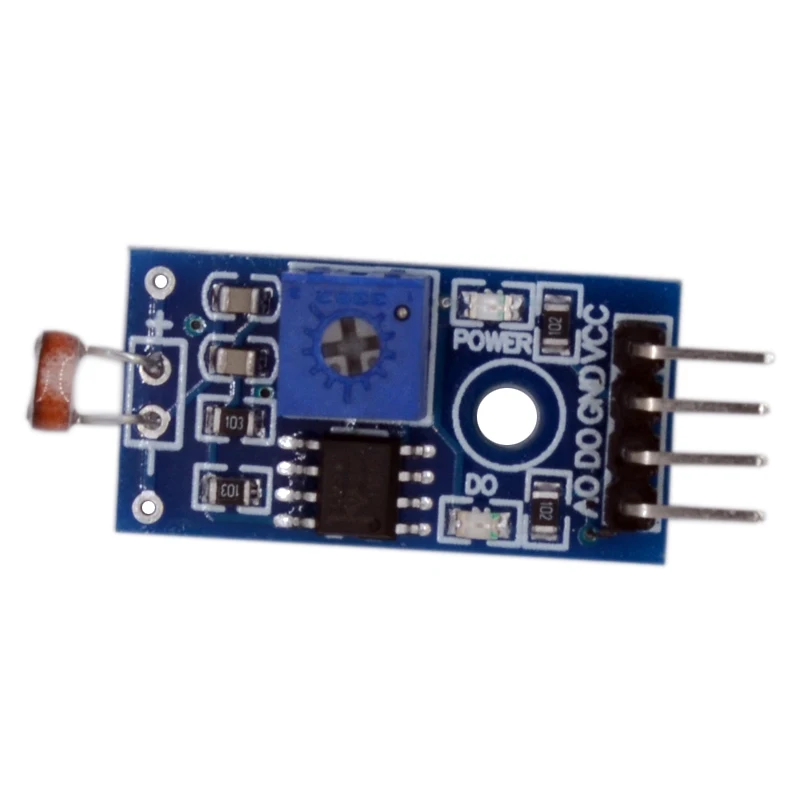

4-pin Light Detection Photodiode Photoresist Sensor Module L401
Usage:
Light intensity detection, light intensity sensor, intelligent car search module
Module Features:
1, The use of sensitive photosensitive resistance sensor
2. Comparator output, clean signal, good waveform, strong driving ability, over 15mA.
3, With adjustable potentiometer adjustable light intensity
4, Working voltage 3.3V-5V
5, Output form: DO digital switching output (0 and 1) and AO analog voltage output
6, With a fixed bolt hole, easy to install
7, Small board PCB size: 3.2cm x 1.4cm
8, Using a wide voltage LM393 comparator
Module Instructions:
1. The photo-resistor module is most sensitive to ambient light and is generally used to detect the brightness of ambient light, triggering a microcontroller or relay module, etc.
2. When the ambient light brightness of the module does not reach the set threshold, the DO output is high. When the ambient light brightness exceeds the set threshold, the DO output is low;
3, DO output can be directly connected with the microcontroller, through the microcontroller to detect high and low, thus detecting the ambient light brightness changes;
4, DO output can directly drive our shop relay module, which can form a light control switch.
5, small board analog output AO can be connected with the AD module, through the AD conversion, you can obtain a more accurate value of the ambient light intensity;
10 * Photoresistor sensor module
