Description
- Brand Name: Jolooyo
- Certification: NONE
- Origin: CN(Origin)
- Item Type: Stage Lighting Effect
- Model Number: LD-RLD65MPT3-10pcs
Parameter:
Wavelength: 650nm
Light Output: 5mW

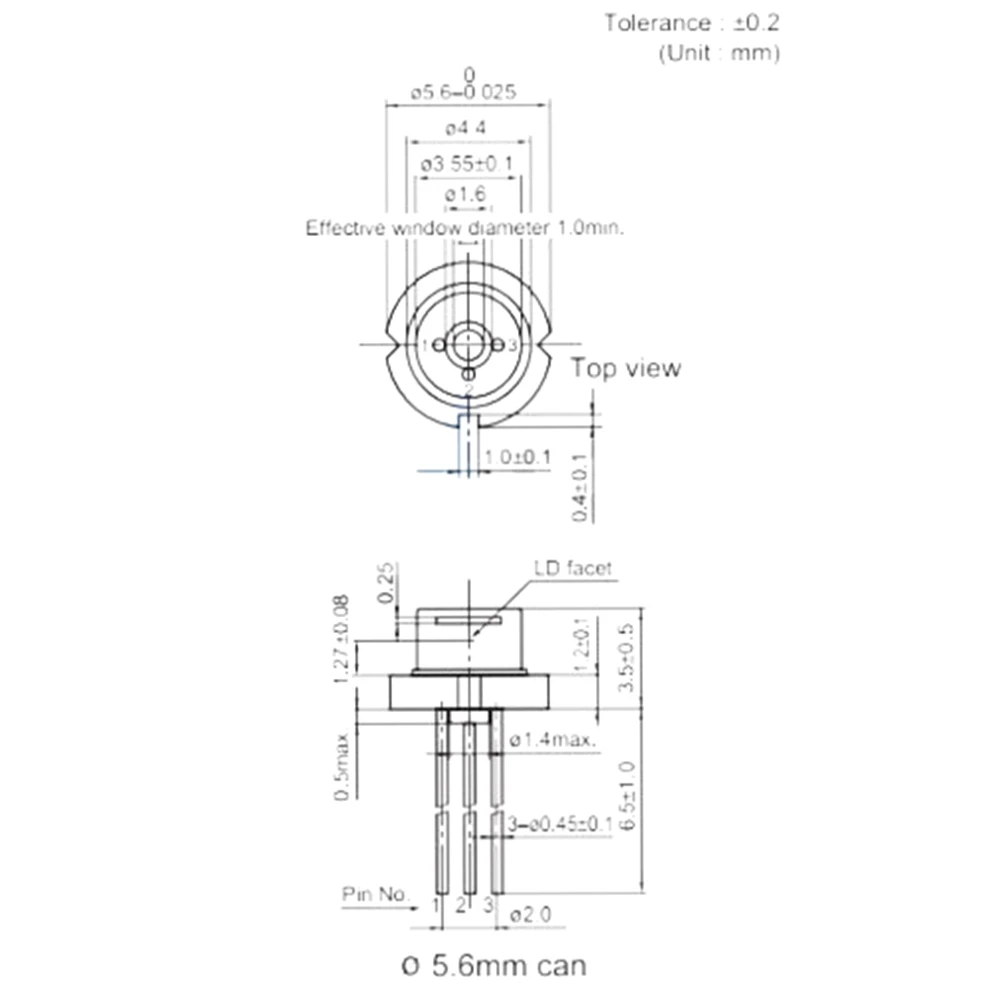

Package Type: TO-18(Φ5.6mm)
Absolute Maximum Ratings(Tc=25℃)
Optical Output Po 5mW
ReverseVoltage Vr 2.2 V
Operating Temperature Top -10~ +50 ℃
Storage Temperature Tstg -15~ +85 ℃
Threshold Current Ith 20mA
Operating Current Iop 30mA
Central wavelength λ 655(±10-15)nm
Notice:
1. The laser tube needs to be used with the drive circuit and cannot directly supply voltage or current
2. All lasers must be lit up with heat dissipation
3. To prevent static electricity from damaging the laser chip during assembly, please wear an electrostatic wristband
4. The welding adopts electrostatic electric iron, the welding temperature is less than 300 degrees, and the welding time is less than 5 seconds.
Package:

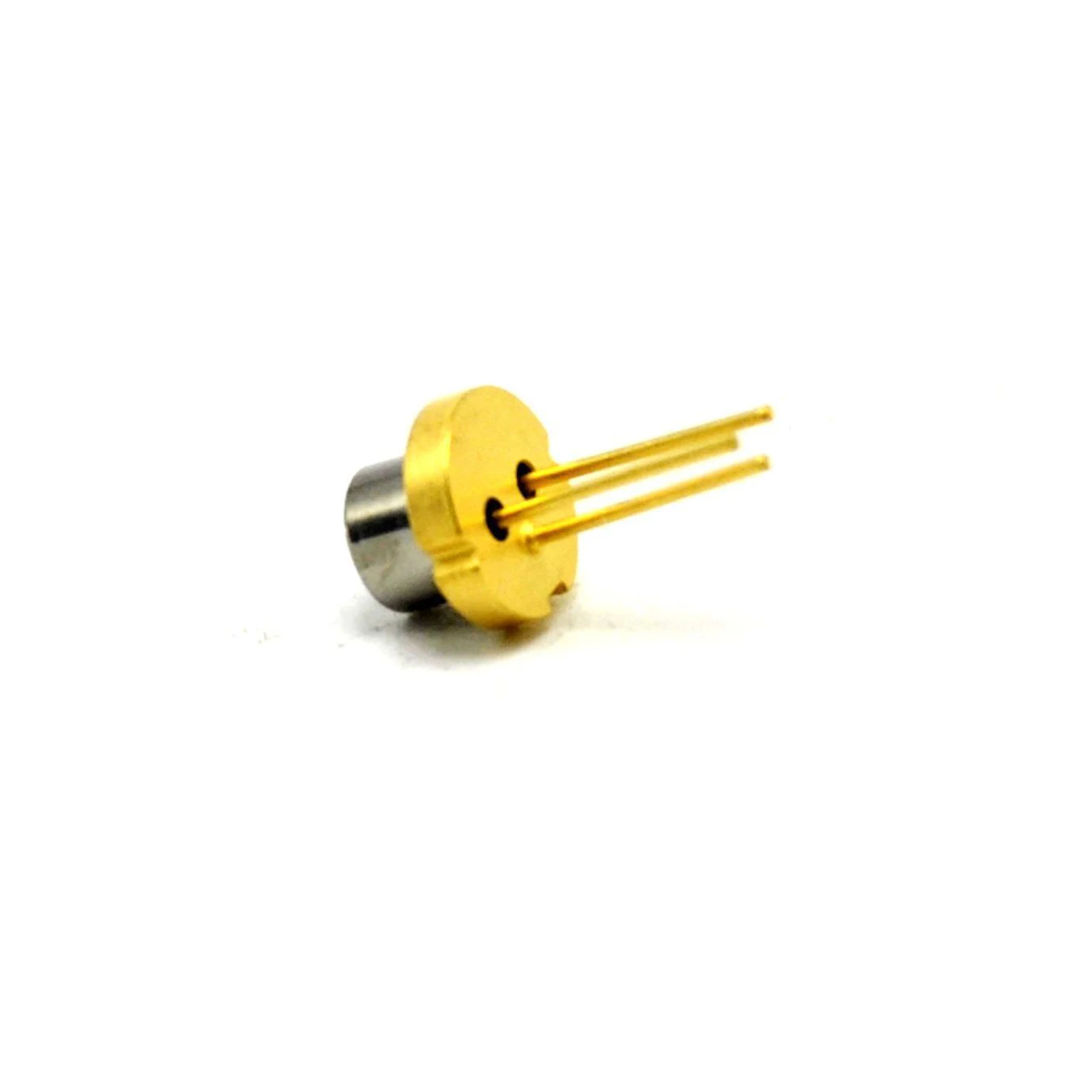

10pcs RLD65MPT3 Red Laser Diode 650nm 5mw 5.6mm M Pin Type LD TO-18
