Description
- Brand Name: HAILANGNIAO
- Origin: Mainland China
- Usage: Position Sensor
- Material: Mixture
- Type: Optical-Electronics Sensor
- Output: Switching Transducer
- Theory: Optical Sensor
- Model Number: HC-SR501
- is_customized: Yes
Dimension: 3.2cm x 2.4cm x 1.8cm (approx)
Infrared sensor with control circuit board
The sensitivity and holding time can be adjusted
Working Voltage Range: DC 4.5V- 20V
Current drain:<60uA
Voltage Output: High/Low level signal:3.3V TTL output
Detection distance: 3–7M(can be adjusted)

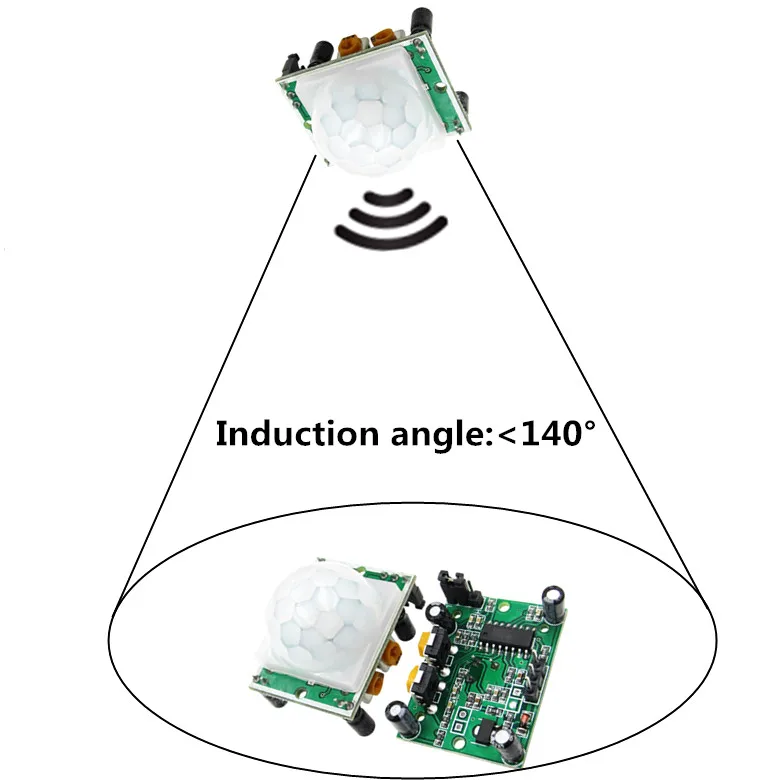

Detection range: <140
Delay time: 5-200S(can be adjusted, default 5s +-3%)
Blockade time: 2.5 S (default)
Trigger: L: Non-repeatable trigger H: Repeat Trigger (default)
Work temperature:-20-+80C
Trigger Method: L unrepeatable trigger / H repeatable trigger
