20PCS, 5mm NPN Phototransistor SGPT524C, Photosensor,Photosensitive receiving transistor

$3.96

282 in stock

SKU: 1005003243890940 Category:

Description

  • Origin: Mainland China
  • Condition: New
  • Model Number: SGPT524C
  • Package Type: Throught Hole
  • Range of Spectral Bandwidth: 400—1100 nm
  • Wavelength of Peak Sensitivity: 940 nm
  • Collector Emitter Breakdown Voltage: >30 V
  • Emitter Collector Breakdown Voltage: >6 V
  • Collector Dark Current: <100 nA
  • Collector Emitter Saturation Voltage: <=0.2 V
  • On State Collector Current: 2.0 mA
  • Rise/Fall Time: 15/15 μS
  • DC Current Amplification Factor: 1000—1800

English is the original language, other languages are automatically translated, there may be translation errors

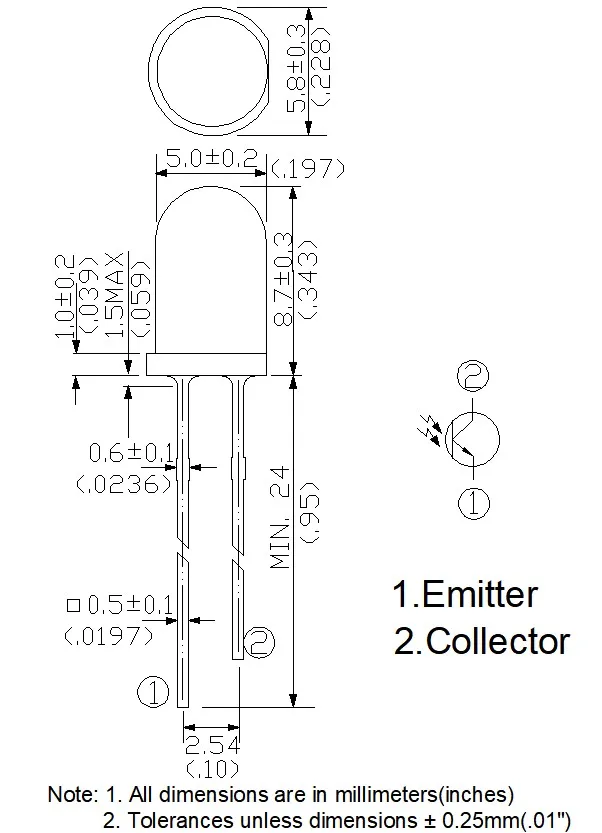

5mm(0.197") NPN Phototransistor SGPT524C

Colour: Transparent

Range of Spectral Bandwidth:400—1100 nm

Wavelength of Peak Sensitivity: 940 nm

Collector Emitter Breakdown Voltage: >30 V

Emitter Collector Breakdown Voltage: >6 V

Collector Dark Current: <100 nA

Collector Emitter Saturation Voltage: <=0.2 V

On State Collector Current: 2.0 mA

Rise/Fall Time: 15/15 μS


For detailed product parameters, please check the specifications and download the specifications from the company's website

Factory direct sales, batch purchase customers can contact the seller to arrange production

1000 pcs/bag, The whole package purchase is more favorable

Similar products:

SGPT524A: Suitable for receiving 940nm and above infrared rays

SGPT524B: Suitable for receiving 850nm and above infrared rays

SGPT524C: Suitable for visible light receiving, also can receive infrared rays

Difference between Photodiode and Phototransistor

A.  Abbreviation:  Photodiode—PD /  Phototransistor—PT

B.  PIN Name: Photodiode—Anode and Cathode  / Phototransistor—Emitter and Collector

C.  Chip Structure: Photodiode—PN  / Phototransistor—NPN(or PNP)

D.  Response speed:Photodiode—fast /Phototransistor—slow

E.  Amplification characteristics: Photodiode—No / Phototransistor—Yes

F.  Output Linearity:   Photodiode—Good / Phototransistor—Bad

G.  Circuit symbol:Photodiode

Phototransistor

Round Lens NPN Phototransistor

Flat Lens NPN Phototransistor

Side Looking NPN Phototransistor

SMD NPN Phototransistor

Bicrystal NPN Phototransistor

Other NPN Phototransistor
