Description
- Brand Name: Snaterm
- Origin: Mainland China
- Model Number: 10A 15A 20A 30A DC Diode connector
- Rated voltage: TUV 1000 DC
- Contact material: Copper, tin plated
- Contact resistance: Less than 0.5 m ohm
- Degree of protection: IP67
- Suitable for cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm2;)

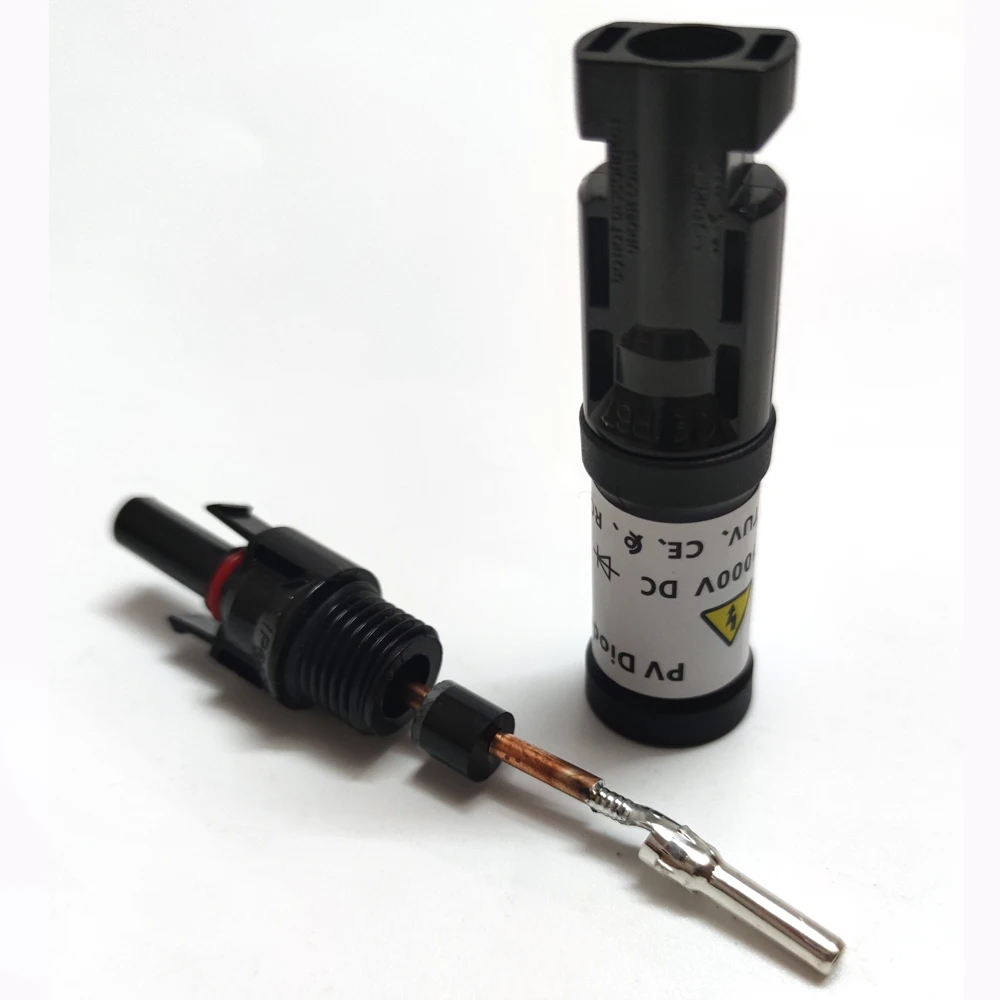

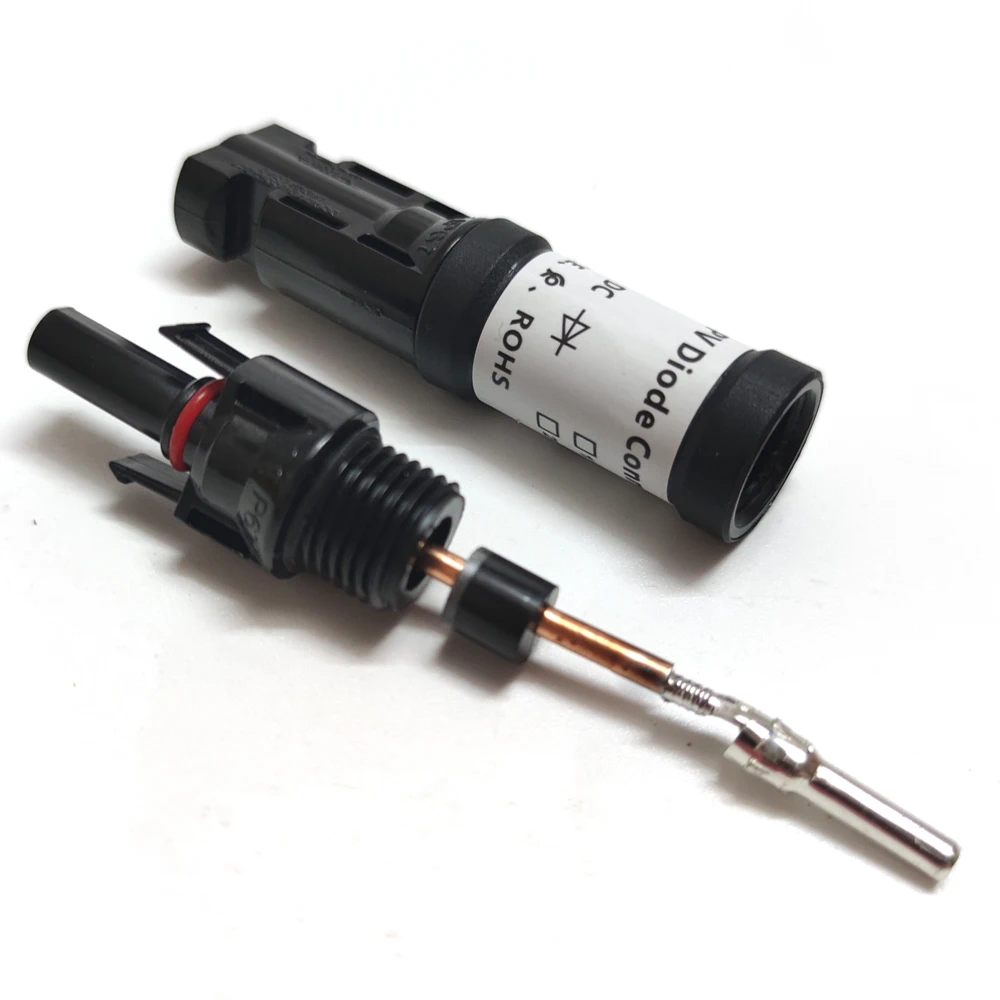

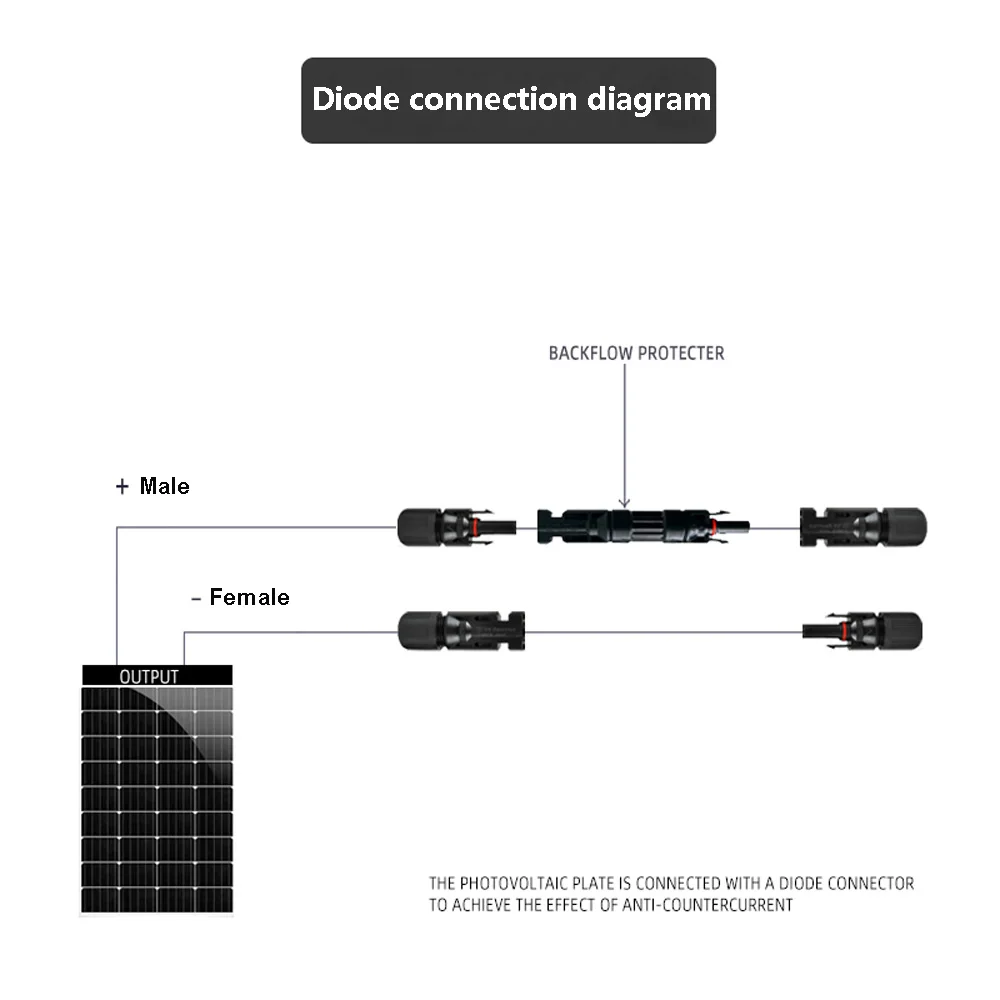

New Selling 10A 15A 20A 30A DC Diode Solar Plug Connector For PV System Solar panel Parallel Connection Antireflux protection
Rated voltage: 1000 V
Rated impulse voltage: 1000 V
Rated current: 24A – 14 AWG (2.5mm⊃2;), 30A – 12 & 10 AWG (4mm⊃2; & 6mm ⊃2;)
Test voltage: 6 kV (50 Hz)
Protection grade: IP67
Insulation material: PC/PA
Contact material: Copper, tin plated
Operating temperature: -40°C ~ +90°C
Safety class: II
Flame class: UL94-V0
Contact resistance: ≤5mΩ
Insertion / Withdrawal force: ≤50N / ≥50N
Suitable for cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm⊃2;)
Locking system: Snap-in
Rated voltage: 1000 V
Rated impulse voltage: 1000 V
Rated current: 24A – 14 AWG (2.5mm⊃2;), 30A – 12 & 10 AWG (4mm⊃2; & 6mm ⊃2;)
Test voltage: 6 kV (50 Hz)
Protection grade: IP67
Insulation material: PC/PA
Contact material: Copper, silver-plated
Operating temperature: -40°C ~ +90°C
Safety class: II
Flame class: UL94-V0
Contact resistance: ≤5mΩ
Insertion / Withdrawal force: ≤50N / ≥50N
Suitable for cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm⊃2;)
Locking system: Snap-in
