Feature:

Only need to be connected to the positive pole of the circuit in series, no need to connect the negative pole.

No input voltage limit. (Guaranteed that the reverse voltage is lower than 40V)

300A high current MOS tube, one tube can pass 40A current, two tubes can pass 60A current

1.1 milliohm on-resistance, low loss and low heat generation

Fast response to reverse polarity conditions within 2US, input and output are equivalent to diodes. It is detected that the output voltage is greater than the input and the output is turned off immediately. The detection value is at the millivolt level, and the response speed is very fast.

-40-125 degrees working environment temperature

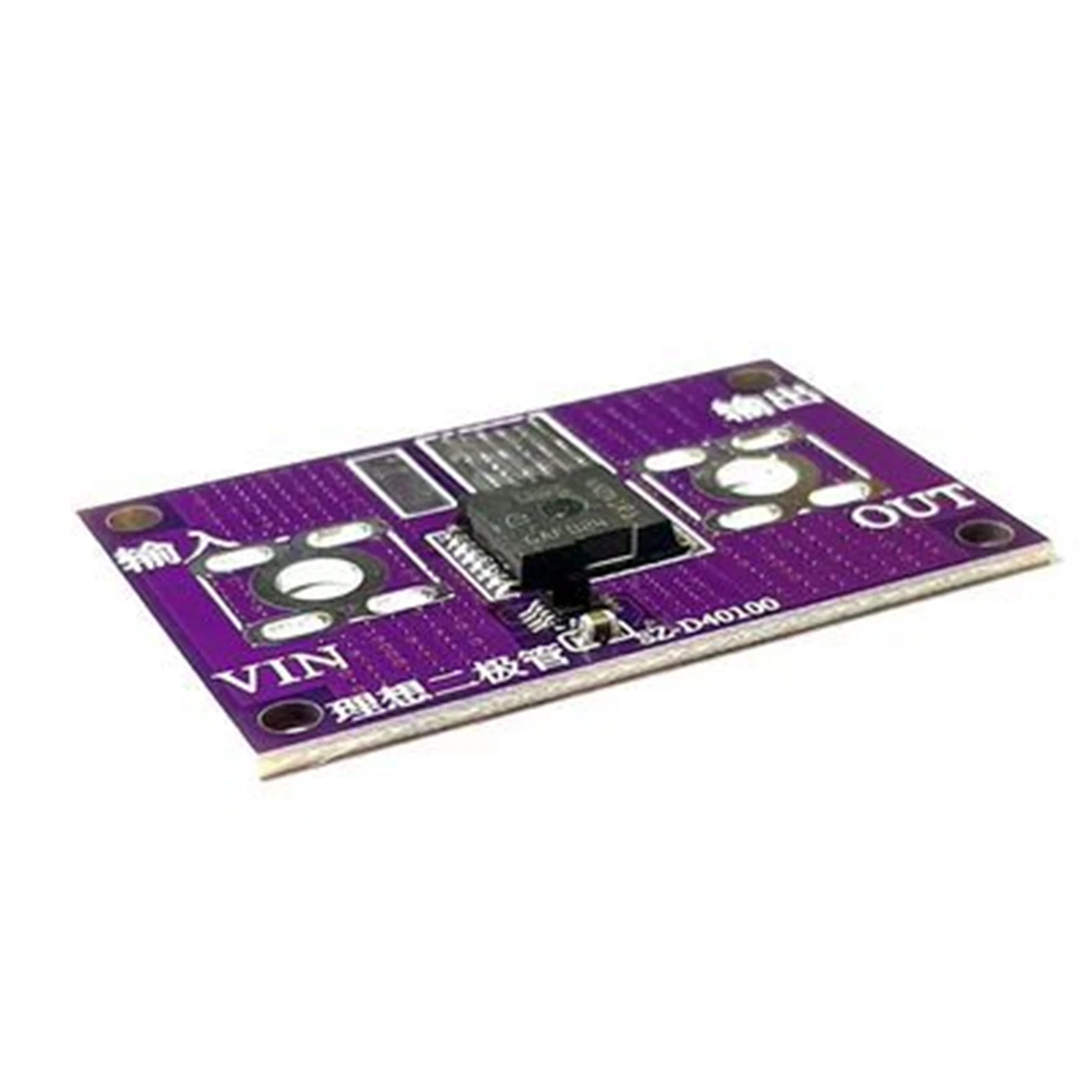

Circuit board size: 50*34mm
Copper Foil Thickness: 1.5oz

use:

Replace ordinary high-current diodes, batteries, solar panels, anti-backflow and anti-reverse. It is ideal for anti-reverse connection when connected in series with the input end of the power supply.


Precautions:

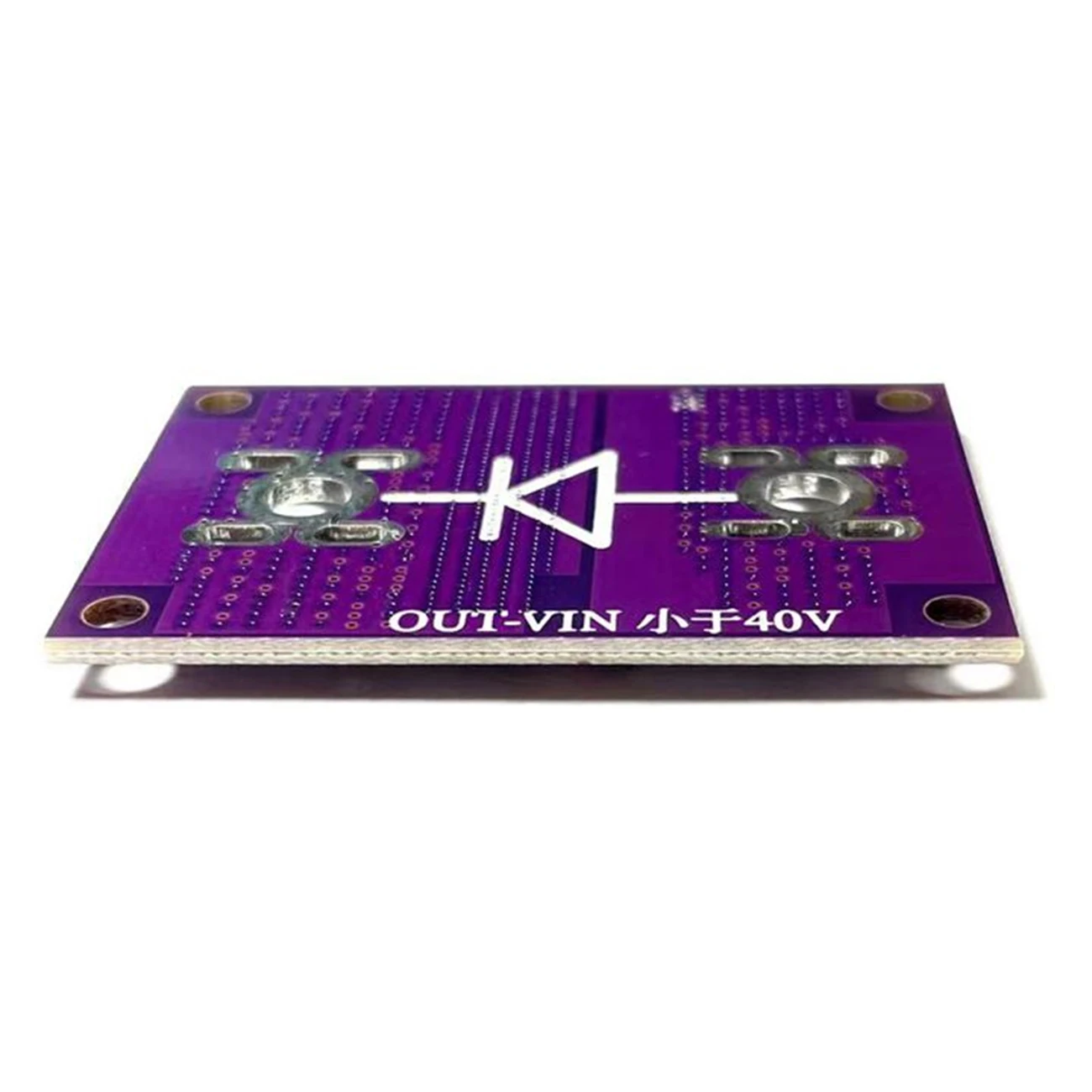

There is no limit to the input voltage, but there is a reverse voltage requirement, and the reverse voltage is lower than 40V. The output voltage can not be higher than the input voltage 40V, for example: the input is connected to 24V power supply, the output is connected to the battery, can be connected to 12V, 24V 36V 48V 60V battery, can not be connected to more than 72V battery, 72V output – 24V input = 48V. Reverse voltage higher than 40V.

Without terminals, wires under 6 square meters can be soldered, and those with terminals can also be soldered from the bottom
