5-75V High current ideal diode solar energy anti-backcharging backcurrent protection forward high end low resistance

$14.21$16.51

Clear
SKU: 4001089228543 Category:

Description

  • Origin: CN(Origin)
modname=ckeditor

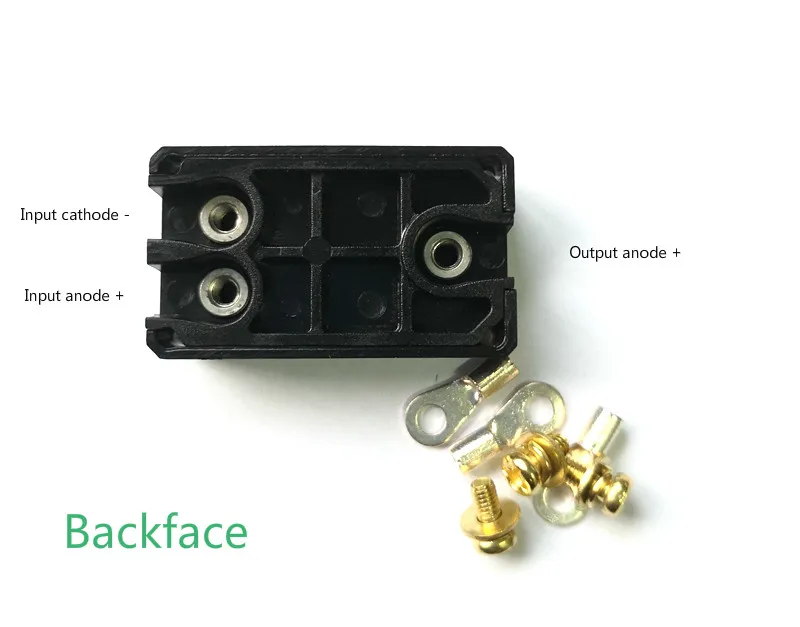

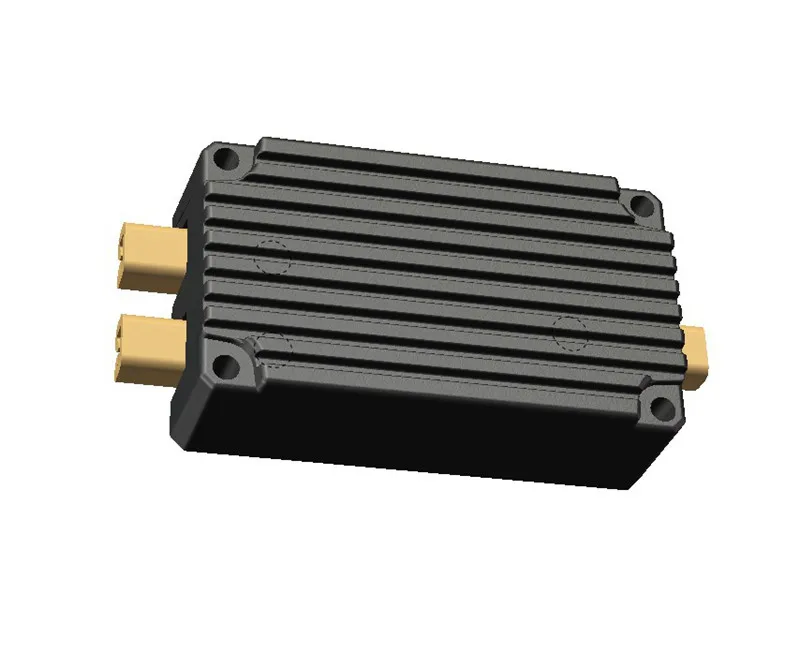

The shell comes in yellow and black, and base plate color is shipped at random. If you need to specify the color, please note or contact customer service when placing the order. thank you



Module operating voltage: 5-75v

Conduction pressure drop: 0.02v

Standby current: about 0.0004A

The board can be loaded for a long period of time: 25A

Instantaneous starting current: 50A



Small volume limits heat dissipation, under natural conditions without heat sink room temperature 30 degrees measured below data

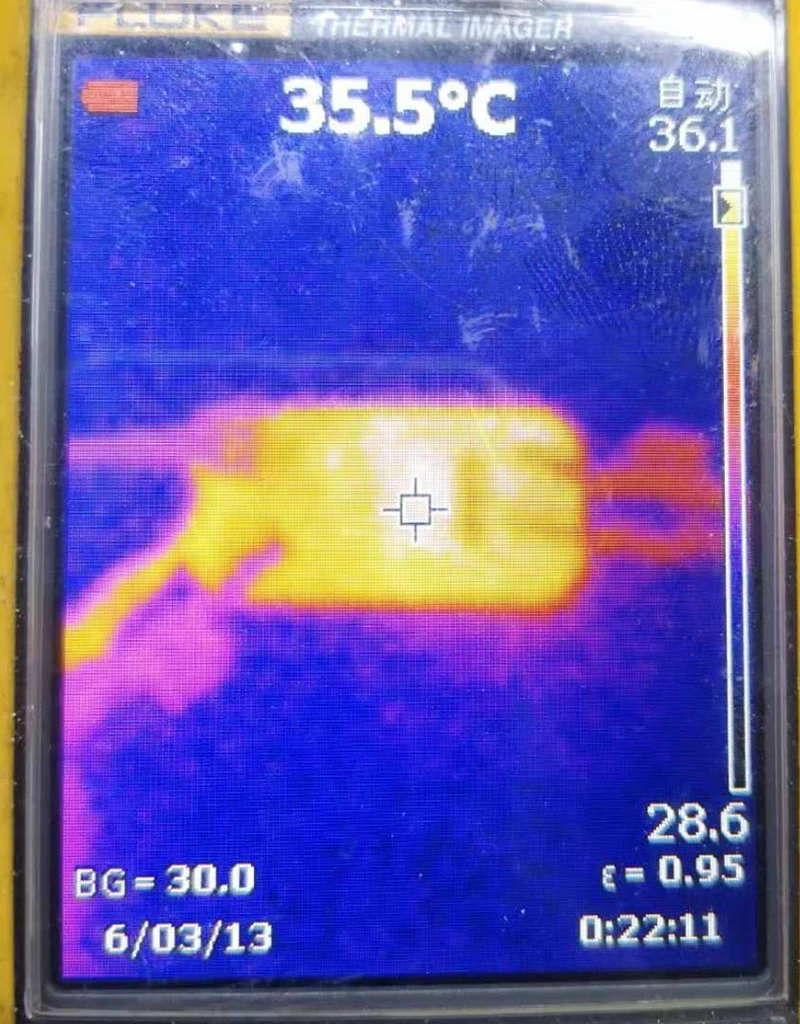

Operating voltage 20V current 13.5A continuous half hour thermal imaging shows maximum temperature 41 degrees.

Operating voltage 48V current 7.5a continuous half hour thermal imaging shows maximum temperature 36 degrees.

Because the hand load meter can only test 380W at most, it cannot continue to test more power.

As a rule of thumb, this plate should have no problem loading 500W 20A under natural cooling conditions.

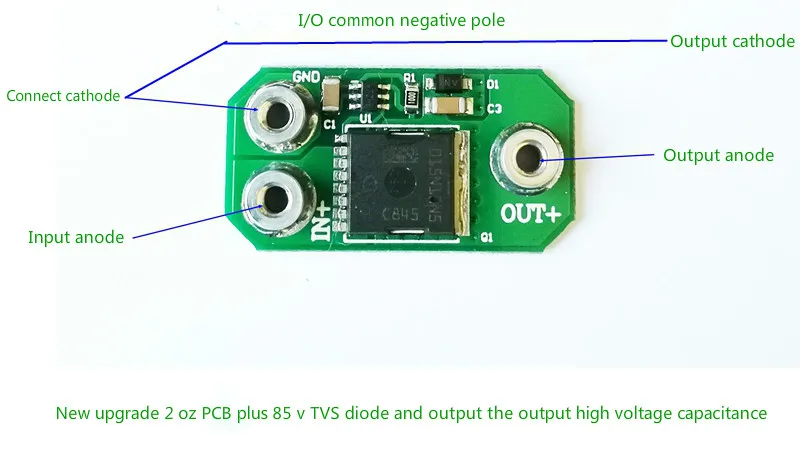

The MOS tube comes in 3 sizes 30V/300A with an internal resistance of 0.4 milliohm. 80V/300A internal resistance 1.2 milliohms. 100 v300a tube is 1.5 m Ω internal resistance. Please choose according to your own circuit. The smaller the internal resistance, the smaller the loss. In general, it is better for the MOS tube voltage to be one times of the circuit voltage. For example, the circuit of 12V is 30V MOS tube.

Size:
