Description
- Brand Name: XIASONGXIN LIGHT
- Type: LED
- Origin: CN(Origin)
- Condition: New
- Max. Forward Current: 2828 led -0.8w-1w
- Max. Forward Voltage: 2828 led -0.8w-1w
- Max. Reverse Current: 2828 led -0.8w-1w
- Model Number: 2828 led -0.8w-1w
- Max. Reverse Voltage: 2828 led -0.8w-1w
- Package Type: Surface Mount
MODEL NAME : GM2CC3ZH2EEM
Origin : INDONESIA

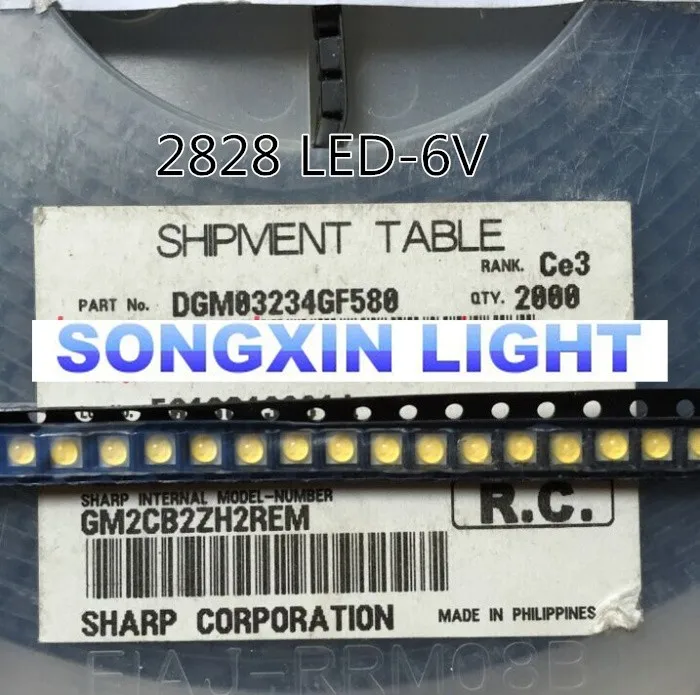

Package Model:Loaded Quantity 2000PCS Per Reel
Forward Current (IF ): 120mA
Pulse Forward Curren t1 (IFp): 135mA
Reverse Current (IR): 10uA
Reverse Voltage (VR): 5V (mA)
Power Dissipation (PD): 826mW
Operatin Tgemperature (Topr): -30 – + 85 °C
Storage Temperature (Tstg): -40 – + 100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C
for 10secs
Hand Soldering:350 °C
for 3secs
Junctio Tnemperature (Tj ): 120°C
Forward Voltage (VF): 6.02-6.88 V( 85mA)
Luminous Flux (LM): 33.11-43.89lm (85mA)
Luminous Intensity ( IV ) : cd (85mA)
Wavelength (nm) : nm 85mA
CIE : x=0.2430 y=0.2110 (85mA)
Color Correlated Temperature (CCT):
CRI : 80
Viewing angle : °

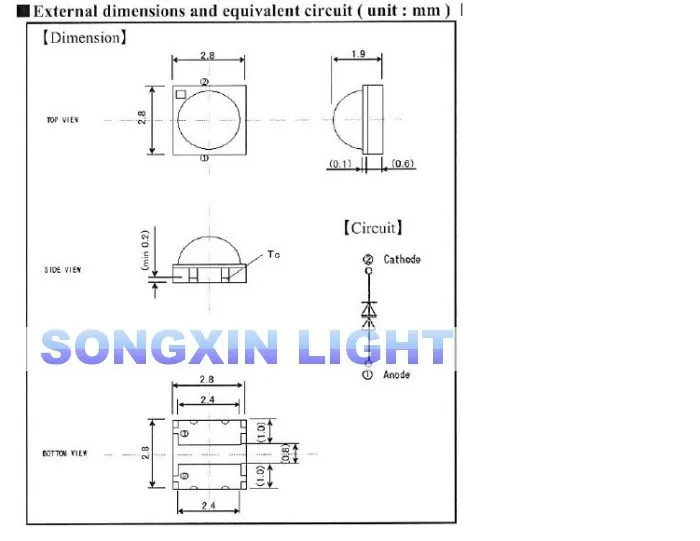

Lead Frame Type LED Package: 2.8×2.8×1.9 mm L×W×H d=mm
