Description
- Brand Name: symbuth
- Origin: Mainland China
- Color Temperature: Nature White(3500-5500K)
- Model Number: 50W LED
- Occasion: HIGHWAY
- Luminous Flux: 2000 Lumens & Above
- Shape: Round&Square
- Average Life (hrs): 20,000
- Length: other
- Led Bulb Type: Car Bulb
- LED Chip Brand: Epistar
- Beam Angle(°): 120°
- LED Chip Model: 3014
- Voltage: DC 12V-14V
- Certification: RoHS,FCC,CE,CCC
- Item Type: LED Bulbs
- Area: 3-8㎡
- Warranty: 3years
- Is Smart Device: NO
- Certification: ce,FCC,ROHS
- Base Type: welding wire
- Power Tolerance: 5%
- Item Type: 50W LED COB Light source
- Square: 100*95mm
- Round: Diameter 108mm
- Power: 50W (about 20W when 12V DC)
- Max Current: 4000mA
- Applicatioins: Car / Work/ Outdoor/ Indoor/ Panel light/Wall/ Video lights/DIY Lamps
- Warranty: 2 years
- Lumens: more than 100LM/W
- Warm white: 2800-3200K
- Cold white: 6000-6500K
- Notice: Please add cooler
- Controller(Battery is not include): Please add CR2025 OR CR2032 Battery.
Note: Package not include Battery
Item Description
Ⅰ.Square size(100*95mm)▼
Board Size:100*95mm
Emitting size:90*85mm
Power:50W(About 20W when work on 12V DC)
Forward Voltage:DC 12-14V
MAX Forward Current(DC):4000mA
Ⅱ.Round size(108mm)▼
Board Diameter:108mm
Emitting Diameter:100mm
Power:50W(About 20W when work on 12V DC)
Forward Voltage:DC 12-14V
MAX Forward Current(DC):4000mA
Color & Color temperature:
Warm white : 2800-3200K
Cold white : 6000-6500K
Luminous flux: >100LM/W
Notice: please add Cooler
Application: Car Lighting, Working lights, Road lamp, Table lamp, wall lamp and other DIY LED light
Product picture

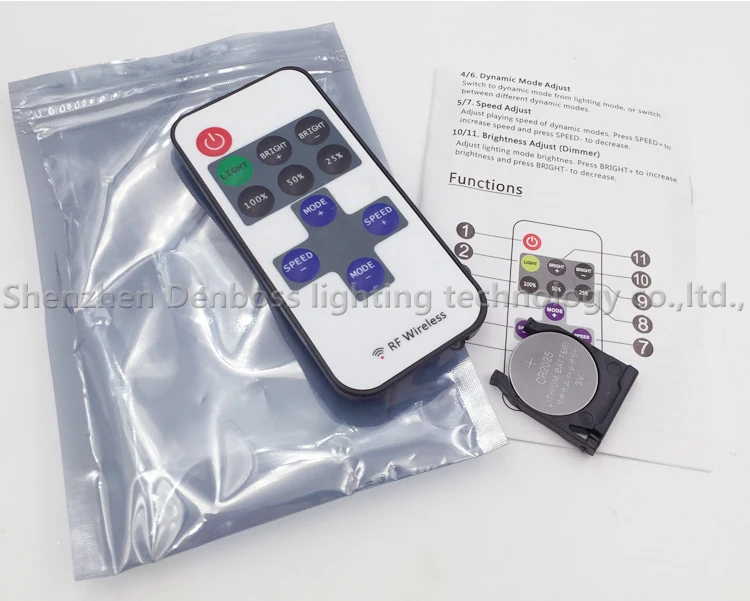

Description of RF RemoteController
Caution:packege withoutBattery!!!(Battery is not include)
Instructions
1. Dimmer & Dynamic2. 8 Dynamic Effects
3. 10-level Dimmer4. 256-Grade PWM
5. Speed Adjustable6. Card Type Remote
7. Ultra Slim Design8. Smooth Dimmer Effect
9. 1 to 1 Remote Paired10. Auto Save Function
1.Turn On/Standby
Press this key to turn on unit or switch to standby mode.Unit will turn on and restore to previous status at powering on moment.
2.Lighting Mode
Switch to lighting mode from dynamic mode.
3/8/9. Dimmer Adjust Shortcuts
Switch to 100%,50%,or 25% brightness lighting mode.
4/6. Dynamic Mode Adjust
Switch to dynamic mode from lighting mode,or switch between different dynamic modes.
5/7. Speed Adjust
Adjust playing speed of dynamic modes.Press SPEED+ to increase speed and press SPEED- to decrease.
10/11. Brightness Adjust (Dimmer)
Adjust lighting mode brightness.Press BRIGHT+ to increase brightness and press BRIGHT- to decrease.
Functions
Installing
1.Power Supply
This unit accepts DC 12V to 14V power supply.The red cable should be connected to positive and black cable to negative.Please select proper power supply according to the LED application.
2.LED Output
The red cable should be connected to LED positive and black cable to negative.The peak output current is 6A,please reduce load if main unit is overheating.
CAUTION!Do not short circuit the LED output,this may lead to permanent damage!
3.Remote Controll
Please pull out the insulate part before using.The RF wireless remote signal can pass through barrier,so it's not necessary to aim at the main unit when operate.For proper receiving remote signal,do not install the main unit in closed metal parts.The remote battery is 3V CR2025 type,please only replace with same type battery.
Specification
