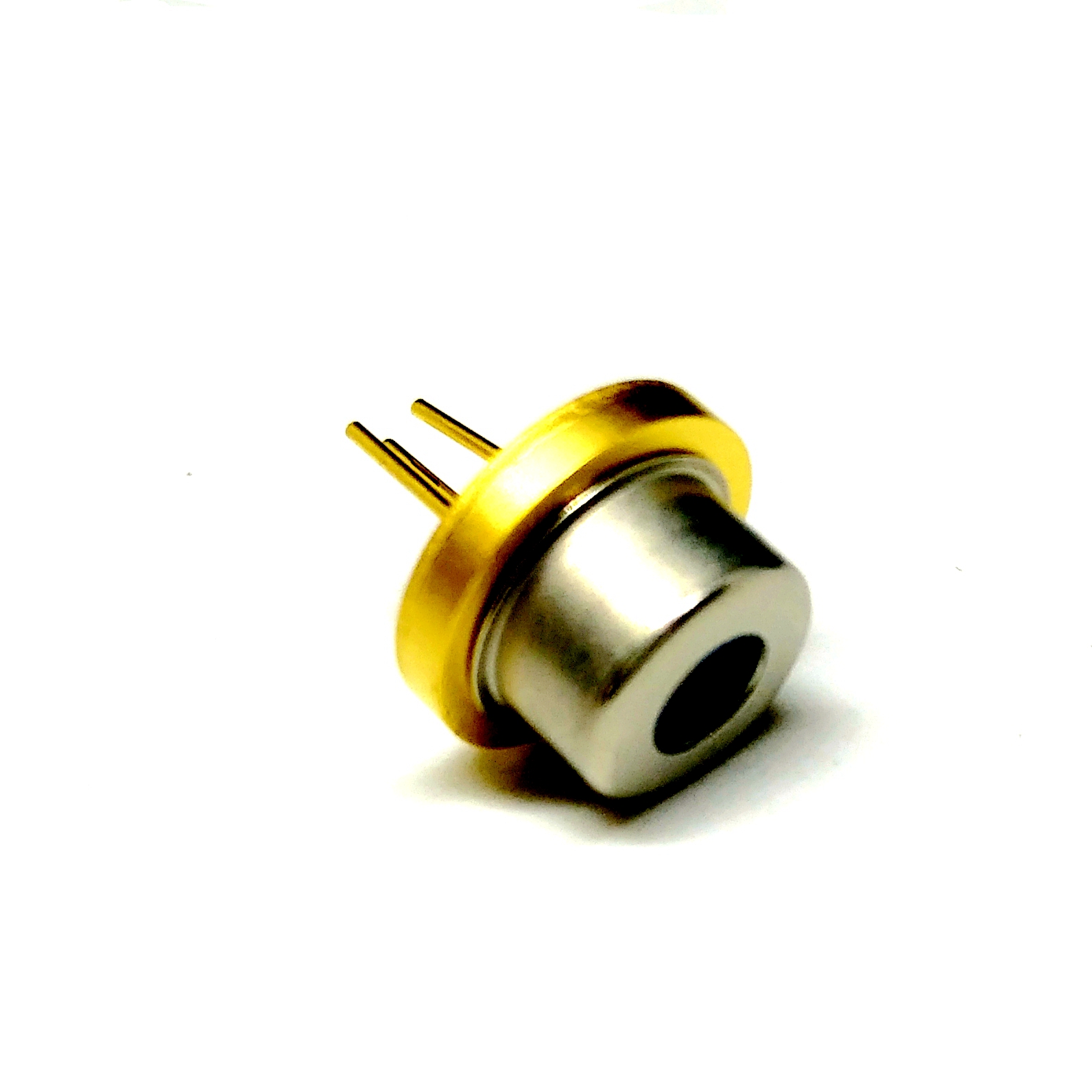

808nm~810nm 3W Laser Diodes | TO5 9mm package| Square Beam Optional

$79.00

Categories: ,

Description

●  Part Number:WSLD-808-003-2
●  Wavelength:808nm
●  Output Power:3W
●  Package:TO5 (9mm)
●  Without PD & FAC

Part Number
WSLD-808-003-2
PARAMETER SYMBOL VALUE UNIT OF MEASURE
Reverse Voltage Vr 2.0 V
Operating Temperature Top 0~+30 °C
Storage Temperature Tstg -40 ~ +85 °C
Lead Soldering Temperature (10 sec.) Tis 260 °C
Typical Specification (@25C°)
Min.
Typical Value
Max.
Optical Parameters

Center Wavelength
808nm+/-10nm
Output Power
—- 3.0W —-
Spectral Width(FWHM) —- 2.0nm —-
Wavelength Temp. Coefficient 0.3nm/°C
Laser Type FP
Beam Type Multimode
Emitter Size 100umx1um
Beam Divergence (FWHM) —- 38°⊥x10°∥ 40°⊥x12°∥
Slope Efficiency —- 1.1W/A —-
Electrical Parameters Threshold Current —- 0.6A —-
Operating Current —- 3.3A —-
Operating Voltage —- 2.2V —-
Photodiode Parameters Photodiode Without
PD Current —- —- —-
PD Reverse Voltage (Max.) —-
Other Parameters Package TO5(9mm)
Recommended
Operating Temp.
25°C

Other

—-
