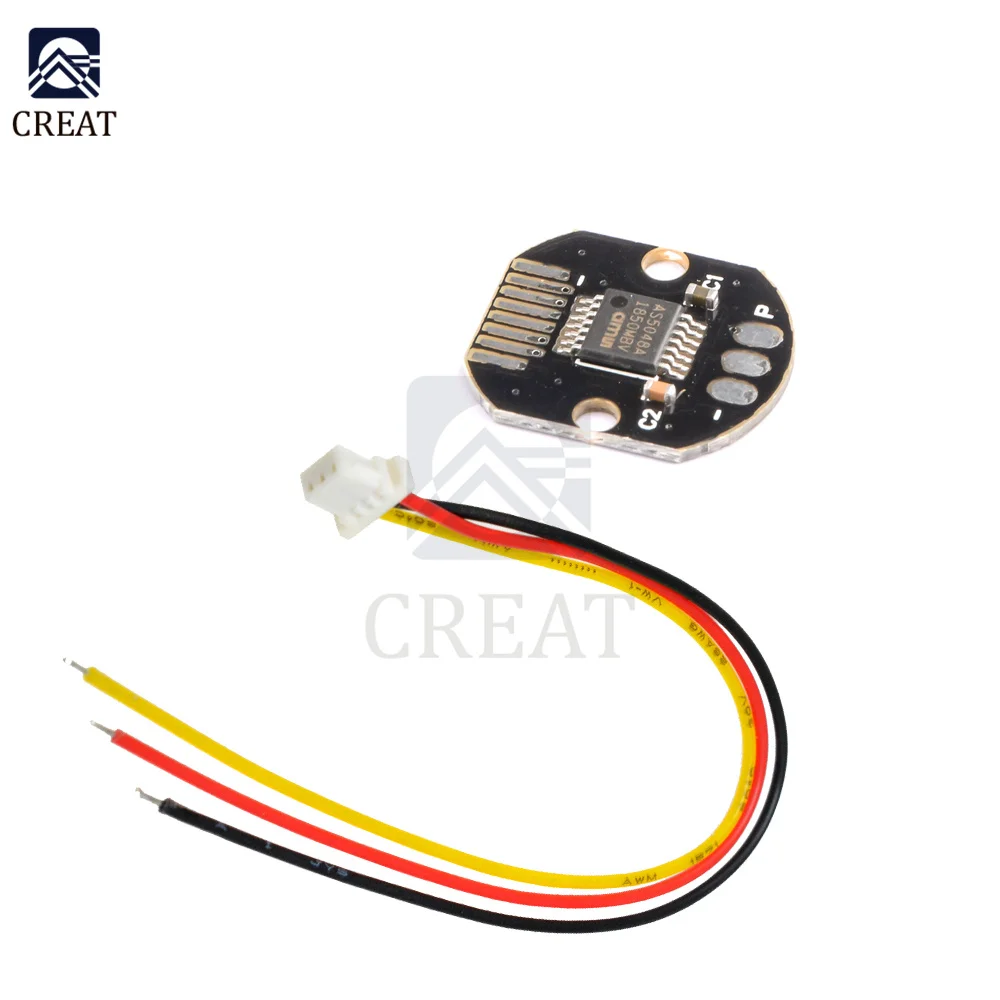

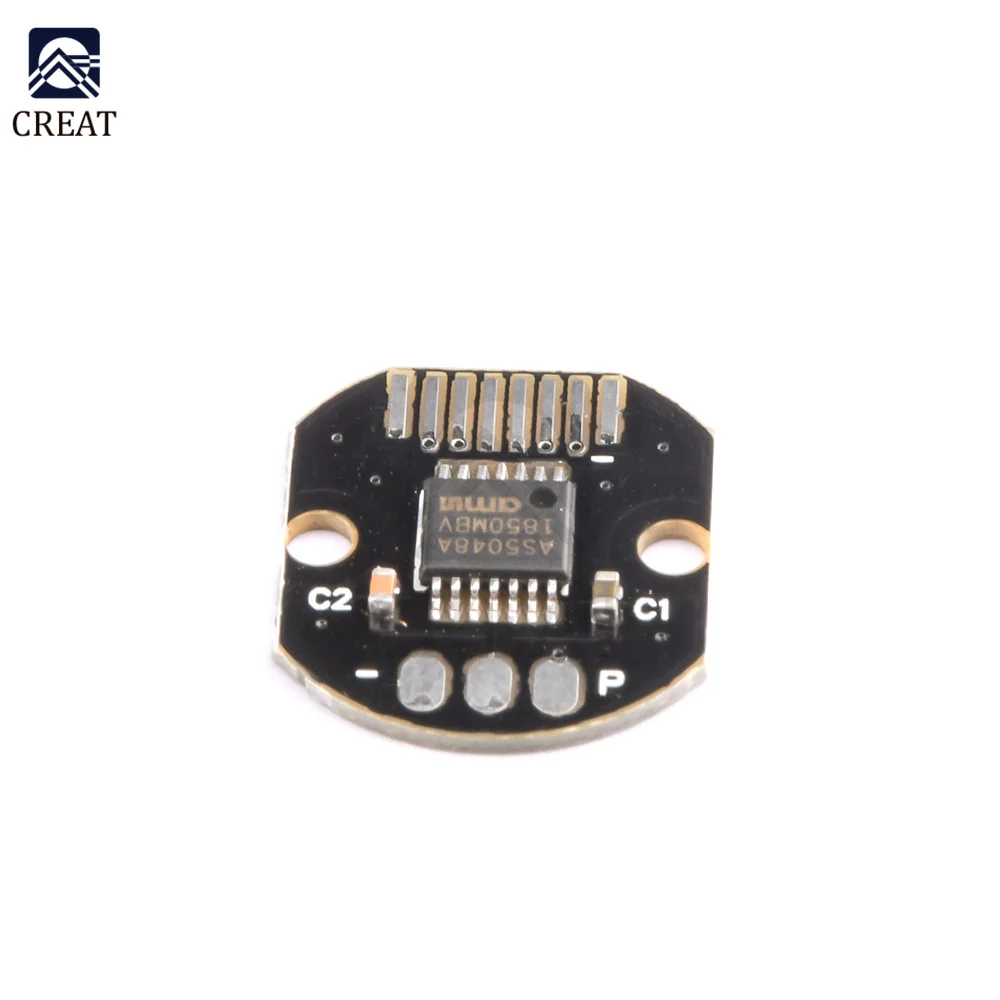

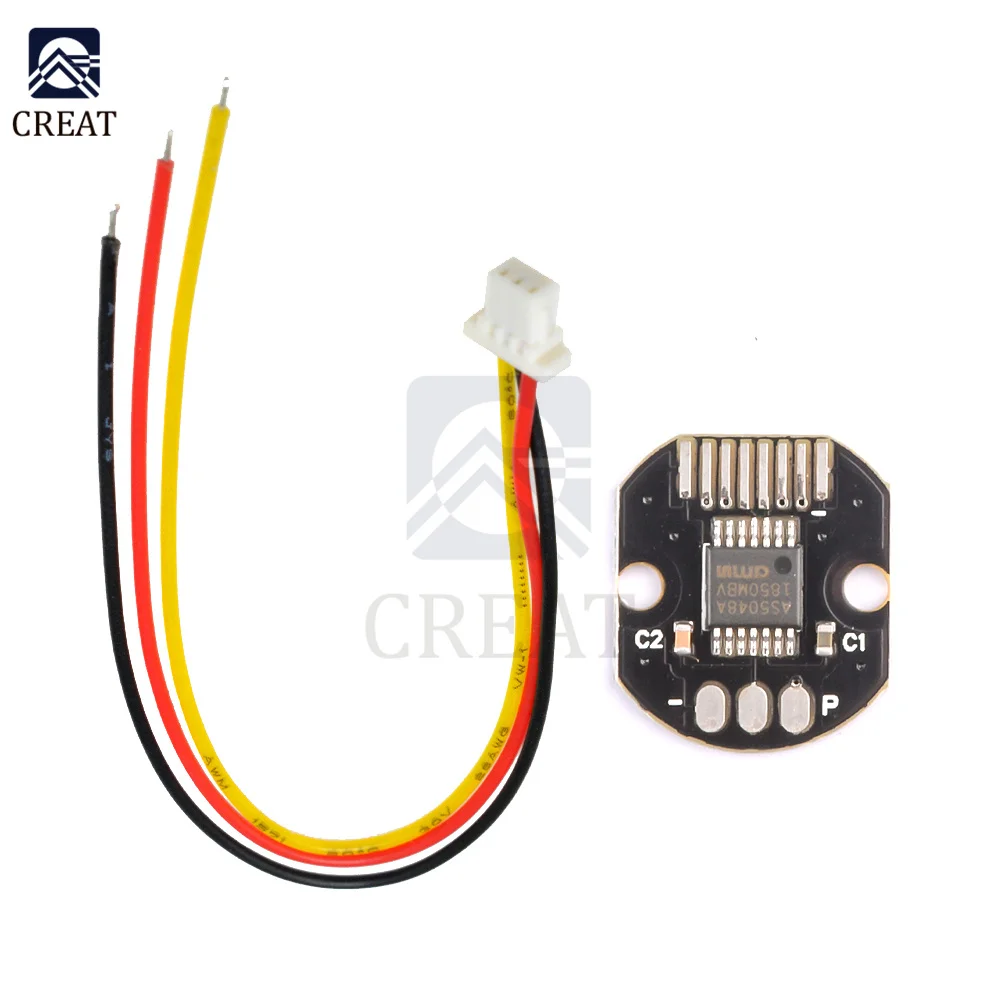

AS5048A PWM SPI 14 Bit no Brush Holder Rotary Sensor for Brushless Motor Magnetic Encoder Sets

$13.71

9981 in stock

SKU: 1005003150999197 Category:

Description

  • Brand Name: Ziqqucu
  • Origin: Mainland China
  • Condition: New
  • Type: Voltage Regulator
  • Model Number: AS5048 As5048a
  • Supply Voltage: Air gap resistance
  • Dissipation Power: Daisy chain function
  • is_customized: Yes
  • Operating Temperature: Pulse width modulation output (PWM)
  • Application: Computer
  • Package: SMD






AS5048A PWM SPI 14 Bit no Brush Holder Rotary Sensor for Brushless Motor Magnetic Encoder Sets



Main features & advantages


1,360° contact Angle position sensor
2,Standard SPI
3, Pulse width modulation output (PWM)
4,simple programmable zeros via SPI
1. No programming required
2, 14 full range resolution is 0.0219 ° / LSB
3, the system after linearization 0.05 ° Angle precision°

On average

1. Daisy chain function
2. Air gap resistance
Field input range: 30MT- out of 70mT
To 40 ° C to + 150 ° C temperature range
3.3v /5V compatibility
4, 14 pin TSSOP encapsulation (5*6.4mm)
