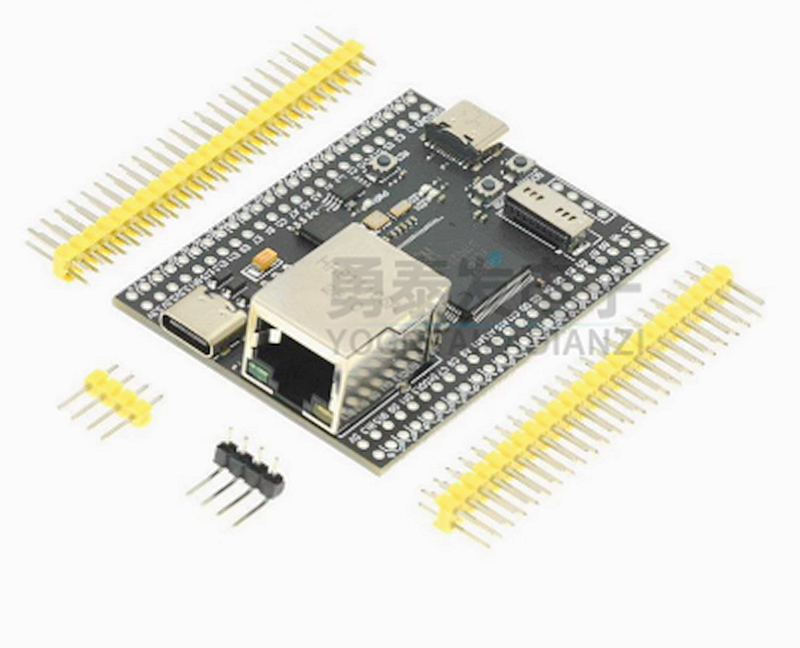

CH32V307VCT6 core board MCU development board 32-bit RISCV controller supports RT-Thread

Graphic details

Data link: https://pan.baidu.com/s/198-MqQbOYuXzfXBbkoo9YQ?pwd=8888 Extraction code: 8888

Product introduction
Qingke V4F processor, up to 144MHz system frequency
Supports single-cycle multiplication and hardware division, supports hardware floating-point operations (FPU) 64KB SRAM, 256KB Flash
Power supply voltage: 2.5/3.3V, GPIO unit independent power supply
Multiple low-power modes: sleep, stop, standby
Power-up/power-down reset, programmable voltage detector
2 groups of 18-channel general-purpose DMA
4 groups of op amp comparators
1 random number generator TRNG
2 groups of 12-bit DAC conversion
2 units of 16 channels of 12-bit ADC conversion, 16-channel touch keys TouchKey 10 groups of timers
USB2.0 full-speed OTG interface
USB2.0 high-speed host/device interface (480Mbps built-in PHY) 3 USART interfaces and 5 UART interfaces
2 CAN interfaces (2.0B active)
SDI0 interface, FSMC interface, DVP digital image interface
2 groups of 11C interfaces, 3 groups of SPI interfaces, 2 groups of 1IS interfaces
Gigabit Ethernet controller ETH (built-in 10M PHY)
80 1/0 ports, can be mapped to 16 external interrupts
CRC calculation unit, 96-bit chip unique ID serial 2-wire debug interface
