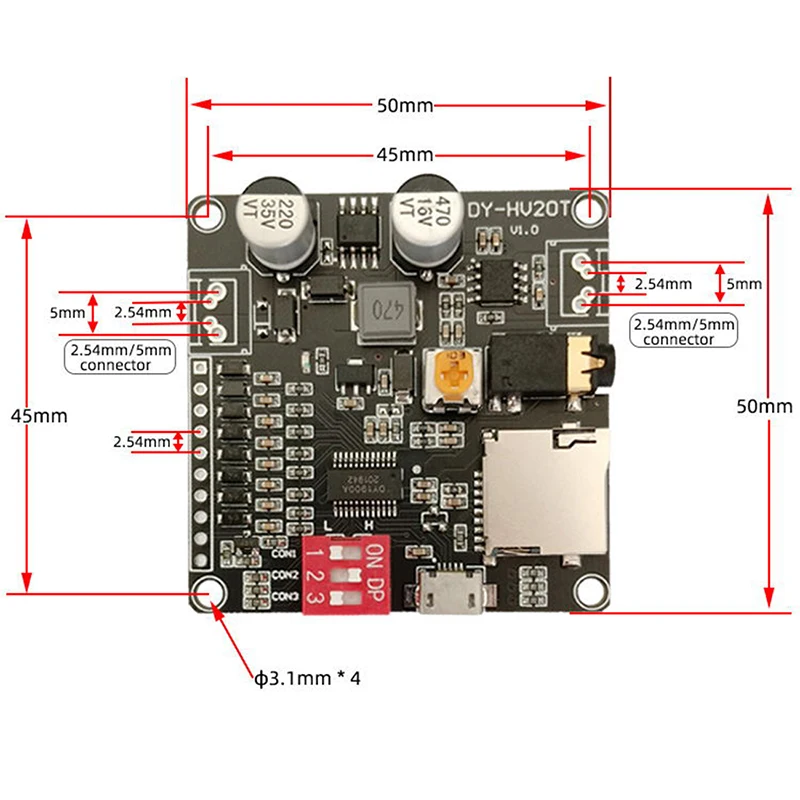

Description
- Brand Name: NoEnName_Null
- Origin: CN(Origin)
- Condition: New
- Type: Smart Electronics
- Model Number: Voice Playback Modul
- Supply Voltage: DC:6~35V
- Dissipation Power: 10W20W
- is_customized: Yes
- Operating Temperature: -40℃ ~ 85℃
- Application: Electronic experiment
- Package: Module




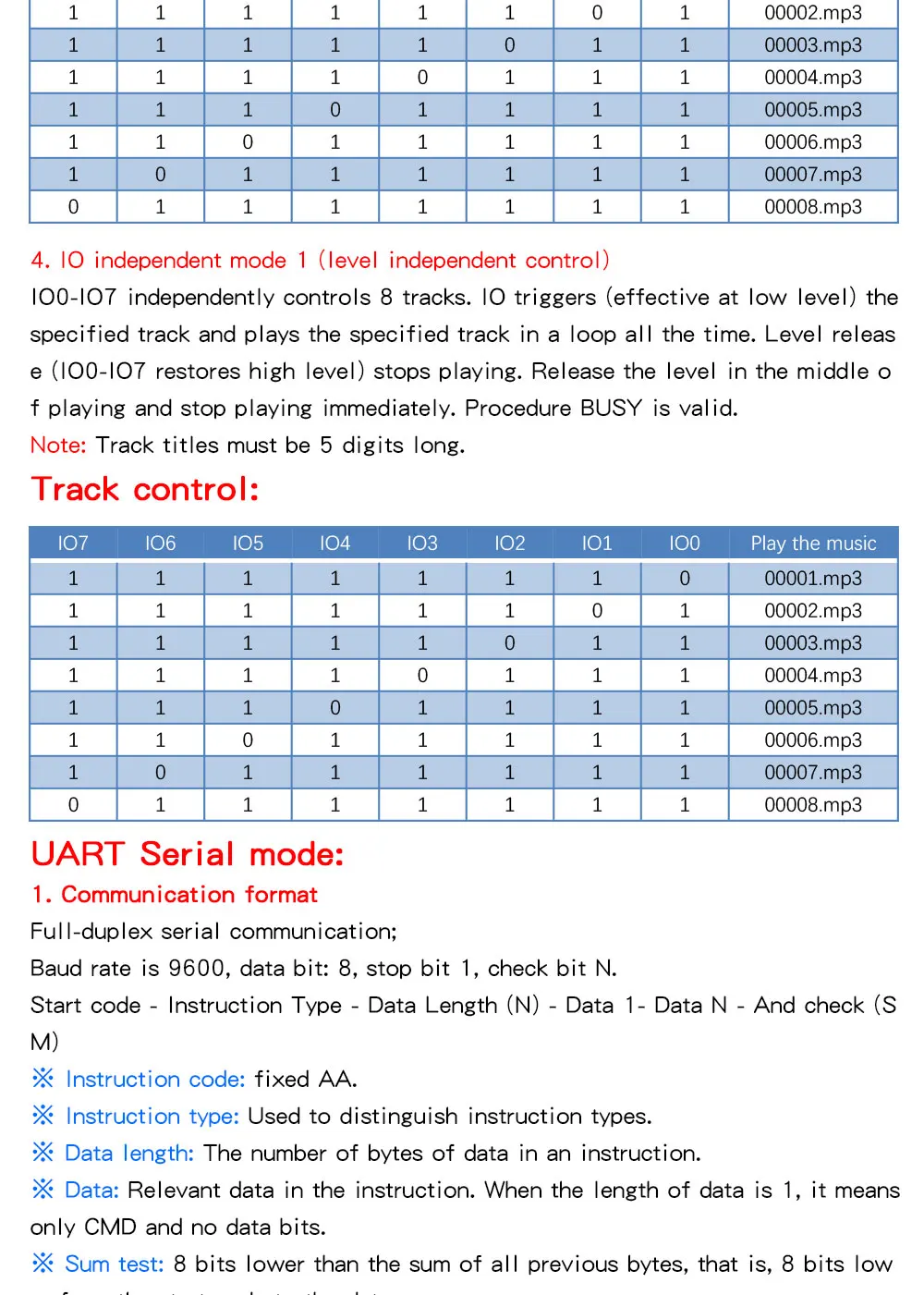

Definition of pins:
PINS |
Description |
Power(6~35VDC) |
6~35VDC power supply |
TXD/IO0 |
IO0 in IO triggering mode;TX in UART control mode,connect to RX of MCU |
RXD/IO1 |
IO1 in IO triggering mode; RX in UART control mode,connect to TX of MCU |
IO2 |
IO2 in IO triggering mode |
IO3 |
IO3 in IO triggering mode |
One_line/IO4 |
IO4 in IO triggering mode;RX in One_line mode |
IO5 |
IO5 in IO triggering mode |
IO6 |
IO6 in IO triggering mode |
IO7 |
IO7 in IO triggering mode |

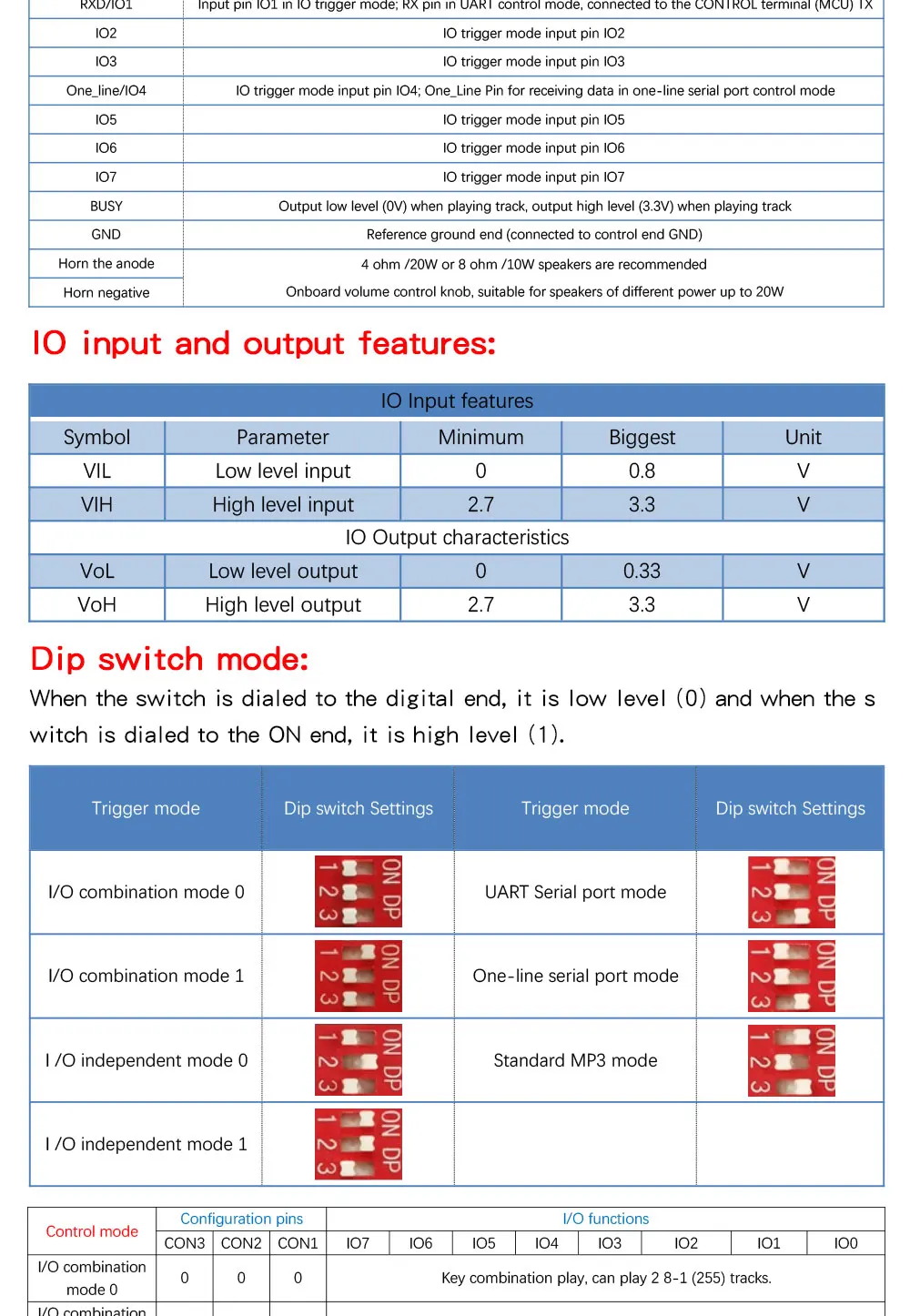

BUSY |
Output low level while playing music(0V),output high level when end playing(3.3V) |
GND |
Reference GND |
Speaker |
4Ω/20W or 8Ω/10W speaker is recommended |
