Fiber laser emitting module Photodiode driving circuit board Electric signal transmission optical signal conversion

$7.36$25.94

Clear
SKU: 33003744073 Category:

Description

  • Brand Name: ElecDemo
  • Compatible With: Fiber laser emitting module
  • Accessory Type: Fiber laser emitting module
  • Power supply voltage: 12V
  • Size: 57mm*29mm

Optional specifications:

1. Default configuration 1KHz~150MHz (Transmitting module)

2. Compatible with DC version DC~1MHz(Compatible with DC)




Parameters:

Name: Fiber Laser Emission Module

Power Supply: 12 (Note: Compatible DC Version Power Supply 5V)

Size: (PCB) 57mm*29mm    (positioning hole) 50mm*22mm

Output current: 190mA (MAX)

Signal Input Amplitude Requirements: VPP > 1V

Signal input frequency: 1KHz-150MHz (default configuration), 1Hz-1KHz (need customer self-configuration, C3, C6, C10, C11 capacitors increase, the higher the frequency, the lower the frequency)





Package include:

module*1

PDF schematic*1:Please contact customer service after purchase, we will send the information to your mailbox





Receive module link:\https://www.aliexpress.com/item/33003508263.html

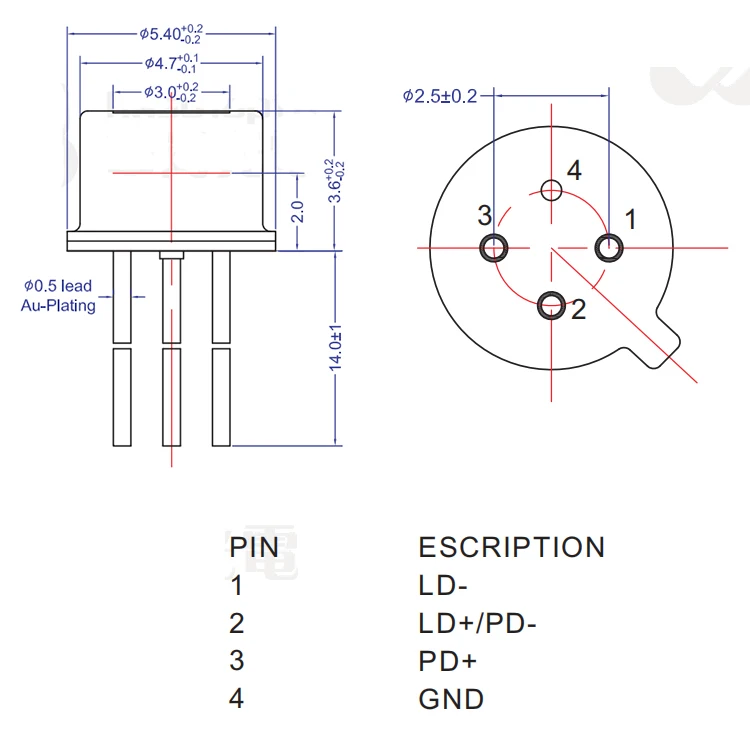

Laser emission tube details:
123



The signal generator inputs 7kHz to the transmitting module on the left, and the sine wave signal of 2Vpp passes through the electro-optic photoelectric conversion of two modules to get the effect picture of the oscilloscope on the right, with the frequency of 7.143khz
7K


The signal generator inputs 1MHz to the transmitting module on the left, and the sine wave signal of 2Vpp passes through the electro-optic photoelectric conversion of two modules to get the effect picture of the oscilloscope on the right, with the frequency of 985.2KHz
1M


On the left side, the signal generator inputs 50MHz to the transmitting module, and the sine wave signal of 2Vpp is converted through the electro-optical photoelectric conversion of two modules to get the effect picture of the oscilloscope on the right side, with the frequency of 49.75MHz
50M


The signal generator inputs 70MHz to the transmitting module on the left side, and the sine wave signal of 2Vpp is converted into electro-optic and electro-optic signals of two modules to get the effect picture of the oscilloscope on the right side, with the frequency of 69.93MHz
70m


The signal generator inputs 100MHz to the transmitting module on the left, and the sine wave signal of 2vp is converted through the electro-optical photoelectric conversion of two modules to get the effect diagram of the oscilloscope on the right, with the frequency of 96.15MHz
100M
