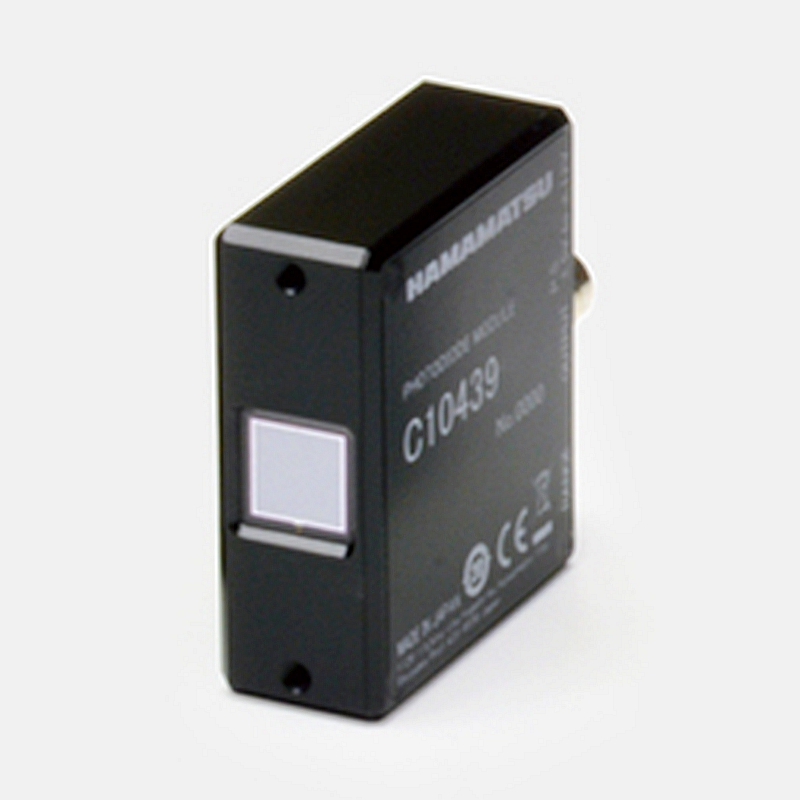

Hamamatsu C10439-09 Integrates photodiode for precision photometry with low-noise amp (Photosensitive area: 10 × 10 mm)

$199.00

Hamamatsu C10439-09 Integrates photodiode for precision photometry with low-noise amp (Photosensitive area: 10 × 10 mm) Datasheet

Hamamatsu C10439-09 Integrates photodiode for precision photometry with low-noise amp (Photosensitive area 10 × 10 mm)

Description

Hamamatsu C10439-09 Integrates photodiode for precision photometry with low-noise amp (Photosensitive area: 10 × 10 mm)



The C10439 series photodiode modules are high-precision photodetector that integrates a photodiode and a current-to-voltage amplifier. The output from the photodiode module is an analog voltage and can be easily checked with a voltmeter, etc. Since their sensitivity is switchable between two ranges (High/Low), highly accurate output can be obtained by selecting the proper sensitivity range that matches the light level to be detected.

Features
-Built-in Si Photodiode
-Photosensitive area: 10 × 10 mm
-Voltage output for easy handling
-Two-range (High/Low) switching function
-Compact: half size of a business card
-Can be mounted on optical bench rod (M4)



Specifications

Photosensitive area 10 × 10 mm
Spectral response range 190 to 1100 nm
Peak sensitivity wavelength 960 nm
Output Analog
Conversion impedance Low range: 1 × 104
High range: 1 × 106 V/A
Cutoff frequency Low range: 100000
High range: 1000 Hz
Supply voltage ±5 to ±12 V
Measurement condition Ta=25 ℃, Vcc=±12 V, unless otherwise noted
