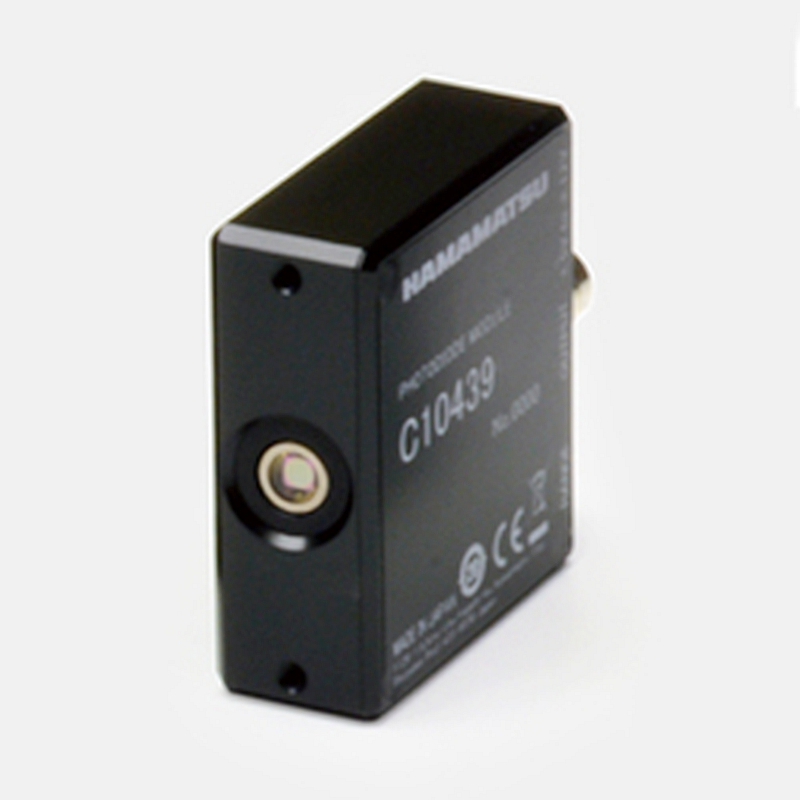

Hamamatsu C10439-11 Integrates photodiode for precision photometry with low-noise amp (Photosensitive area: Φ3 mm)

$199.00

Hamamatsu C10439-11 Integrates photodiode for precision photometry with low-noise amp (Photosensitive area: Φ3 mm) Datasheet

Hamamatsu C10439-11 Integrates photodiode for precision photometry with low-noise amp (Photosensitive area Φ3 mm)

Description

Hamamatsu C10439-11 Integrates photodiode for precision photometry with low-noise amp (Photosensitive area: Φ3 mm)



The C10439 series photodiode modules are high-precision photodetector that integrates a photodiode and a current-to-voltage amplifier. The output from the photodiode module is an analog voltage and can be easily checked with a voltmeter, etc. Since their sensitivity is switchable between two ranges (High/Low), highly accurate output can be obtained by selecting the proper sensitivity range that matches the light level to be detected.

Features
-Built-in InGaAs Photodiode
-Photosensitive area: Φ3 mm
-Voltage output for easy handling
-Two-range (High/Low) switching function
-Compact: half size of a business card
-Can be mounted on optical bench rod (M4)



Specifications

Photosensitive area Φ3 mm
Spectral response range 500 to 1700 nm
Peak sensitivity wavelength 1550 nm
Output Analog
Conversion impedance Low range: 1 × 104
High range: 1 × 106 V/A
Cutoff frequency Low range: 100000
High range: 1000 Hz
Supply voltage ±5 to ±12 V
Measurement condition Ta=25 ℃, Vcc=±12 V, unless otherwise noted
