Description

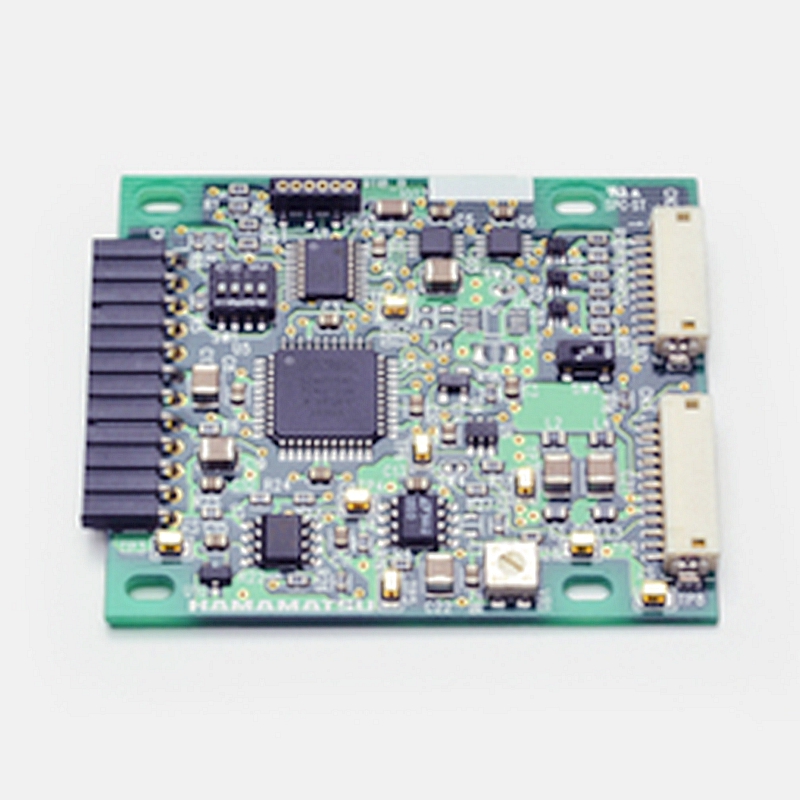

Hamamatsu C9118-01 Compact, easy-to-use driver circuit

The C9118-01 CMOS driver circuit is designed for photodiode arrays with amplifier.The C9118-01 operates a linear image sensor by just inputting two signals (M-CLK and M-RESET) and a signal +5 V supply. The C9118-01 is assembled on a compact board measuring 48 × 56 mm and allows downsizing of the measurement equipment.

Features
– Single power supply (+5 V) operation
– Operation with two input signals (M-CLK and M-RESET)
– Compact: 48 × 56 × 5.2^t mm
