Description

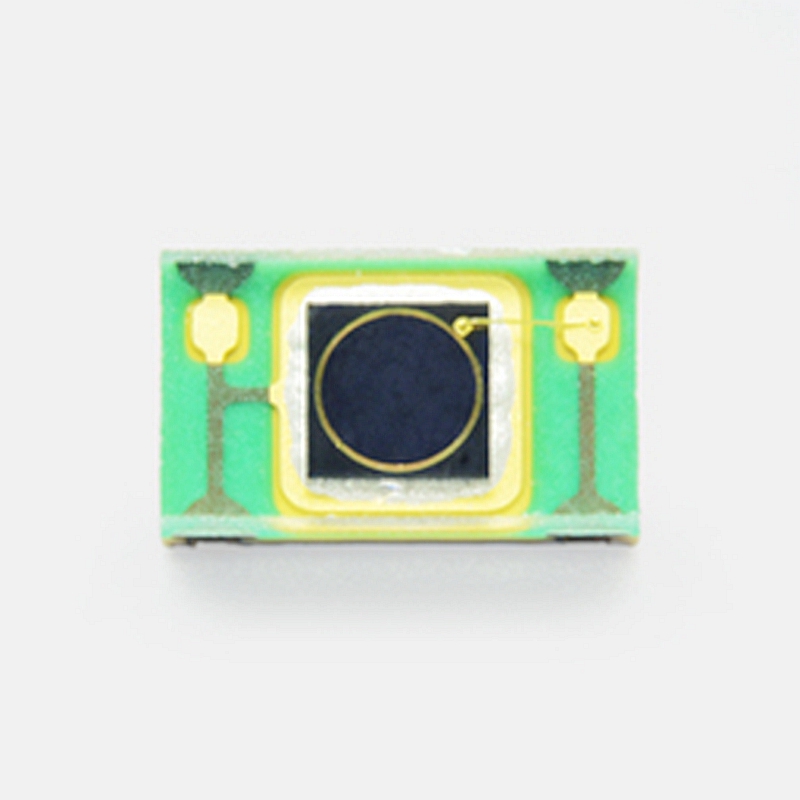

Hamamatsu G13176-010P Surface mount type COB (chip on board) package, Active area: 1 mm dia.
The G13176-010P is a small-size near infrared detector available in a surface mount COB package. Its size is drastically reduced compared to the previous metal package type (G12180-010A). The spectral response covers a range from 0.9 to 1.7 μm (with peak sensitivity wavelength at 1.55 μm). This product features high sensitivity and low noise. In addition to optical communication, you can use this product for analysis, measurement, and the like. The small package makes this product suitable for integration into hand-held devices and mobile devices. The modified resin has improved the reflow resistivity as compared to the previous product (G11777-003P).
Features
– Low noise
– High sensitivity
– High-speed response
– Low cost
– Compatible lead-free reflow soldering
Specifications
| Photosensitive area | φ1.0 mm |
|---|---|
| Number of elements | 1 |
| Package | Plastic |
| Package Category | Surface mount type (COB) |
| Cooling | Non-cooled |
| Spectral response range | 0.9 to 1.7 μm |
| Peak sensitivity wavelength (typ.) | 1.55 μm |
| Photosensitivity (typ.) | 1 A/W |
| Dark current (max.) | 4 nA |
| Cutoff frequency (typ.) | 60 MHz |
| Terminal capacitance (typ.) | 55 pF |
| Noise equivalent power (typ.) | 1.4×10-14 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=5 V, Cutoff frequency: VR=5 V, RL=50 Ω, Terminal capacitance: VR=5 V, f=1 MHz |
