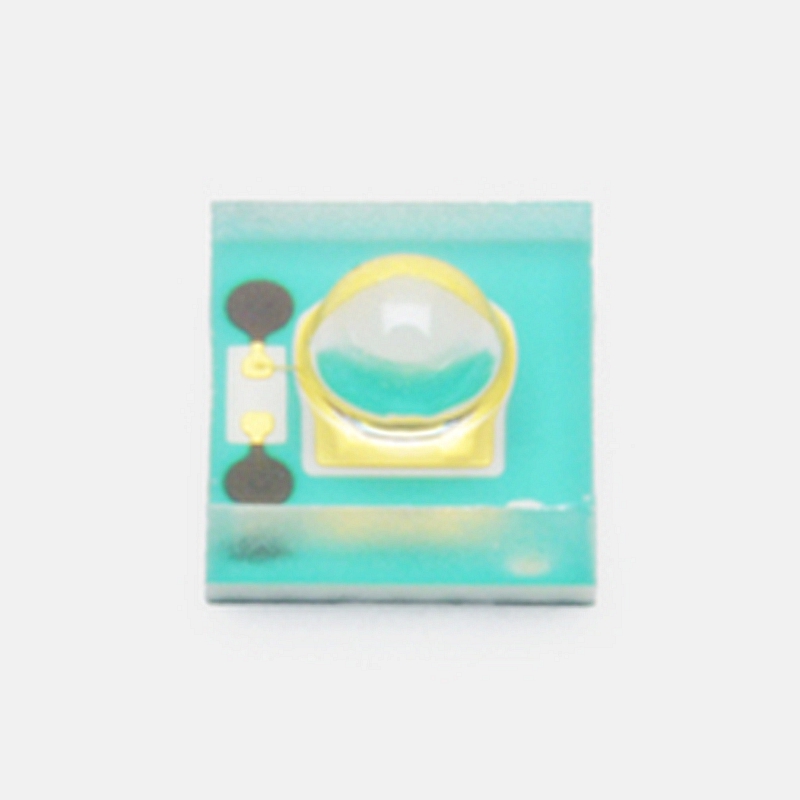

Hamamatsu G14448-003L Surface mount type COB package with lens
The G14448-003L is a compact near-infrared detector available in a surface mount type COB package with lens. Using the lens provides narrow directivity, which allows for pinpoint analysis/measurement and other uses. The small package makes it suitable for inclusion in compact and mobile equipment.
Features
– Low noise
– High sensitivity
– High-speed response
– Compact surface mount type package with lens (2.8 × 2.8 × 2.0t mm)
– Applicable lead-free reflow soldering
Specifications
| Photosensitive area | φ0.3 mm |
|---|---|
| Number of elements | 1 |
| Package | Plastic |
| Package Category | Surface mount type (with lens) |
| Cooling | Non-cooled |
| Spectral response range | 0.9 to 1.7 μm |
| Peak sensitivity wavelength (typ.) | 1.55 μm |
| Photosensitivity (typ.) | 0.95 A/W |
| Dark current (max.) | 0.8 nA |
| Cutoff frequency (typ.) | 600 MHz |
| Terminal capacitance (typ.) | 5 pF |
| Noise equivalent power (typ.) | 5×10-15 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=5 V, Cutoff frequency: VR=5 V, RL=50 Ω, Terminal capacitance: VR=5 V, f=1 MHz |
