Description

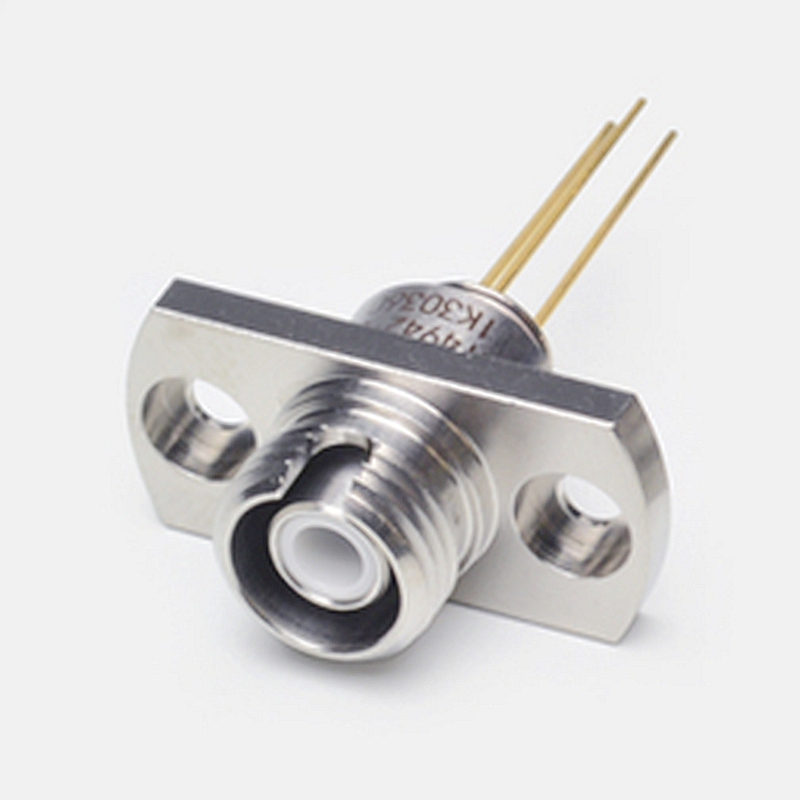

Hamamatsu G14942-32 Angled PC compatible, receptacle type
This is a high-speed photosensor developed for Doppler LiDAR. This is a receptacle type compatible with FC/Angled PC, and has a built-in high-speed InGaAs PIN photodiode.
Features
– High-speed response: 2 GHz typ.
– Low dark current: 20 pA typ.
– FC/Angled PC compatible
Specifications
| Number of elements | 1 |
|---|---|
| Package | Receptacle |
| Package Category | FC panel |
| Cooling | Non-cooled |
| Spectral response range | 0.9 to 1.7 μm |
| Peak sensitivity wavelength (typ.) | 1.55 μm |
| Photosensitivity (typ.) | 0.95 A/W |
| Dark current (max.) | 0.4 nA |
| Cutoff frequency (typ.) | 2000 MHz |
| Terminal capacitance (typ.) | 1 pF |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=5 V, Cutoff frequency: VR=5 V, RL=50 Ω, λ=1.55 μm, -3 dB, Terminal capacitance: VR=5 V, f=1 MHz, unless otherwise noted |
