Description

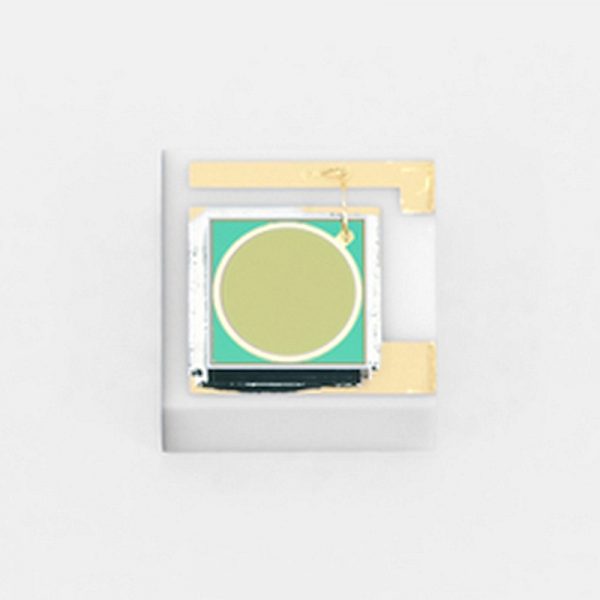

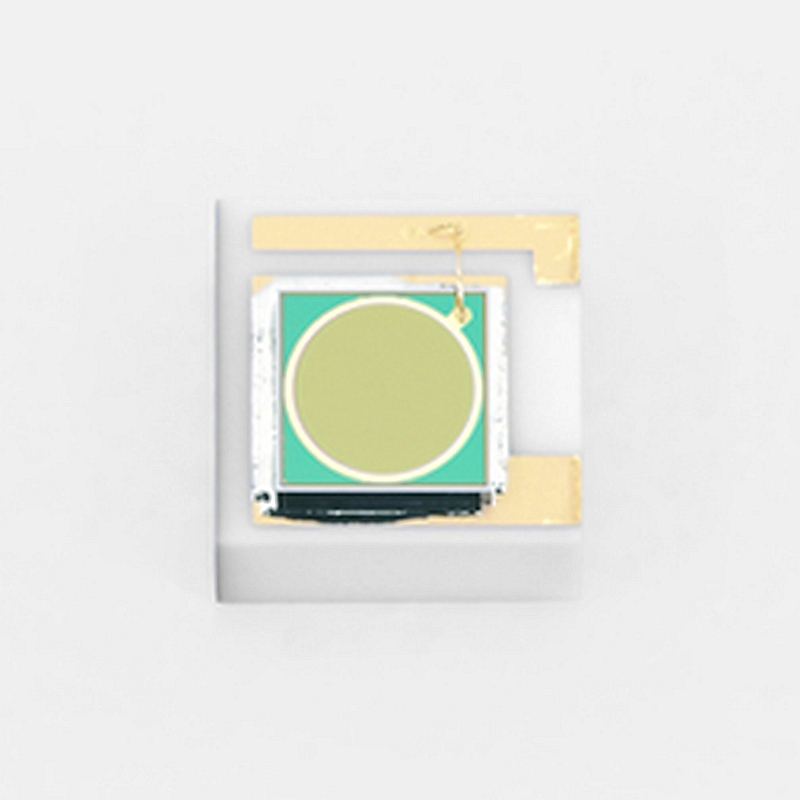

Hamamatsu G15553-010C Sub-mount type photodiode for LD monitor
Features
– Active area G15553-010C: φ1 mm
– Miniature package: 2 × 2 × 1 mm
– Precise chip position tolerance: ±0.075 mm
Notice
The chip of this product is not sealed and is exposed.
Parts such as electrodes on the chip are not protected by an enclosure or window and so require especially strict care during handling compared to ordinary products.
Specifications
Photosensitive area | φ1.0 mm |
---|---|
Number of elements | 1 |
Package | Ceramic |
Package Category | Surface mount type (unsealed) |
Cooling | Non-cooled |
Spectral response range | 0.9 to 1.7 μm |
Peak sensitivity wavelength (typ.) | 1.55 μm |
Photosensitivity (typ.) | 1.1 A/W |
Dark current (max.) | 4 nA |
Cutoff frequency (typ.) | 60 MHz |
Terminal capacitance (typ.) | 55 pF |
Noise equivalent power (typ.) | 2.0×10-14 W/Hz1/2 |
Measurement condition | Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=5 V, Cutoff frequency: VR=5 V, RL=50 Ω, Terminal capacitance: VR=5 V, f=1 MHz |
