Description

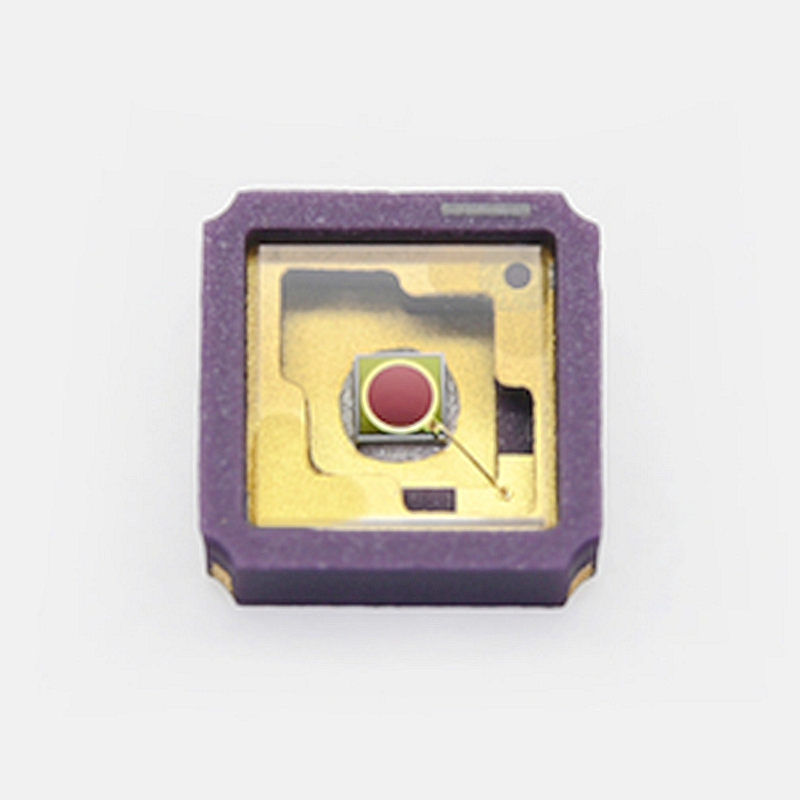

Hamamatsu G17190-005K Near infrared detector in surface mount type ceramic package
It is a near infrared detector in a surface mount type ceramic package.
It realizes high sensitivity and low noise, and its compact size makes it suitable for installation in hand-held devices and mobile devices.
Features
– Cutoff wavelength: 1.7 µm
– Photosensitive area: φ0.5 mm
– Compact, surface mount type ceramic package
– Compatible with lead-free solder reflow
– Low dark current
Specifications
Photosensitive area | φ0.5 mm |
---|---|
Number of elements | 1 |
Package | Ceramic |
Package Category | Surface mount type |
Cooling | Non-cooled |
Spectral response range | 0.9 to 1.7 μm |
Peak sensitivity wavelength (typ.) | 1.55 μm |
Photosensitivity (typ.) | 1.0 A/W |
Dark current (max.) | 0.75 nA |
Cutoff frequency (typ.) | 200 MHz |
Terminal capacitance (typ.) | 15 pF |
Noise equivalent power (typ.) | 7.0×10-15 W/Hz1/2 |
Measurement condition | Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=5 V, Cutoff frequency: VR=5 V, RL=50 Ω, Terminal capacitance: VR=5 V, f=1 MHz |
