Description

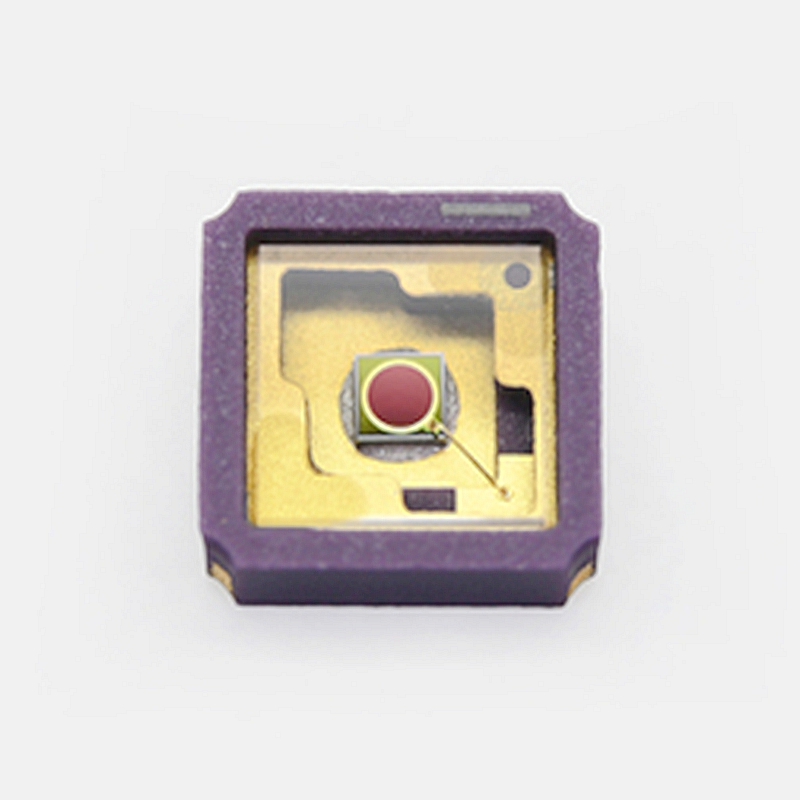

Hamamatsu G17191-005K Near infrared detector in surface mount type ceramic package
It is a near infrared detector in a surface mount type ceramic package.
It realizes high sensitivity and low noise, and its compact size makes it suitable for installation in hand-held devices and mobile devices.
Features
– Cutoff wavelength: 1.9 µm
– Photosensitive area: φ0.5 mm
– Compact, surface mount type ceramic package
– Compatible with lead-free solder reflow
– Low dark current
Specifications
| Photosensitive area | φ0.5 mm |
|---|---|
| Number of elements | 1 |
| Package | Ceramic |
| Package Category | Surface mount type |
| Cooling | Non-cooled |
| Spectral response range | 0.9 to 1.9 μm |
| Peak sensitivity wavelength (typ.) | 1.75 μm |
| Photosensitivity (typ.) | 1.1 A/W |
| Dark current (max.) | 30 nA |
| Cutoff frequency (typ.) | 35 MHz |
| Terminal capacitance (typ.) | 70 pF |
| Noise equivalent power (typ.) | 3.0×10-14 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=0.5 V, Cutoff frequency: VR=0 V, RL=50 Ω, Terminal capacitance: VR=0 V, f=1 MHz |
