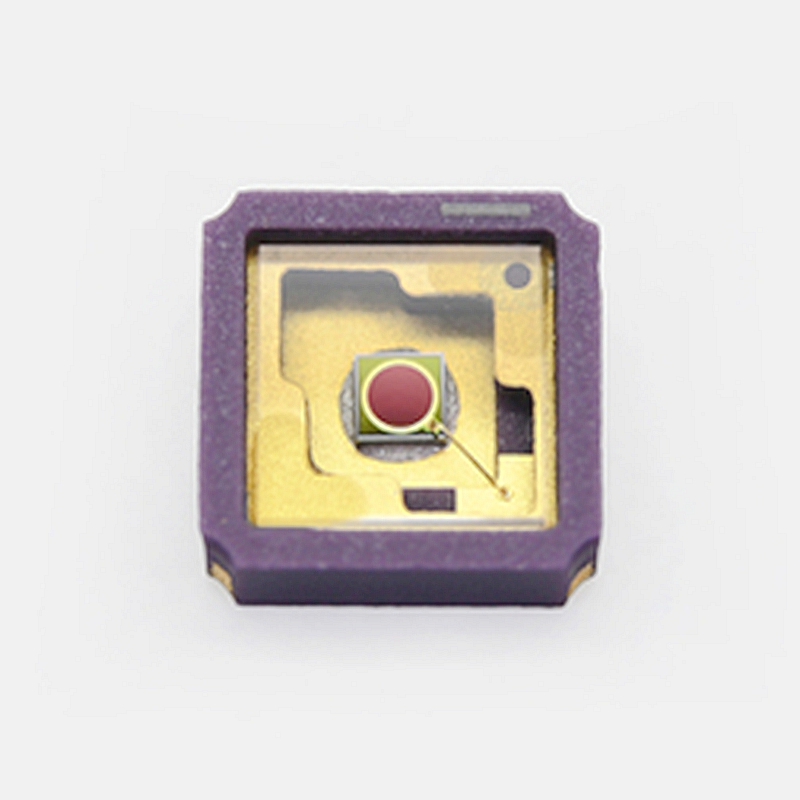

Hamamatsu G17193-005K Near infrared detector in surface mount type ceramic package

$199.00

Hamamatsu G17193-005K Near infrared detector in surface mount type ceramic package Datasheet

Hamamatsu G17193-005K Near infrared detector in surface mount type ceramic package

Description

Hamamatsu G17193-005K Near infrared detector in surface mount type ceramic package



It is a near infrared detector in a surface mount type ceramic package.
It realizes high sensitivity and low noise, and its compact size makes it suitable for installation in hand-held devices and mobile devices.



Features
– Cutoff wavelength: 2.6 µm
– Photosensitive area: φ0.5 mm
– Compact, surface mount type ceramic package
– Compatible with lead-free solder reflow
– Low dark current



Specifications

Photosensitive area φ0.5 mm
Number of elements 1
Package Ceramic
Package Category Surface mount type
Cooling Non-cooled
Spectral response range 0.9 to 2.6 μm
Peak sensitivity wavelength (typ.) 2.3 μm
Photosensitivity (typ.) 1.3 A/W
Dark current (max.) 10000 nA
Cutoff frequency (typ.) 20 MHz
Terminal capacitance (typ.) 140 pF
Noise equivalent power (typ.) 5.0×10-13 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=0.5 V, Cutoff frequency: VR=0 V, RL=50 Ω, Terminal capacitance: VR=0 V, f=1 MHz
