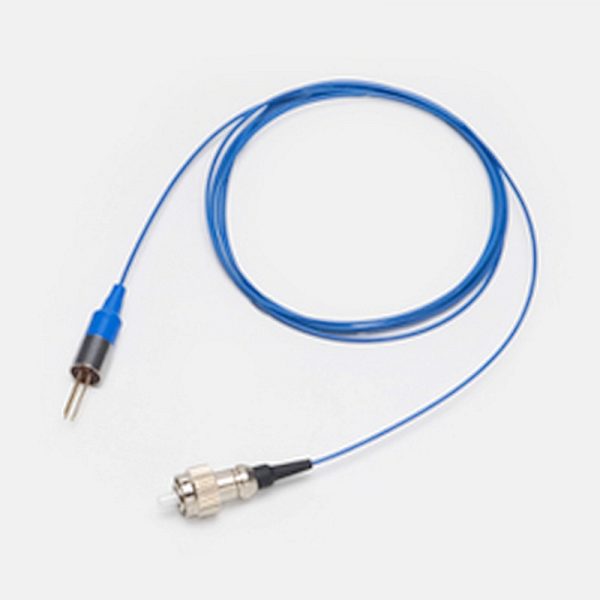

Hamamatsu G8195-12 Pigtail type, 1.3/1.55 μm, 2 GHz

$199.00

Hamamatsu G8195-12 Pigtail type, 1.3/1.55 μm, 2 GHz Datasheet

Hamamatsu G8195-12 Pigtail type, 1.31.55 μm, 2 GHz

Description

Hamamatsu G8195-12 Pigtail type, 1.3/1.55 μm, 2 GHz



The G8195-12 is a high-speed receiver specifically developed for 1.3/1.55 μm band power monitor in opticalfiber communications. This device incorporates a high-speed, high-sensitivity InGaAs PIN photodiode integrated in a pigtail module.

Features
– High-speed response: 2 GHz typ.
– Low dark current: 20 pA typ.
– High sensitivity: 0.9 A/W typ. (λ=1.31 μm)
– Low capacitance: 1 pF typ.



Specifications

Number of elements 1
Package Pigtail
Package Category coaxial FC
Cooling Non-cooled
Spectral response range 0.9 to 1.7 μm
Peak sensitivity wavelength (typ.) 1.55 μm
Photosensitivity (typ.) 0.95 A/W
Dark current (max.) 0.4 nA
Cutoff frequency (typ.) 2000 MHz
Terminal capacitance (typ.) 1 pF
Measurement condition Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=5 V, Cutoff frequency: VR=5 V, RL=50 Ω, λ=1.3 μm, -3 dB, Terminal capacitance: VR=5 V, f=1 MHz
