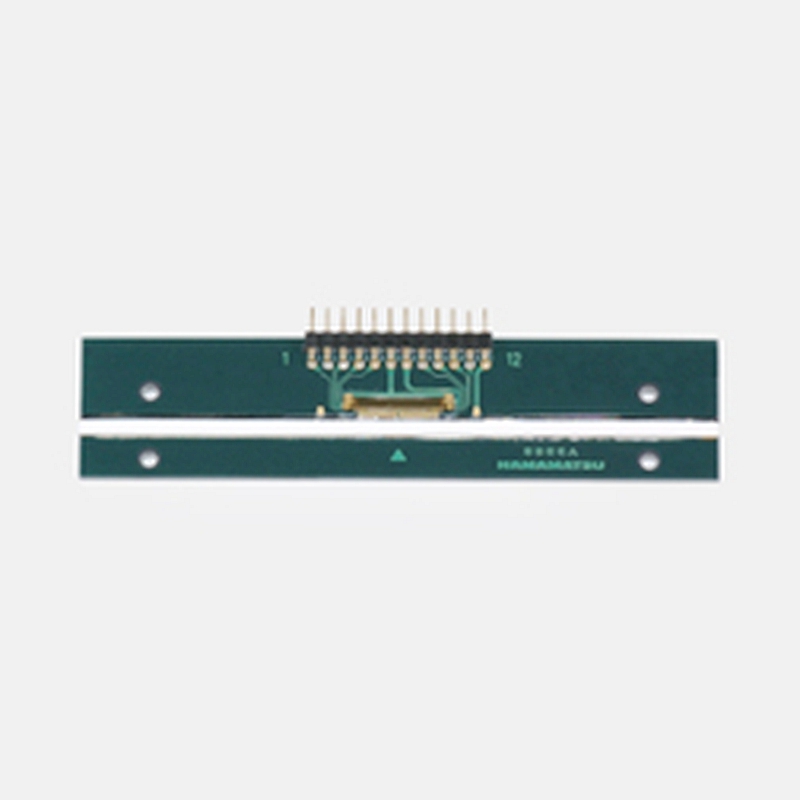

Hamamatsu S11866-64G-02 Photodiode array combined with signal processing IC for X-ray detection

This is a photodiode array with an amplifier and a phosphor sheet attached to the photosensitive area for X-ray detection. X-ray tolerance has been improved compared to the previous products (S8865/S8866 series). The signal processing circuit chip is formed by CMOS process and incorporates a timing generator, shift register, charge amplifier array, clamp circuit and hold circuit, making the external circuit configured by arranging multiple arrays in a row. As the dedicated driver circuit, the C9118 series (sold separately) is provided.

Features
-Data rate: 1 MHz max.
-Large element pitch: 1.6 mm pitch × 64 ch
-5 V power supply operation
-Simultaneous integration by using a charge amplifier array
-Low dark current due to zero-bias photodiode operation
-Integrated clamp circuit allows low noise and wide dynamic range
-Integrated timing generator allows operation at two different pulse timings
-Detectable energy range: 30 k to 100 keV

Specifications
