Description

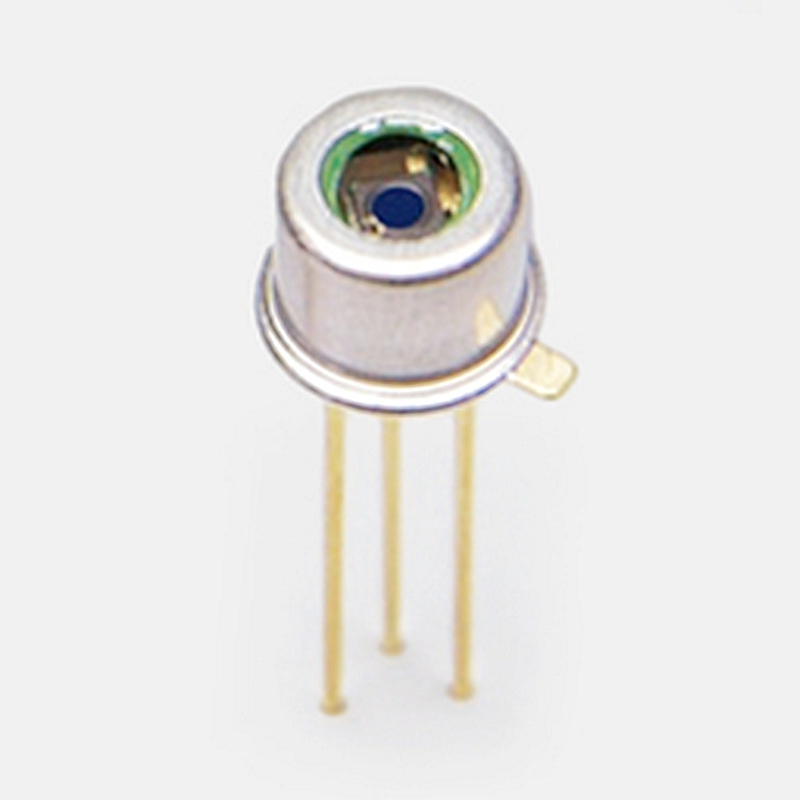

Hamamatsu S12053-10 Short wavelength type APD
Features
– High sensitivity and low noise in UV to visible range
Specifications
| Type | Short wavelength type (Low bias operation) |
|---|---|
| Photosensitive area | φ1 mm |
| Package | Metal |
| Package Category | TO-18 |
| Peak sensitivity wavelength (typ.) | 620 nm |
| Spectral response range | 200 to 1000 nm |
| Photosensitivity (typ.) | 0.42 A/W |
| Dark current (max.) | 5 nA |
| Cutoff frequency (typ.) | 250 MHz |
| Terminal capacitance (typ.) | 15 pF |
| Breakdown voltage (typ.) | 150 V |
| Temperature coefficient of breakdown voltage (typ.) | 0.14 V/℃ |
| Gain (typ.) | 50 |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=620 nm, M=1 |
