Description

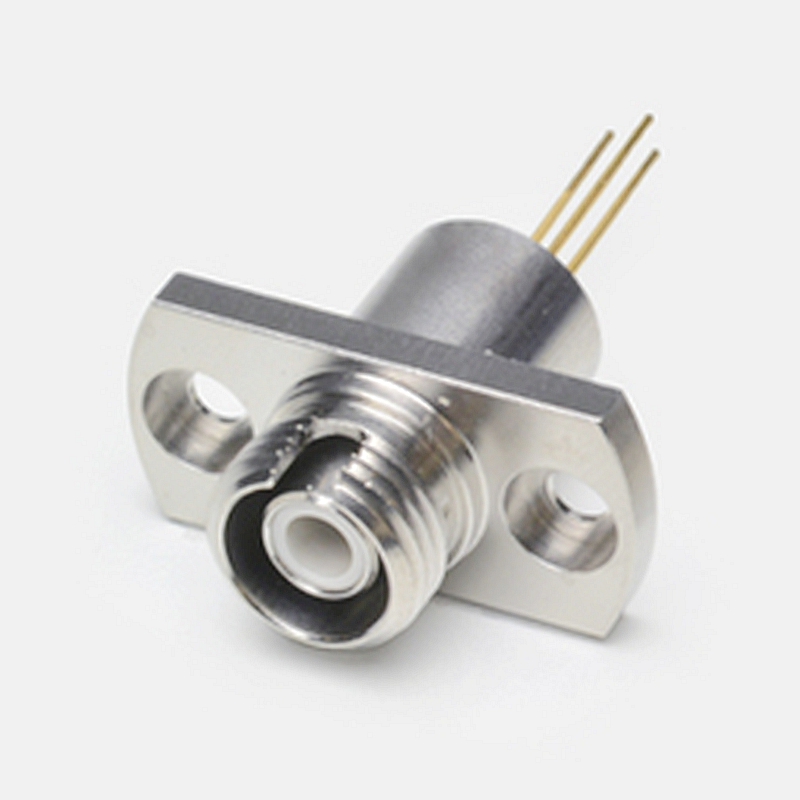

Hamamatsu S12109-32 Multimode optical fiber compatible, receptacle type
This high-speed photosensor was developed for optical fiber communication in the 0.85 µm band. This receptacle type Si PIN photodiode is compatible with GI-50 multimode optical fiber.
Features
– High-speed response: 1 GHz typ.
– GI-50 multimode optical fiber compatible
Specifications
| Photosensitive area | – |
|---|---|
| Package | Metal |
| Package category | Receptacle with FC panel |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 20 V |
| Spectral response range | 320 to 1000 nm |
| Peak sensitivity wavelength (typ.) | 760 nm |
| Photosensitivity (typ.) | 0.42 A/W |
| Dark current (max.) | 100 pA |
| Cutoff frequency (typ.) | 1000 MHz |
| Terminal capacitance (typ.) | 1.6 pF |
| Noise equivalent power (typ.) | — |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=850 nm, Dark current: VR=3.3 V, Cutoff frequency: VR=3.3 V, Terminal capacitance: VR=3.3 V, f=1 MHz, unless otherwise noted |
