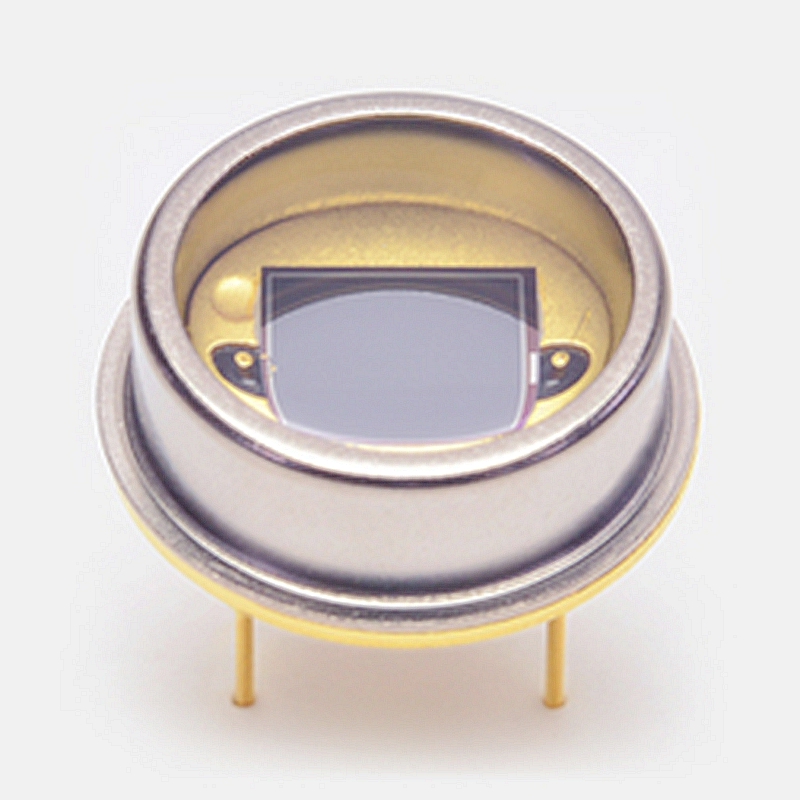

Hamamatsu S1226-8BK For UV to visible, precision photometry; suppressed near IR sensitivity

$199.00

Description

Features
– High UV sensitivity: QE＝75 % (λ=200 nm)
– Suppressed near IR sensitivity
– Low dark current
– High reliability

Specifications

Photosensitive area	5.8 × 5.8 mm
Package	Metal
Package category	TO-8
Cooling	Non-cooled
Reverse voltage (max.)	5 V
Spectral response range	320 to 1000 nm
Peak sensitivity wavelength (typ.)	720 nm
Photosensitivity (typ.)	0.36 A/W
Dark current (max.)	20 pA
Rise time (typ.)	2 μs
Terminal capacitance (typ.)	1200 pF
Noise equivalent power (typ.)	5.0×10^-15 W/Hz^1/2
Measurement condition	Ta=25 ℃, Typ., Photosensitivity: λ=720 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz, unless otherwise noted
