Description

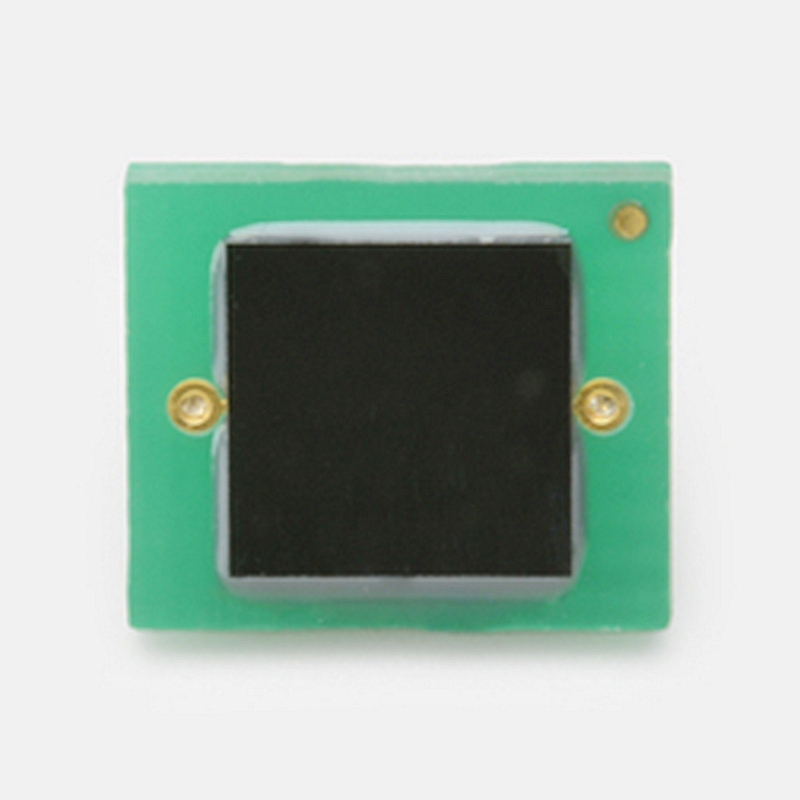

Hamamatsu S12498 A scintillator can be mounted directly on the chip



The S12498 is a Si photodiode suitable for non-destructive inspection of baggage and the like and general industrial measurement. As it is a back-illuminated photodiode, photosensitive area does not have wires, and therefore a scintillator can be mounted directly on the photodiode.

Features
– Spectral response range : 400 to 1100 nm
– Photosensitive area: 6.0 × 6.0 mm – Easy scintillator mounting



Notice

The chip of this product is not sealed and is exposed.
Parts such as electrodes on the chip are not protected by an enclosure or window and so require especially strict care during handling compared to ordinary products.



Specifications

Photosensitive area	6.0 × 6.0 mm
Package	Glass epoxy
Package category	Unsealed
Cooling	Non-cooled
Reverse voltage (max.)	10 V
Spectral response range	400 to 1100 nm
Peak sensitivity wavelength (typ.)	920 nm
Photosensitivity (typ.)	0.57 A/W
Dark current (max.)	150 pA
Rise time (typ.)	15 μs
Terminal capacitance (typ.)	380 pF
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=920 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted
