Description

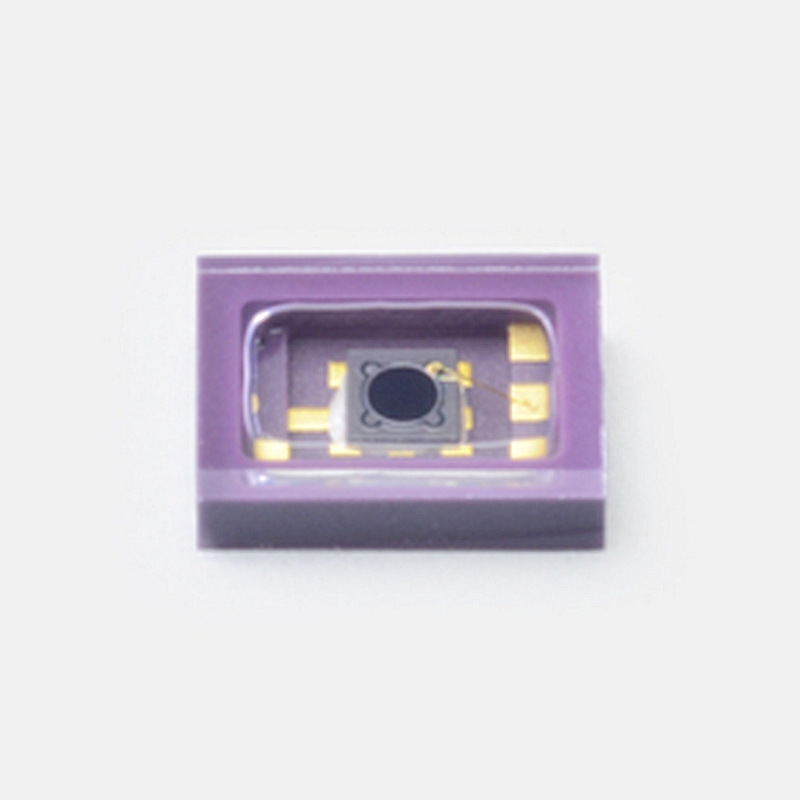

Hamamatsu S13337-01 Si PIN photodiode for UV to near infrared region
The S13337-01 is a surface mount type Si PIN photodiode in a ceramic package with glass. This achieves high-speed response in the UV to near infrared region.
Features
– High-speed response
– Surface mount type, compact, chip carrier package
– Compatible with lead-free reflow soldering
Specifications
| Photosensitive area | φ0.8 mm |
|---|---|
| Package | Ceramic |
| Package category | Surface mount type |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 20 V |
| Spectral response range | 320 to 1000 nm |
| Peak sensitivity wavelength (typ.) | 800 nm |
| Photosensitivity (typ.) | 0.57 A/W |
| Dark current (max.) | 500 pA |
| Cutoff frequency (typ.) | 500 MHz |
| Terminal capacitance (typ.) | 3 pF |
| Noise equivalent power (typ.) | 3.1×10-15 W/Hz1/2 |
| Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=10 V, Cutoff frequency: VR=10 V, RL=50 Ω, λ=830 nm, -3 dB, Terminal capacitance: VR=10 V, f=1 MHz, Noise equivalent power: VR=10 V, λ=λp, unless otherwise noted |
