Description

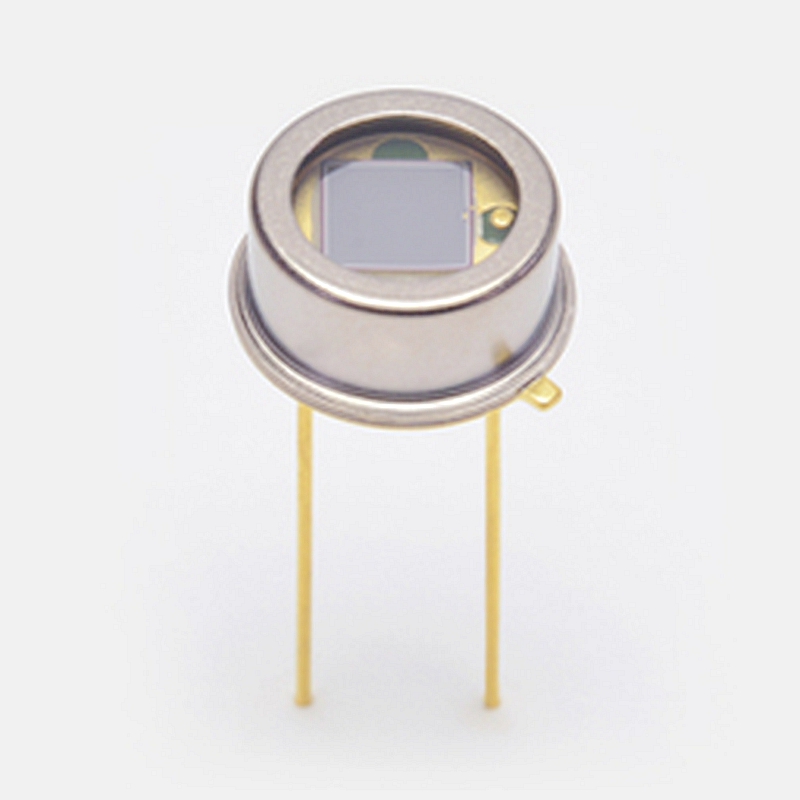

Hamamatsu S1336-44BQ UV to near IR for precision photometry
Features
– High sensitivity in UV range
– Low capacitance
– High reliability
Specifications
| Photosensitive area | 3.6 × 3.6 mm |
|---|---|
| Package | Metal |
| Package category | TO-5 |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 5 V |
| Spectral response range | 190 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.5 A/W |
| Dark current (max.) | 50 pA |
| Rise time (typ.) | 0.5 μs |
| Terminal capacitance (typ.) | 150 pF |
| Noise equivalent power (typ.) | 1.0×10-14 W/Hz1/2 |
| Measurement condition | Ta=25 ℃, Typ., unless otherwise noted, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Rise time: VR=0 V, Terminal capacitance: VR=0 V, f=10 kHz |
