Description

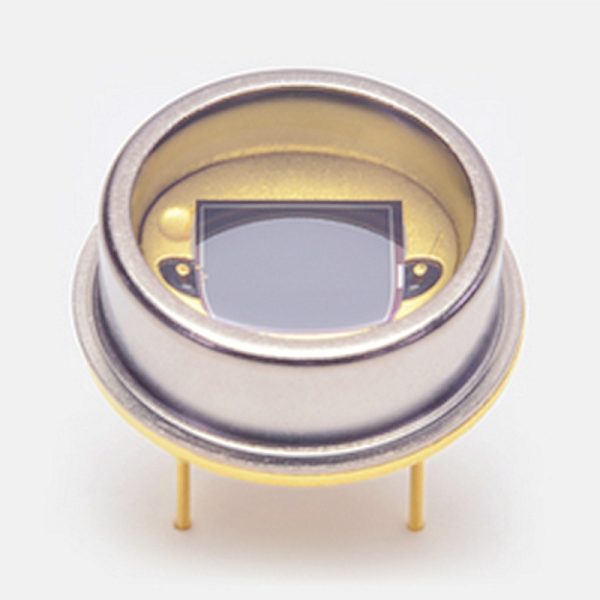

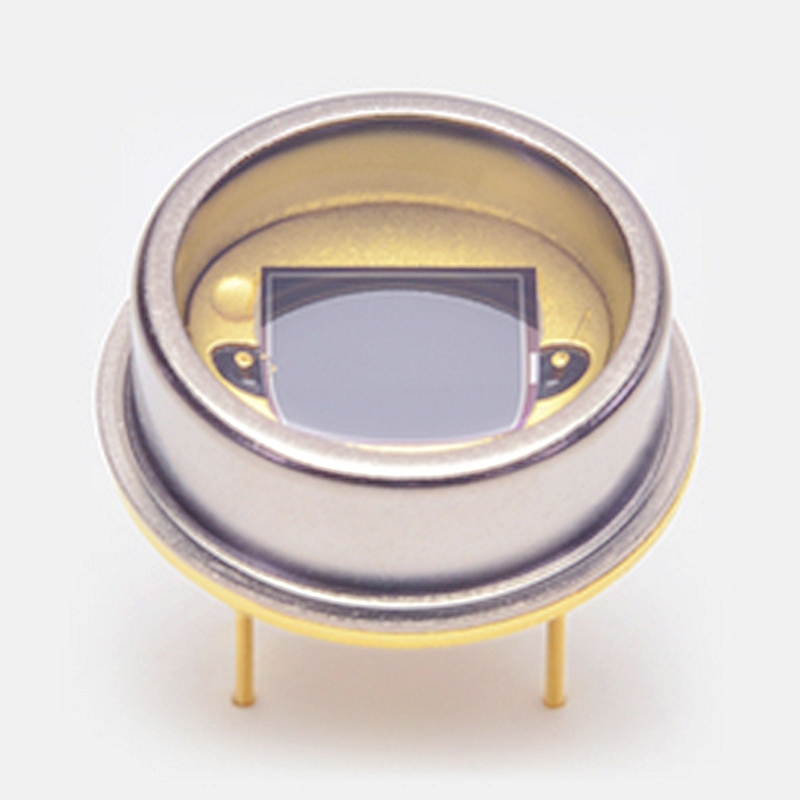

Hamamatsu S1336-8BK UV to near IR for precision photometry
Features
– High sensitivity in UV range
– Low capacitance
– High reliability
Specifications
| Photosensitive area | 5.8 × 5.8 mm |
|---|---|
| Package | Metal |
| Package category | TO-8 |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 5 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.5 A/W |
| Dark current (max.) | 100 pA |
| Rise time (typ.) | 1 μs |
| Terminal capacitance (typ.) | 380 pF |
| Noise equivalent power (typ.) | 1.3×10-14 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted |
