Description

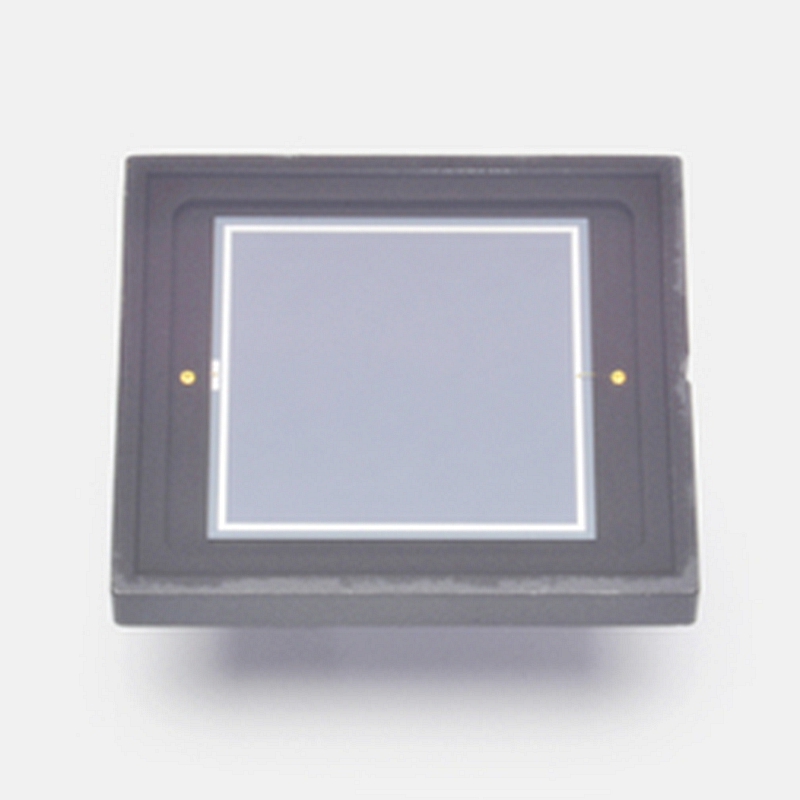

Hamamatsu S1337-1010BR For UV to IR, precision photometry
Features
– Low capacitance
Specifications
| Photosensitive area | 10 × 10 mm |
|---|---|
| Package | Ceramic |
| Package category | — |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 5 V |
| Spectral response range | 340 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.62 A/W |
| Dark current (max.) | 200 pA |
| Rise time (typ.) | 3 μs |
| Terminal capacitance (typ.) | 1100 pF |
| Noise equivalent power (typ.) | 1.5×10-14 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted |
4 pin photodiode module photosensitive module detecting light brightness
