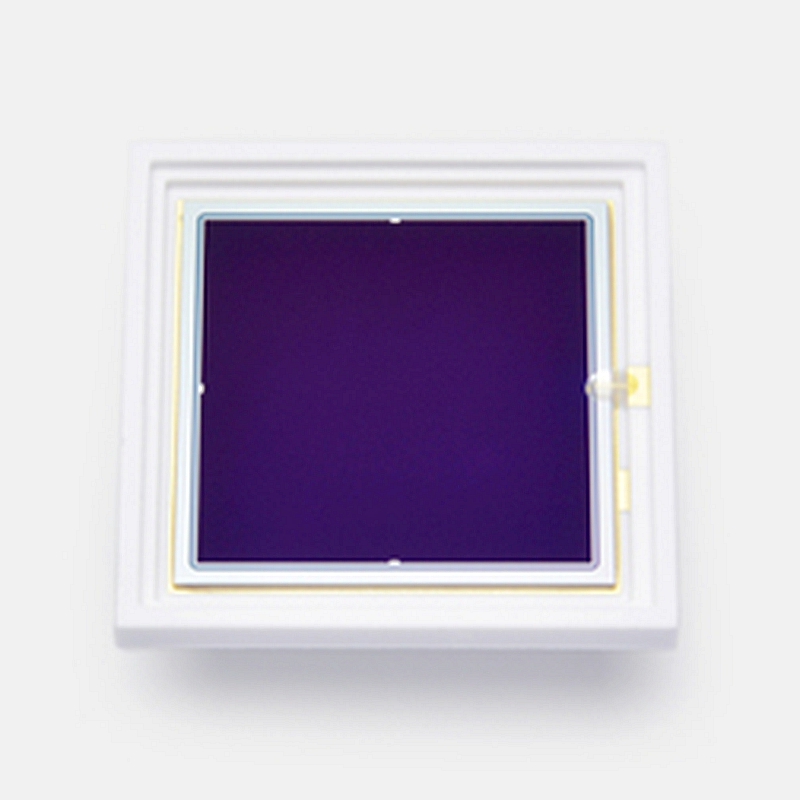

Hamamatsu S1337-21 For UV to IR, precision photometry

$199.00

Hamamatsu S1337-21 For UV to IR, precision photometry Datasheet

Hamamatsu S1337-21 For UV to IR, precision photometry

Description

Hamamatsu S1337-21 For UV to IR, precision photometry

Features
– Low capacitance



Notice

The chip of this product is not sealed and is exposed.
Parts such as electrodes on the chip are not protected by an enclosure or window and so require especially strict care during handling compared to ordinary products.



Specifications

Photosensitive area 18 × 18 mm
Package Ceramic
Package category Unsealed
Cooling Non-cooled
Reverse voltage (max.) 5 V
Spectral response range 190 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.52 A/W
Dark current (max.) 500 pA
Rise time (typ.) 8 μs
Terminal capacitance (typ.) 4000 pF
Noise equivalent power (typ.) 2.5×10-14 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted
