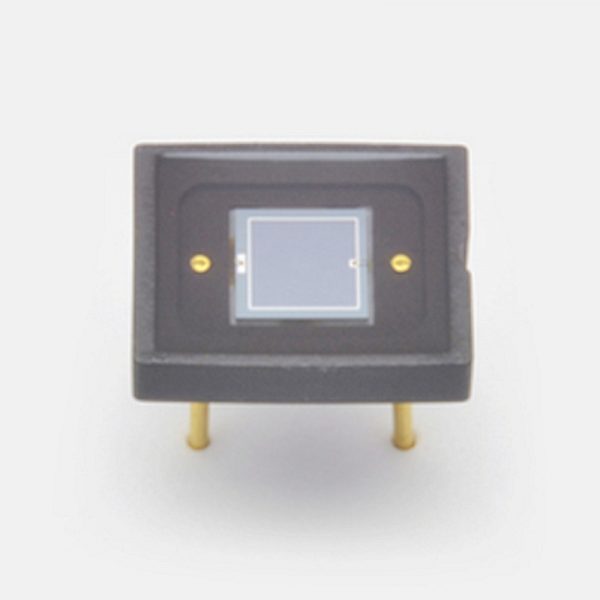

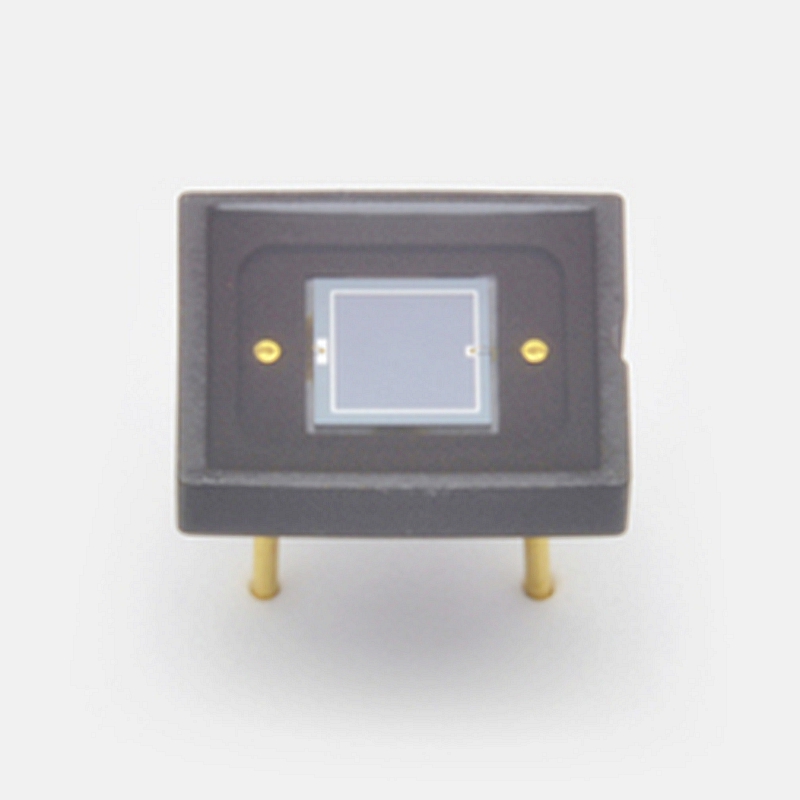

Name: Hamamatsu S1337-33BR For UV to IR, precision photometry
SKU: 53322
Price: 199.00 USD
Availability: InStock

Description

Features
– Low capacitance

Specifications

Photosensitive area	2.4 × 2.4 mm
Package	Ceramic
Package category	—
Cooling	Non-cooled
Reverse voltage (max.)	5 V
Spectral response range	340 to 1100 nm
Peak sensitivity wavelength (typ.)	960 nm
Photosensitivity (typ.)	0.62 A/W
Dark current (max.)	30 pA
Rise time (typ.)	0.2 μs
Terminal capacitance (typ.)	65 pF
Noise equivalent power (typ.)	6.5×10^-15 W/Hz^1/2
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz, unless otherwise noted
