Description

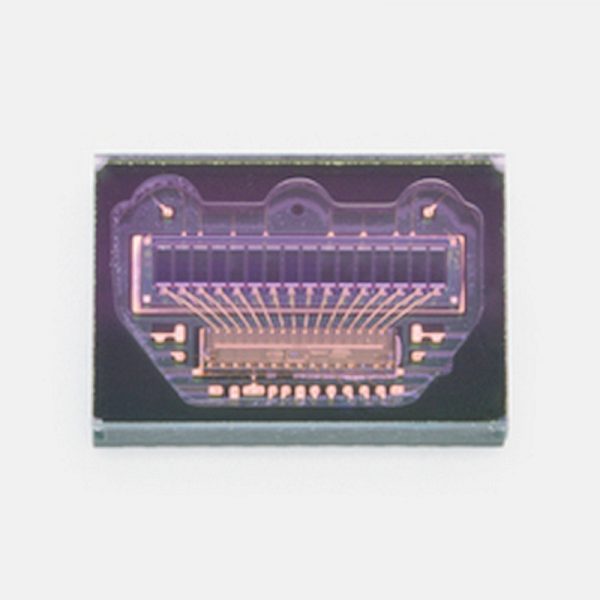

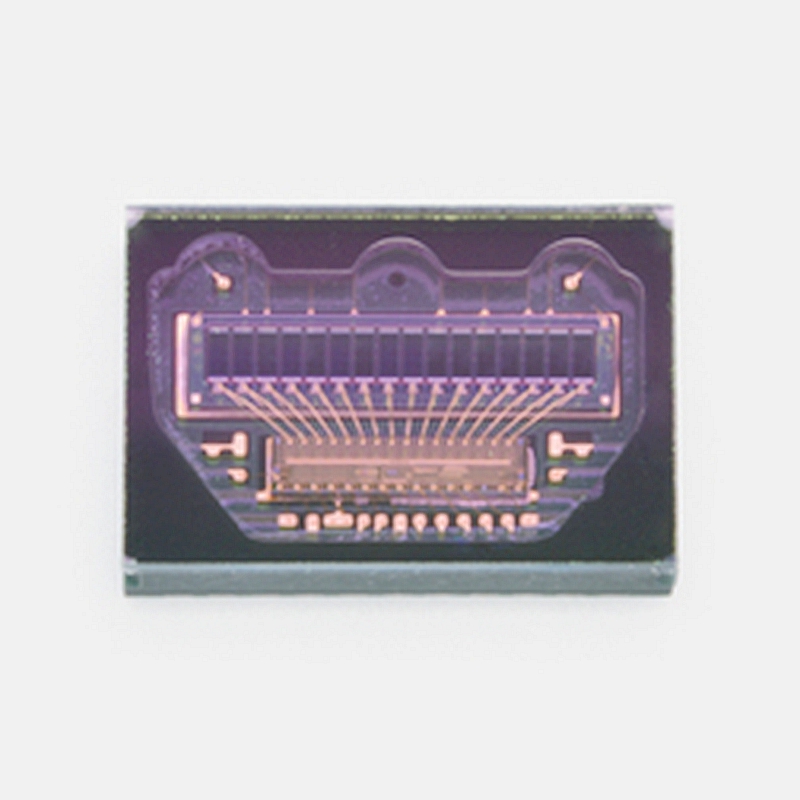

The S13645-01CR is a compact optical device that integrates 16-element Si APD array and preamp. It has a built-in DC feedback circuit for reducing the effects of background light. It also provides excellent noise and frequency characteristics. In the S13645-01CR, output can be obtained from any one channel specified in the selection logic.
Features
-High-speed response: 180 MHz
-Two-level gain switch function
(Low gain: single output, High gain: differential output)
-Reduced background light effects
-No waveform distortion when excessive light is incident
Specifications
| Package | Plastic |
|---|---|
| Number of channel | 16 ch |
| Photosensitive area/ch | 1.0 × 0.4 mm |
| Spectral response range | 400 to 1150 nm |
| Peak sensitivity wavelength | 840 nm |
| Photosensitivity | 900 kV/W |
| High Band Cut-off Frequency | 180 MHz |
| Note | Photosensitivity: High gain, λ=905 nm, M=50 High cutoff frequency: Low gain |
