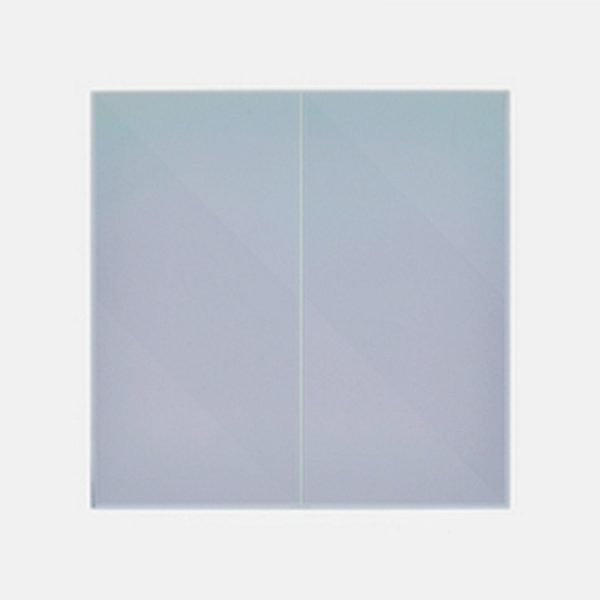

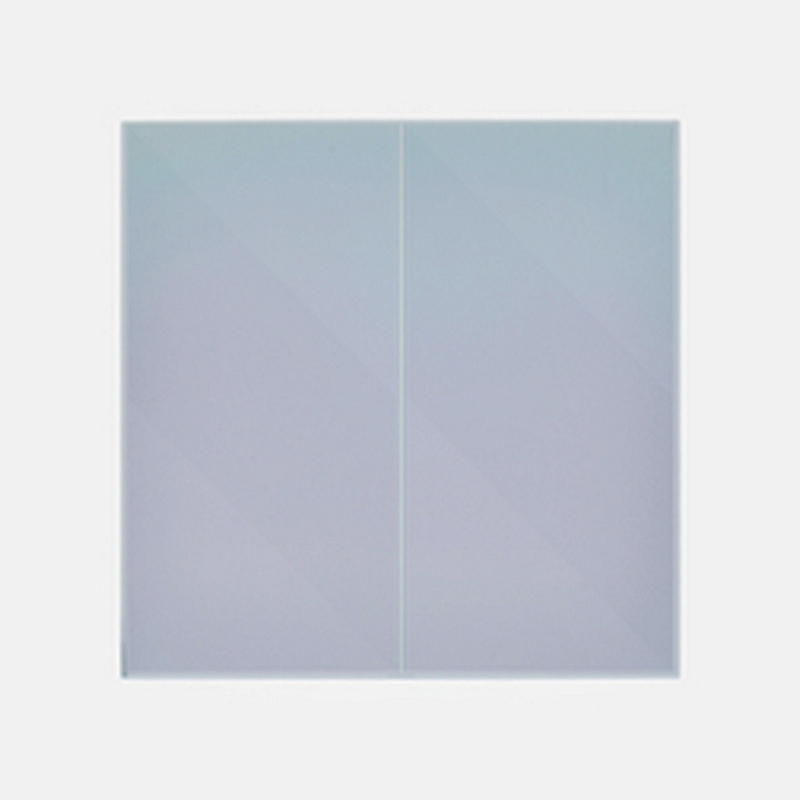

Hamamatsu S13804 Single-sided SSD for high energy particle position detection
The Si strip detector (SSD) is a Si photodiode with PN junctions (particle detection structures) that are several micrometers to several tens of micrometers in width arranged in a strip formation. Developed specifically for the J-PARC muon g-2/EDM experiment*, this SSD can detect precise incident positions of high-energy particles with remarkable accuracy. It has an active area of about 97 × 97 mm and can detect positions over a wide area.
Features
– High voltage tolerance
– High radiation tolerance
– Low dark current
Specifications
| Type | Poly Si-bias AC-readout |
|---|---|
| Si thickness | 320 ±15 μm |
| Si crystal plane direction | <100> |
| Breakdown voltage min. | 200 V |
| Dark current max. | 3 μA |
| Full depletion voltage max. | 100 V |
| Defective strip rate max. | 5 % |
