Hamamatsu S13954-01CT Applicable to lead-free solder reflow and wide temperature range

$199.00

Hamamatsu S13954-01CT Applicable to lead-free solder reflow and wide temperature range Datasheet

Hamamatsu S13954-01CT Applicable to lead-free solder reflow and wide temperature range

Description

Hamamatsu S13954-01CT Applicable to lead-free solder reflow and wide temperature range

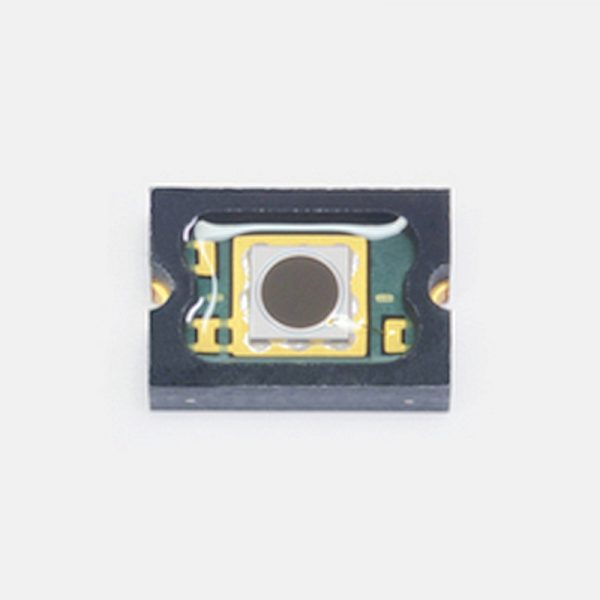

The S13954-01CT is a photodiode that is applicable to lead-free solder reflow and has an extremely wide operating and storage temperature range (-40 to +125 °C). A high-speed response (230 MHz typ.) is achieved.

Features
– Suitable for lead-free solder reflow
– Surface mount type, small and thin leadless package
– Operating/storage temperature: -40 to +125 °C
– Photosensitive area: ϕ1.5 mm
– High-speed response: 230 MHz   (VR=3 V, RL=50 Ω, λ=650 nm, -3 dB)



Specifications

Photosensitive area φ1.5 mm
Package Glass epoxy
Package category Surface mount type
Cooling Non-cooled
Reverse voltage (max.) 10 V
Spectral response range 320 to 1000 nm
Peak sensitivity wavelength (typ.) 780 nm
Photosensitivity (typ.) 0.49 A/W
Dark current (max.) 1000 pA
Cutoff frequency (typ.) 230 MHz
Terminal capacitance (typ.) 13 pF
Measurement condition Ta=25 ℃, Typ., unless otherwise noted,
Photosensitivity: λ=λp, Dark current: VR=3 V, Cutoff frequency: VR=3 V, RL=50 Ω, Terminal capacitance: VR=3 V, f=1 MHz
