Description

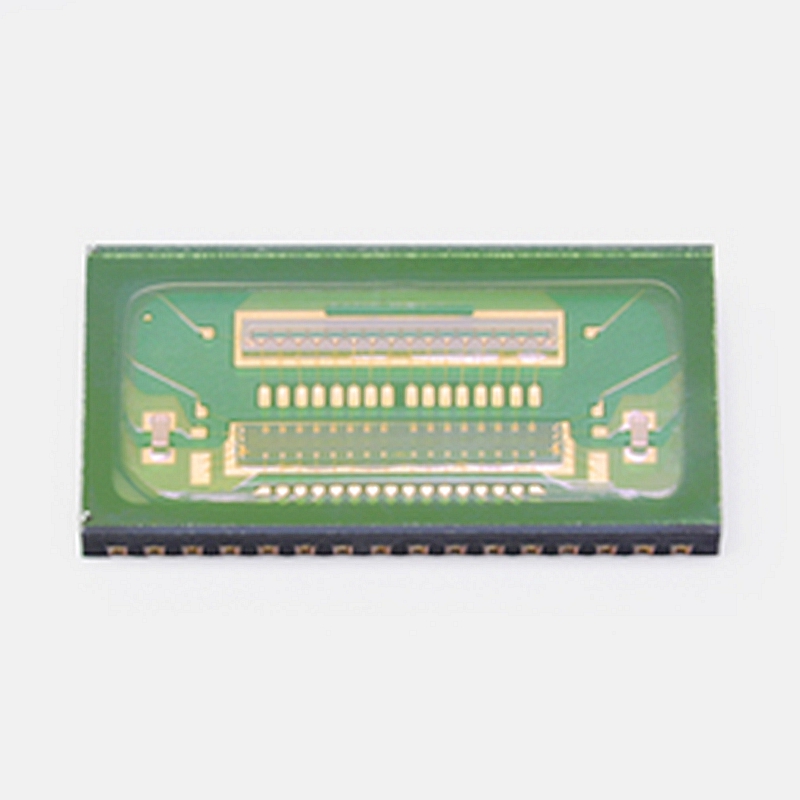

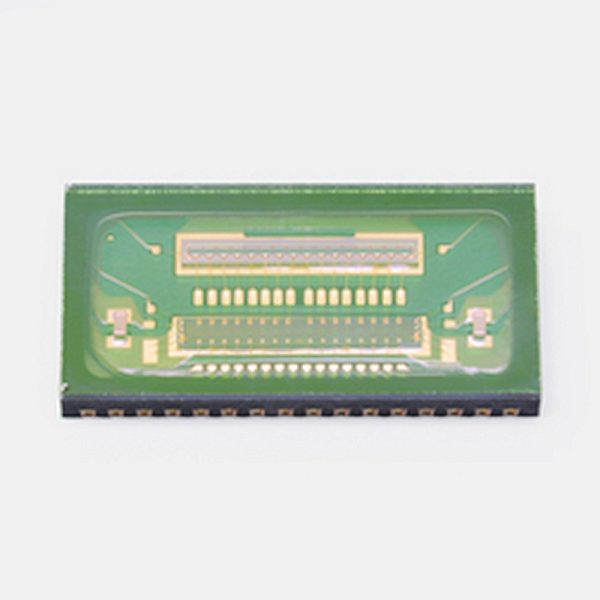

The S14137-01CR is a compact optical device that integrates a 16-element APD array and a preamp. The incident light pulse is converted into a voltage pulse, and then the converted pulse is output. It has a built-in DC feedback circuit for reducing the effects of background light. The parallel output 16-element array enables simultaneous measurement of all pixels.
Features
-16 ch parallel output
-High-speed response: 180 MHz
-Reduced background light effects
-No waveform distortion when excessive light is incident
Specifications
| Package | Plastic |
|---|---|
| Number of channel | 16 ch |
| Photosensitive area/ch | 0.15 × 0.43 mm |
| Spectral response range | 420 to 1150 nm |
| Peak sensitivity wavelength | 840 nm |
| Photosensitivity | 36 kV/W |
| High Band Cut-off Frequency | 180 MHz |
| Note | Photosensitivity: λ=905 nm, M=50 |
