Description

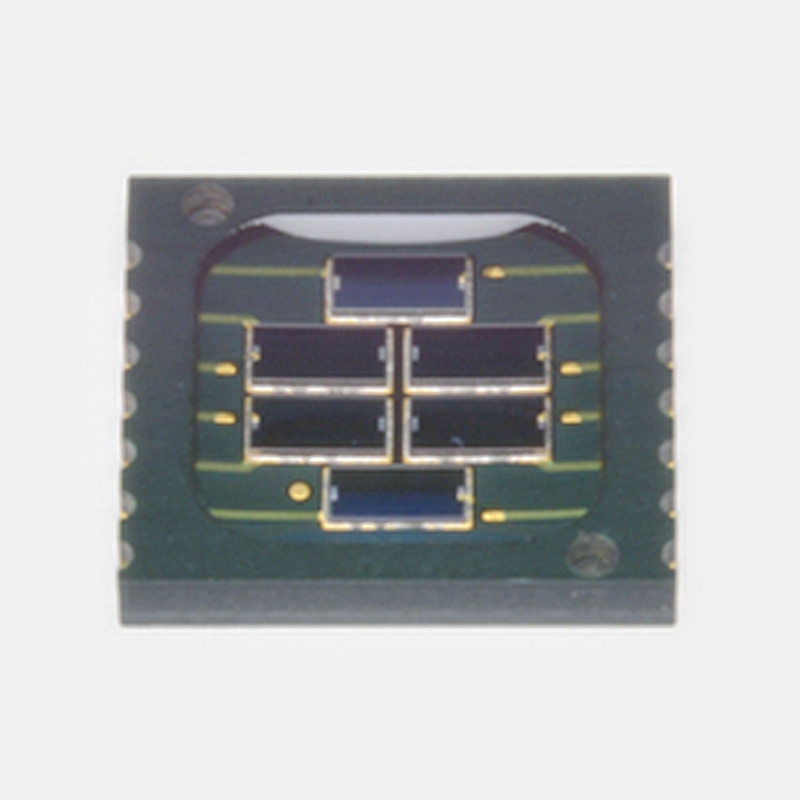

Hamamatsu S14833 6-element array for encoders
The S14833 is a surface mount type 6-element Si PIN photodiode array. Each of the six element is separated, and their arrangement is suitable for encoders.
Features
-High sensitivity
-Surface mountable chip carrier package
-Compatible with lead-free solder reflow
Specifications
| Element size (per 1 element) | 2.76 × 1.37 mm |
|---|---|
| Number of elements | 6 |
| Package | Glass epoxy |
| Package category | Surface mount |
| Scintillator type | None |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 30 V |
| Spectral response range | 340 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.68 A/W |
| Dark current (max.) | 5000 pA |
| Terminal capacitance (typ.) | 9 pF |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted per one element |
