Description

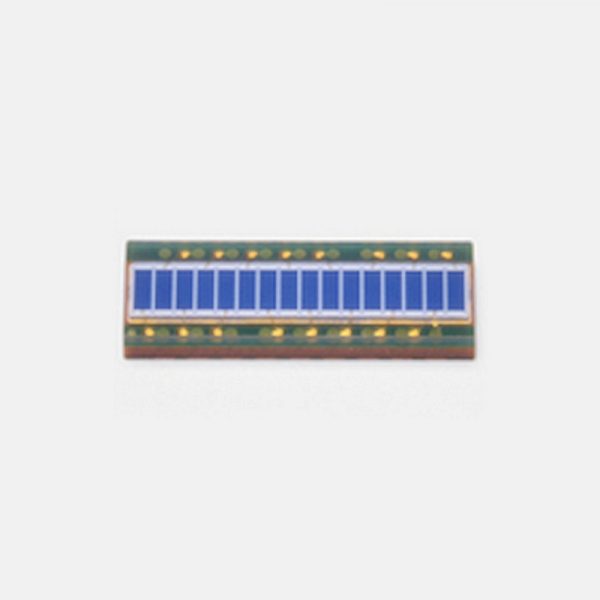

Hamamatsu S15158 Surface mountable 16-element array
The S15158 is a 16-element Si PIN photodiode array in surface mountable chip carrier package. It can be mounted using solder reflow and used in a wide variety of applications such as spectrophotometers and distance measurement.
Features
-Photosensitive area: 0.7 × 2.0 mm (× 16 elements)
-Surface mountable chip carrier package
-Compatible with lead-free solder reflow
-High sensitivity
Specifications
| Element size (per 1 element) | 0.7 × 2.0 mm |
|---|---|
| Number of elements | 16 |
| Package | Glass epoxy |
| Package category | Surface mount |
| Scintillator type | None |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 30 V |
| Spectral response range | 380 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.63 A/W |
| Dark current (max.) | 10000 pA |
| Terminal capacitance (typ.) | 60 pF |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted per one element, Photosensitivity: λ=λp, Dark current: VR=10 V, all 16 elements, Terminal capacitance: VR=10 V, f=10 kHz, all 16 elements |
