Description

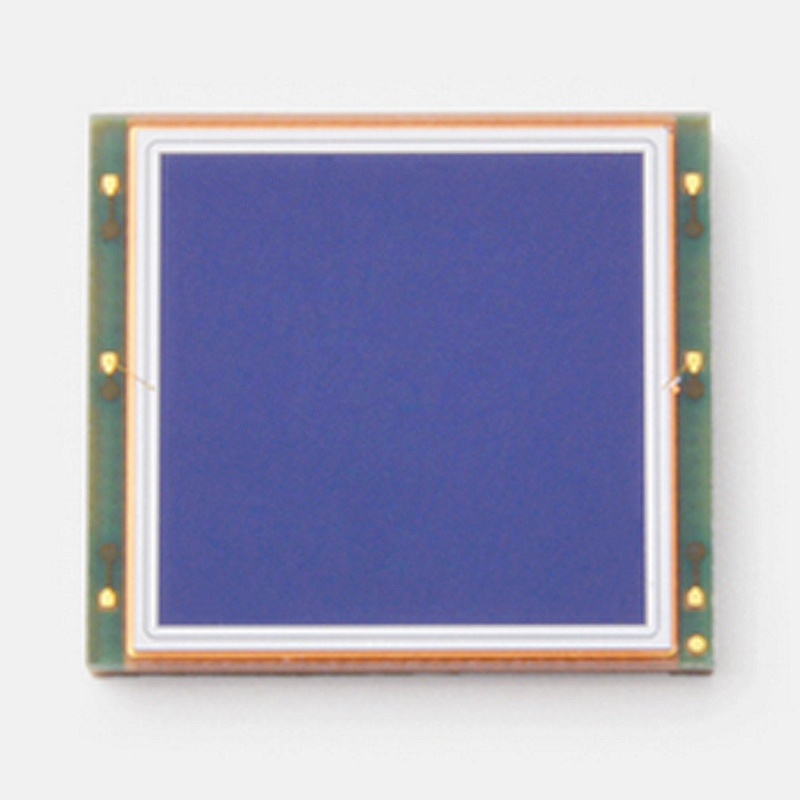

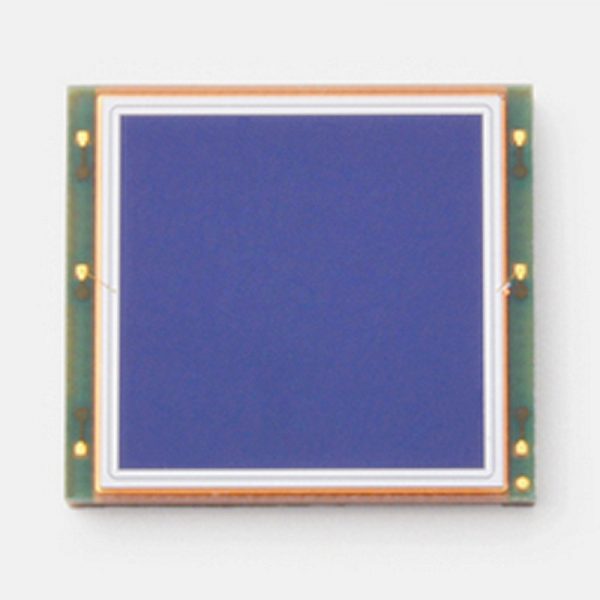

Hamamatsu S16008-1010 Si photodiode for visible to near infrared region
The S16008 series is a surface mount type Si photodiode with high sensitivity in the visible to near infrared region. This provides higher sensitivity than the previous S2387 series.
Features
– High sensitivity in visible to near infrared region
– Low dark current
– Superior linearity
– Compatible with lead-free solder reflow
Specifications
| Photosensitive area | 10 × 10 mm |
|---|---|
| Package | Glass epoxy |
| Package category | Surface mount type |
| Cooling | Non-cooled |
| Spectral response range | 380 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.64 A/W |
| Dark current (max.) | 200 pA |
| Rise time (typ.) | 29 μs |
| Terminal capacitance (typ.) | 13 nF |
| Noise equivalent power (typ.) | 2.8×10-15 W/Hz1/2 |
| Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=10 mV, Rise time: VR=0 V, RL=1 kΩ, 10 to 90%, Terminal capacitance: VR=0 V, f=10 kHz, Noise equivalent power: VR=0 V, λ=λp, unless otherwise noted |
