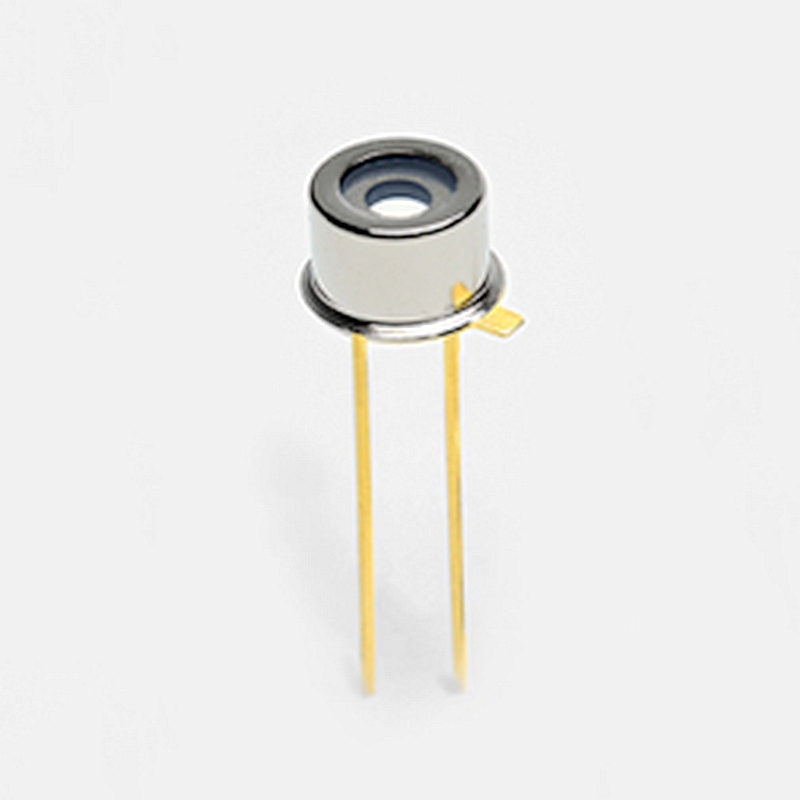

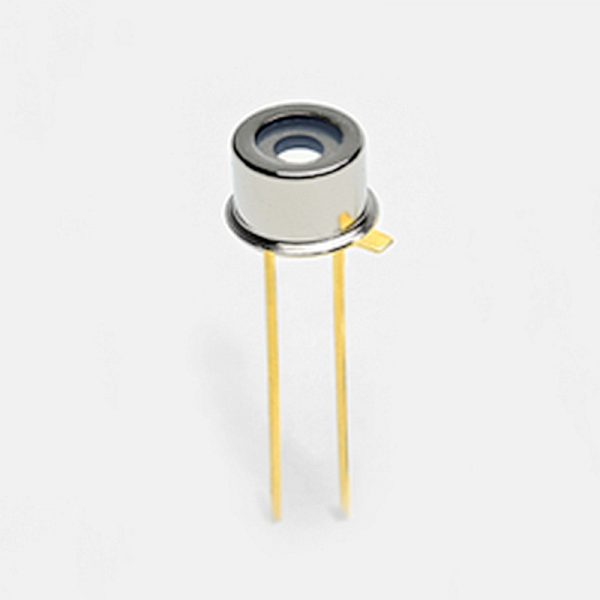

Hamamatsu S16014-220 Photodiode with band-pass filter for monochromatic light (220 nm) detection
S16014-220 is a photodiode that has a built-in band-pass filter and is sensitive only to monochromatic light. The peak wavelength is 220 nm typ. The spectral response width is extremely narrow at 11 nm (FWHM), allowing accurate photometry without any effects of stray light. It can be customized to support other peak sensitivity wavelength such as 340 nm and 560 nm.
Features
– With monochromatic light filter
– Narrow spectral response half width (FWHM)
– Small package: TO-18
Specifications
| Photosensitive area | 1.1 × 1.1 mm |
|---|---|
| Package | Metal |
| Package category | TO-18 with filter |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 5 V |
| Spectral response range | 216 to 224 nm |
| Peak sensitivity wavelength (typ.) | 220 nm |
| Photosensitivity (typ.) | 0.006 A/W |
| Dark current (max.) | 10 pA |
| Rise time (typ.) | 0.1 μs |
| Terminal capacitance (typ.) | 25 pF |
| Noise equivalent power (typ.) | 2.3×10-13 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=220 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, Noise equivalent power: VR=0 V, λ=λp, unless otherwise noted |
