Description

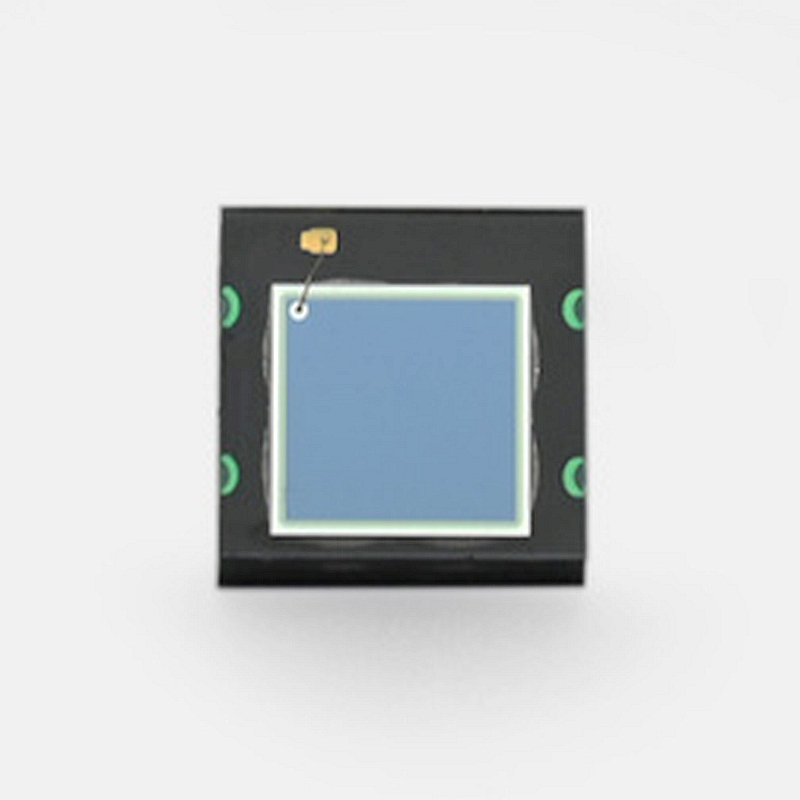

Hamamatsu S16392-01CT COB type, applicable to lead-free solder reflow
The S16392-01CT is a Si PIN photodiode for visible to near infrared range and is compatible with lead-free solder reflow processes. The small and thin leadless package allows reducing the mount area on a printed circuit board.
Features
– COB type, small and thin leadless package
– Photosensitive area: 2.77 × 2.77 mm
– High sensitivity: 0.7 A/W (λ=960 nm)
Specifications
| Photosensitive area | 2.77 × 2.77 mm |
|---|---|
| Package | Glass epoxy |
| Package category | Surface mount type |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 20 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.7 A/W |
| Dark current (max.) | 10000 pA |
| Cutoff frequency (typ.) | 25 MHz |
| Terminal capacitance (typ.) | 15 pF |
| Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=960 nm, Dark current: VR=12 V, Cutoff frequency: VR=12 V, Terminal capacitance: VR=12 V, f=1 MHz, unless otherwise noted |
