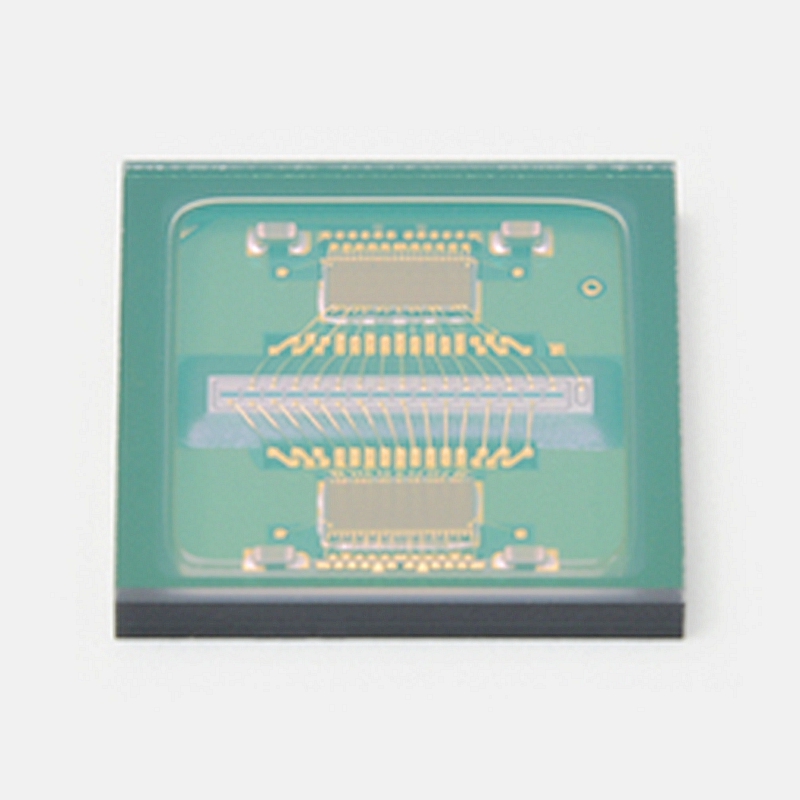

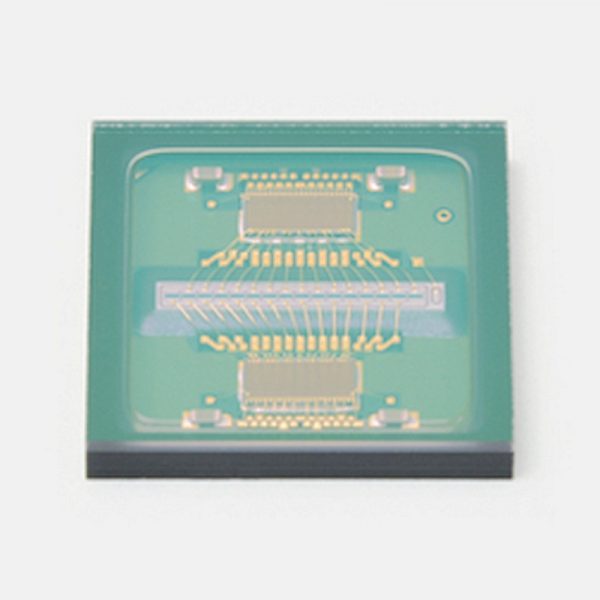

Hamamatsu S16430-01CR Built-in 16-element gain-stabilized APD array suitable for short pulse light detection (parallel output)

$199.00

Hamamatsu S16430-01CR Built-in 16-element gain-stabilized APD array suitable for short pulse light detection (parallel output)

Hamamatsu S16430-01CR Built-in 16-element gain-stabilized APD array suitable for short pulse light detection (parallel output)

Description

Hamamatsu S16430-01CR Built-in 16-element gain-stabilized APD array suitable for short pulse light detection (parallel output)



This device is for direct TOF (time-of-flight) distance measurement, integrating a 16 ch Si APD array and a transimpedance amplifier. A gain-stabilized APD (GS APD) is used, and there is little gain fluctuation relative to temperature fluctuation, so there is no need for a temperature sensor or microcontroller. It has an increased high-band cutoff frequency (300 MHz) of the transimpedance amplifier compared to previous products, realizing high-speed response.

Features
– 16 ch parallel output
– Stable gain against temperature fluctuations
– No gain adjustment according to individual differences required
– Built-in high-speed transimpedance amplifier: 300 MHz
– Low noise
– No ringing
– Low crosstalk



Specifications

Package Glass epoxy
Number of channel 16 ch
Photosensitive area/ch 0.15 × 0.45 mm
Spectral response range 400 to 1100 nm
Peak sensitivity wavelength 840 nm
Photosensitivity 0.5 A/W
High Band Cut-off Frequency 300 MHz
Note Photosensitivity: λ=905 nm, M=1
