Description

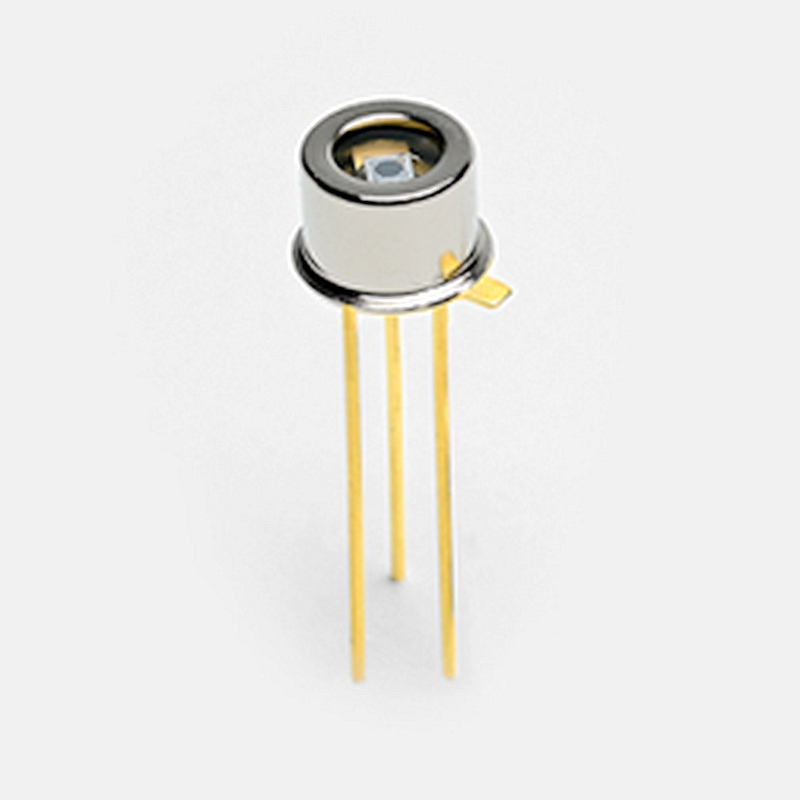

Hamamatsu S16586 High UV resistance, high-speed response, photodiodes for UV monitor
The S16586 is a high-speed response Si PIN photodiode that has achieved high reliability for monitoring ultraviolet light. They exhibit low sensitivity deterioration under UV light irradiation and are suitable for applications such as monitoring intense UV light sources.
Features
– With UV glass window (hermetically sealed)
– High sensitivity in UV region
– High-speed response
– High reliability for monitoring UV light irradiation
– Resin material not used
Specifications
| Photosensitive area | φ0.8 mm |
|---|---|
| Package | Metal |
| Package category | TO-18 |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 30 V |
| Spectral response range | 190 to 1000 nm |
| Peak sensitivity wavelength (typ.) | 780 nm |
| Photosensitivity (typ.) | 0.38 A/W |
| Dark current (max.) | 15 pA |
| Cutoff frequency | 300 MHz*1 500 MHz*2 |
| Terminal capacitance (typ.) | 3.5 pF |
| Noise equivalent power (typ.) | 5.8×10-15 W/Hz1/2 |
| Measurement condition | Ta=25 ℃, Photosensitivity: λ=780 nm, Dark current: VR=10 V, Cutoff frequency: *1 VR=10 V, *2 VR=20 V, Terminal capacitance: VR=10 V, f=1 MHz, Noise equivalent power: VR=10 V, λ=λp, unless otherwise noted |
